Data sheet: XSBR1B
Data sheet

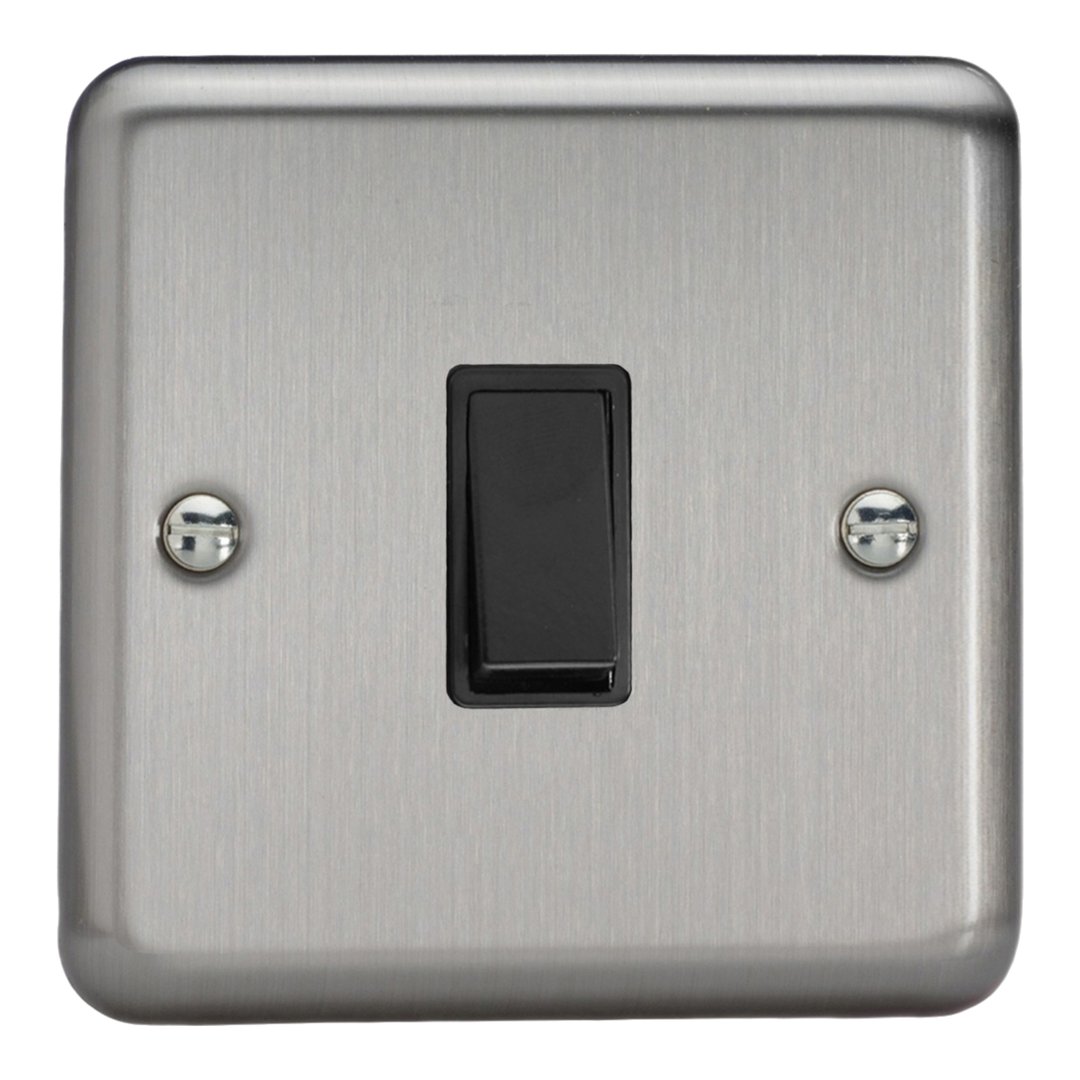

XSBR1B 1-Gang 10A Retractive Switch
Single Push Retractive Switch
Product features
- Retractive push to make switch that springs back when released
- For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
- Install a V-Pro Micro Push Control In-Line Dimmer Pack behind the switch for intelligent LED dimming with nothing on the wall but the switch itself.
- 10A rated
- Raised profile faceplate, 7mm deep with chrome screws, fits a 16mm back box
Product
- Product code
- XSBR1B
- Category
- Rocker Switches
- Range
- Value
- Finish
- Matt Chrome
- Insert / knob colour
- Black Rocker
- Barcode
- 5021575022780
Size and fitting

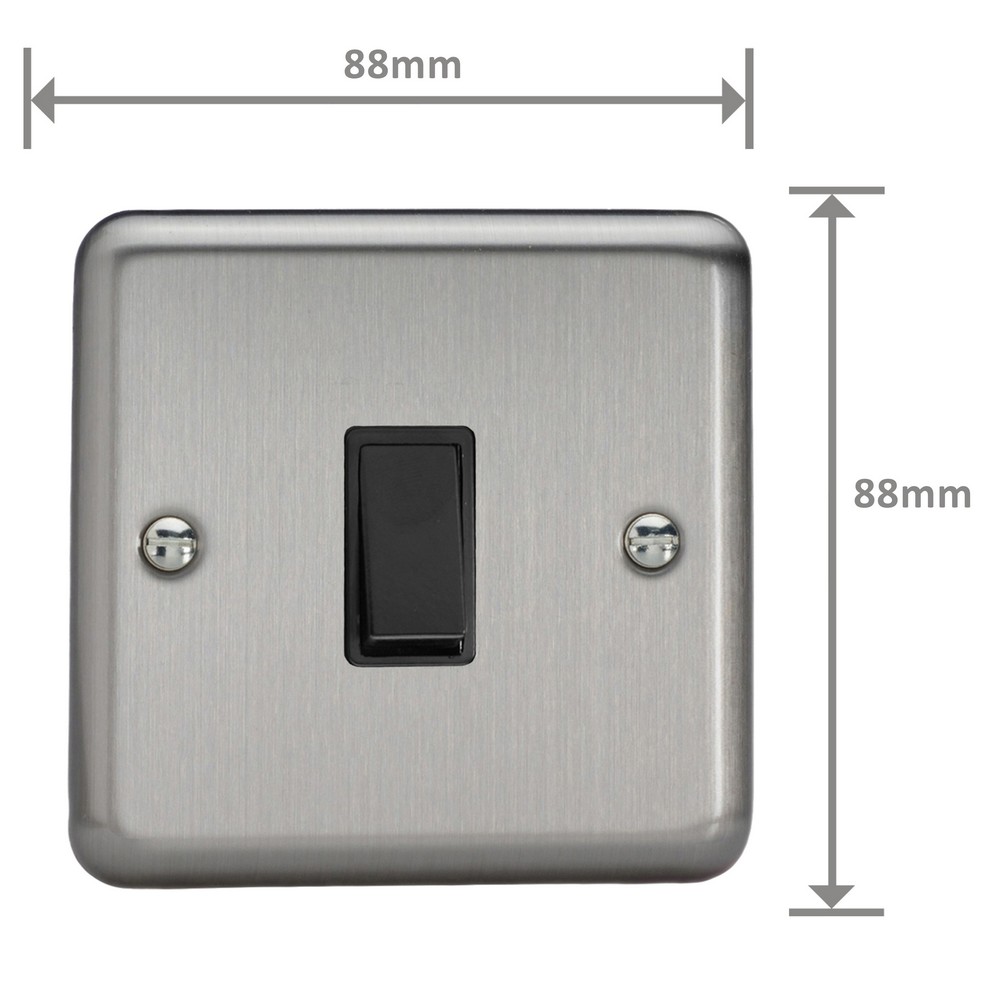

- Dimensions
- 88x88x25mm
- Faceplate depth
- 7mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 10.8mm
- Recommended back box depth
- 16mm
- Net weight
- 96g
- Gross weight
- 98g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 10A
- Maximum current rating
- 10A
- Terminal (Live)
- 3.3mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS EN 60669-1
- Commodity code
- 85365007
Value collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.
Matt Chrome finish
Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
