Data sheet: XSM2

2-Gang 6A 1-Way Push-to-Make Momentary Switch, Value Matt Chrome (XSM2)

Data sheet

XSM2 2-Gang 6A 1-Way Push-to-Make Momentary Switch

Range Value Finish Matt Chrome

Product features

Momentary push to make switch that springs back when released
For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
6A rated
Springs back when released
Raised profile faceplate, 7mm deep with chrome screws, fits a 16mm back box

Product

Product code: XSM2
Category: Retractive Switches
Range: Value
Finish: Matt Chrome
Insert / knob colour: Chrome Buttons
Barcode: 5021575832167

Size and fitting

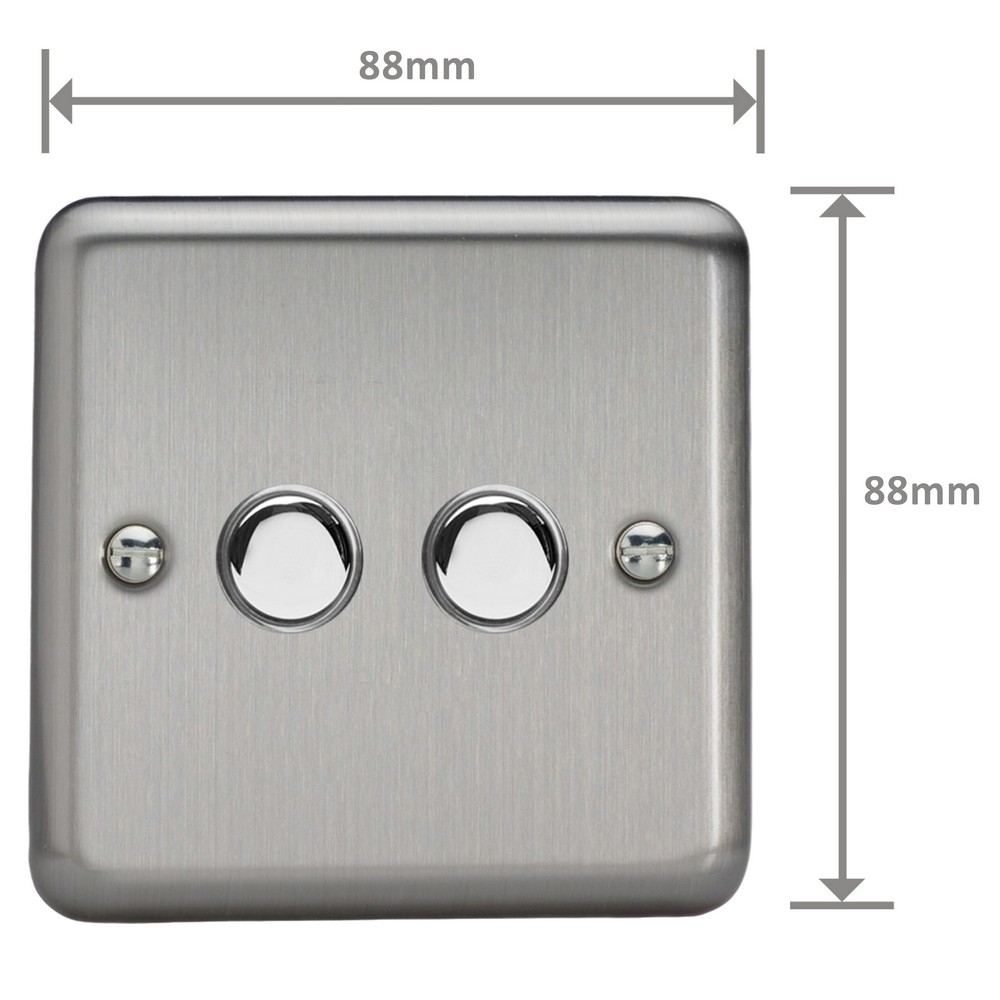

Dimensions: 88x88x23mm
Faceplate depth: 7mm
Fixing centres: 60.3mm
Depth from mounting face: 11.1mm
Recommended back box depth: 16mm
Net weight: 126g
Gross weight: 128g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 6A
Maximum current rating: 6A

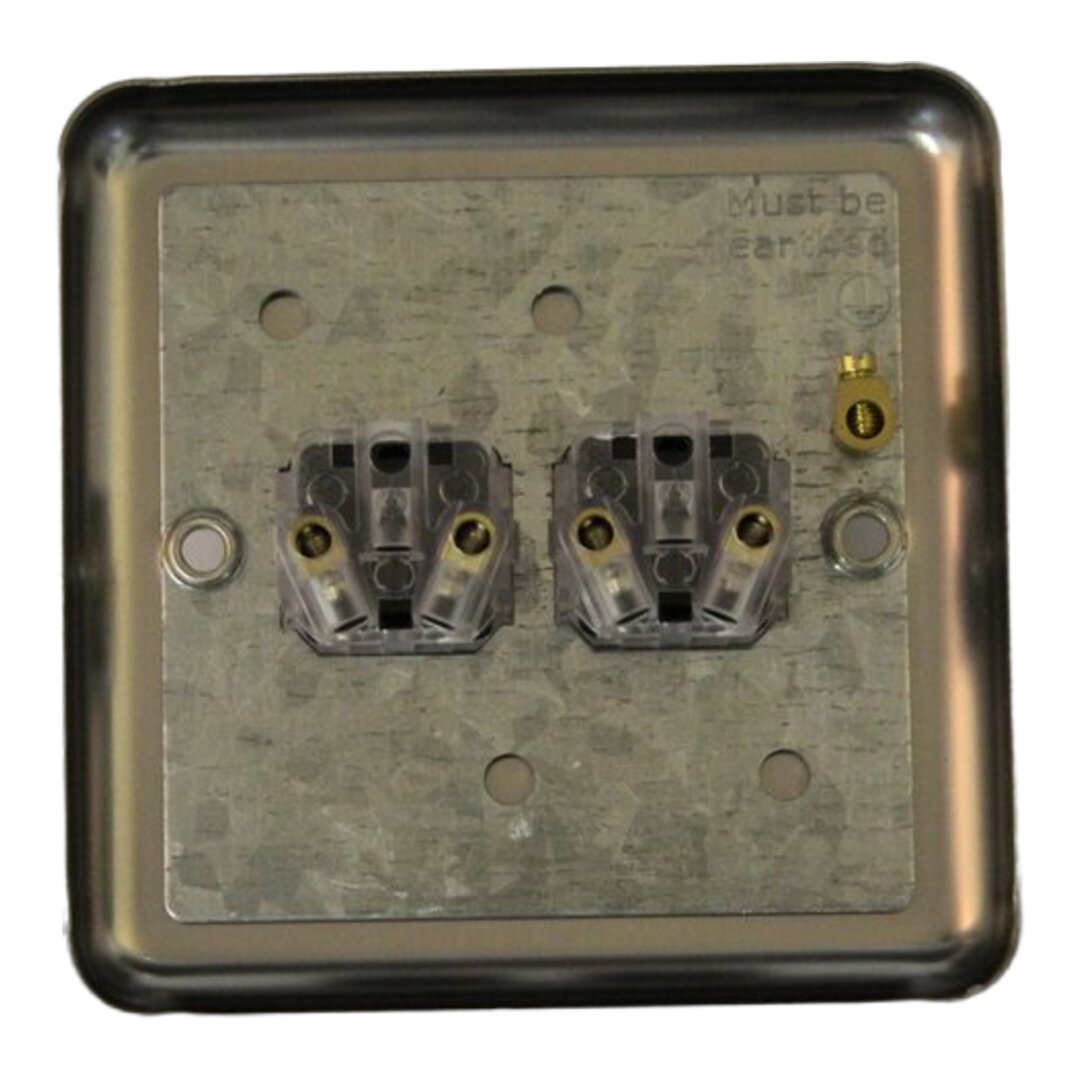

Terminal (Live): 3mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 61058-1
Commodity code: 85365011

Declaration of Conformity

Value collection

The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

Matt Chrome finish

Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 21st October 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
