Click below to print the data sheet for XYM2.MB
Further information:
Data Sheet
Product Code: XYM2.MB
This product is made to order
Product Description: 2-Gang 6A 1-Way Push-to-Make Momentary Switch
Range: Urban
Finish: Matt Black
Product Category: Retractive Switches
Insert/Knob Colour: Iridium Buttons
Barcode: 5021575001648

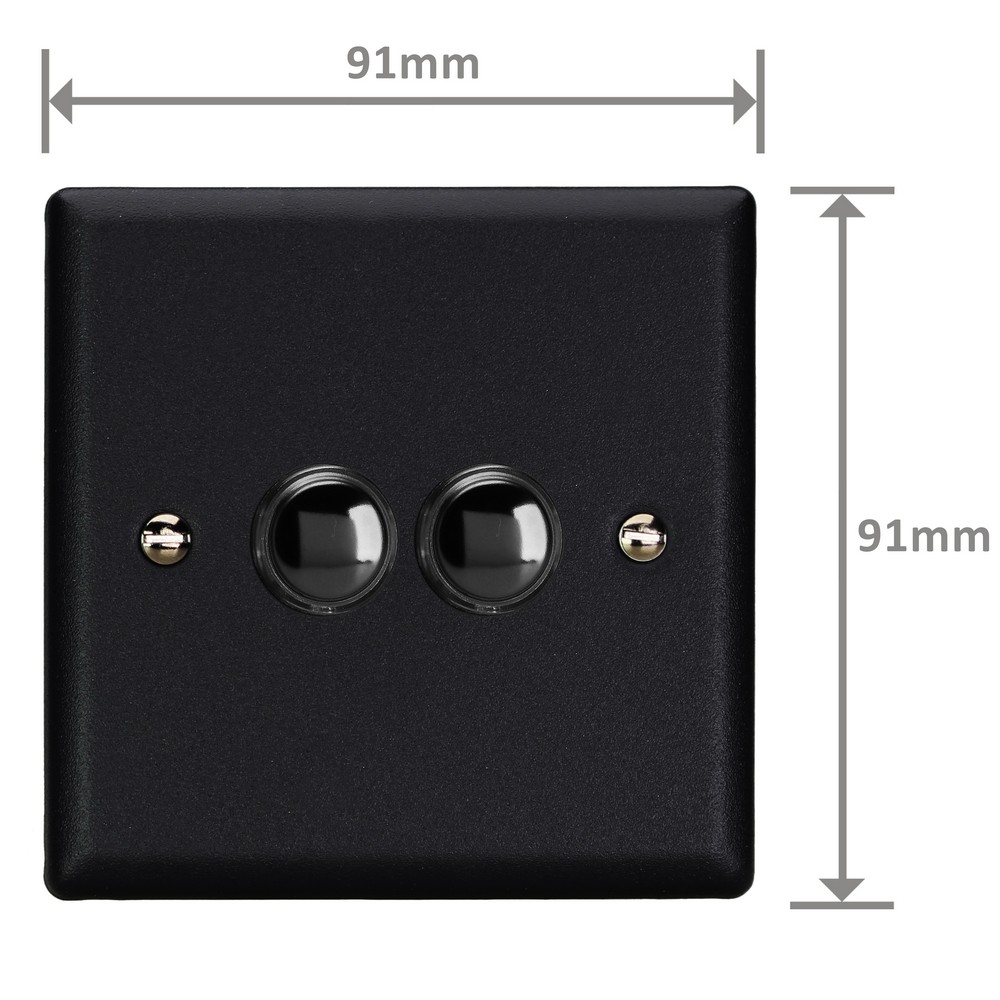

Dimensions: 91x91x23mm
Faceplate Depth: 8mm
Net Weight: 126g
Gross Weight: 128g
Fixing Centres: 60.3mm
Depth from Mounting Face: 11.5mm
Recommended Back Box Depth: 16mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 6A
Maximum Current Rating: 6A
Terminal (Live) Diameter: 3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Momentary push to make switch
For use with blinds, bells and applications where a momentary electric signal is required
Bevelled edge faceplate

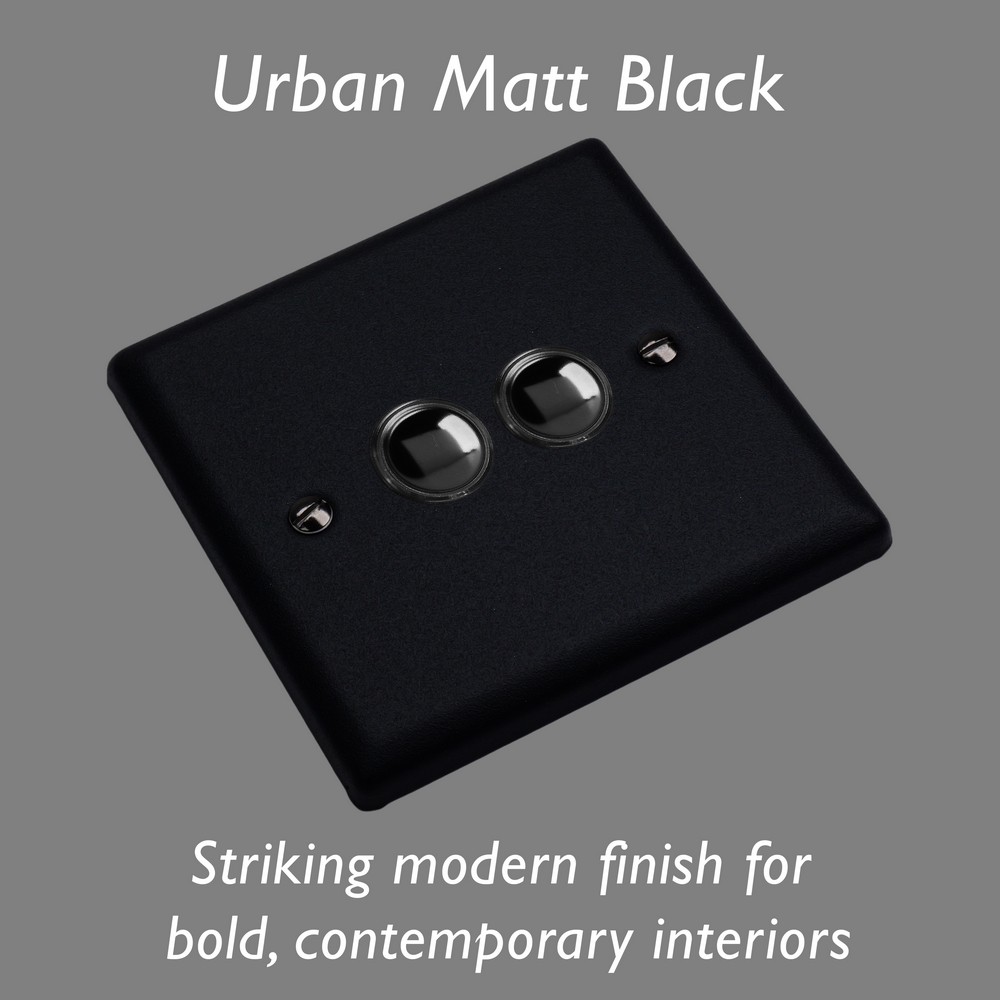

Urban Collection
The Varilight Urban range is a premium collection, inspired by the latest trends in interior design, bringing an Urban edge to stylish spaces. Each finish is presented on a contemporary bevel-edge plate style, which is expertly manufactured in the UK to the highest standard.Matt Black Finish
The Matt Black finish is powder-coated to give a tactile, textured finish, which is tough, durable and resistant to fingerprints and is offered with black plastic inserts and matching black screws. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 61058-1
Commodity Code: 85365011
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 21st June 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
