Data sheet: XSPGY2

2-Gang PowerGrid Plate including Yoke (Single Plate), Value Matt Chrome (XSPGY2)

Data sheet

XSPGY2 2-Gang PowerGrid Plate including Yoke (Single Plate)

Range Value Finish Matt Chrome

Product features

Build the exact switch combination the room needs
Supplied with the grid frame pictured below
Choose exactly the PowerGrid modules you need
Modules purchased separately
Raised profile faceplate, 11mm deep with chrome screws, fits a 25mm back box

Product

Product code: XSPGY2
Category: Grid Faceplates
Range: Value
Finish: Matt Chrome
Barcode: 5021575007350

Size and fitting

Dimensions: 86x86x7mm
Faceplate depth: 11mm
Fixing centres: 60.3mm
Depth from mounting face: Module Dependent
Recommended back box depth: 25mm
Net weight: 76g
Gross weight: 78g

Electrical

Terminal (Earth): 5.4mm, capacity 4 x 2.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 60669
Commodity code: 85389091

Declaration of Conformity

Value collection

The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

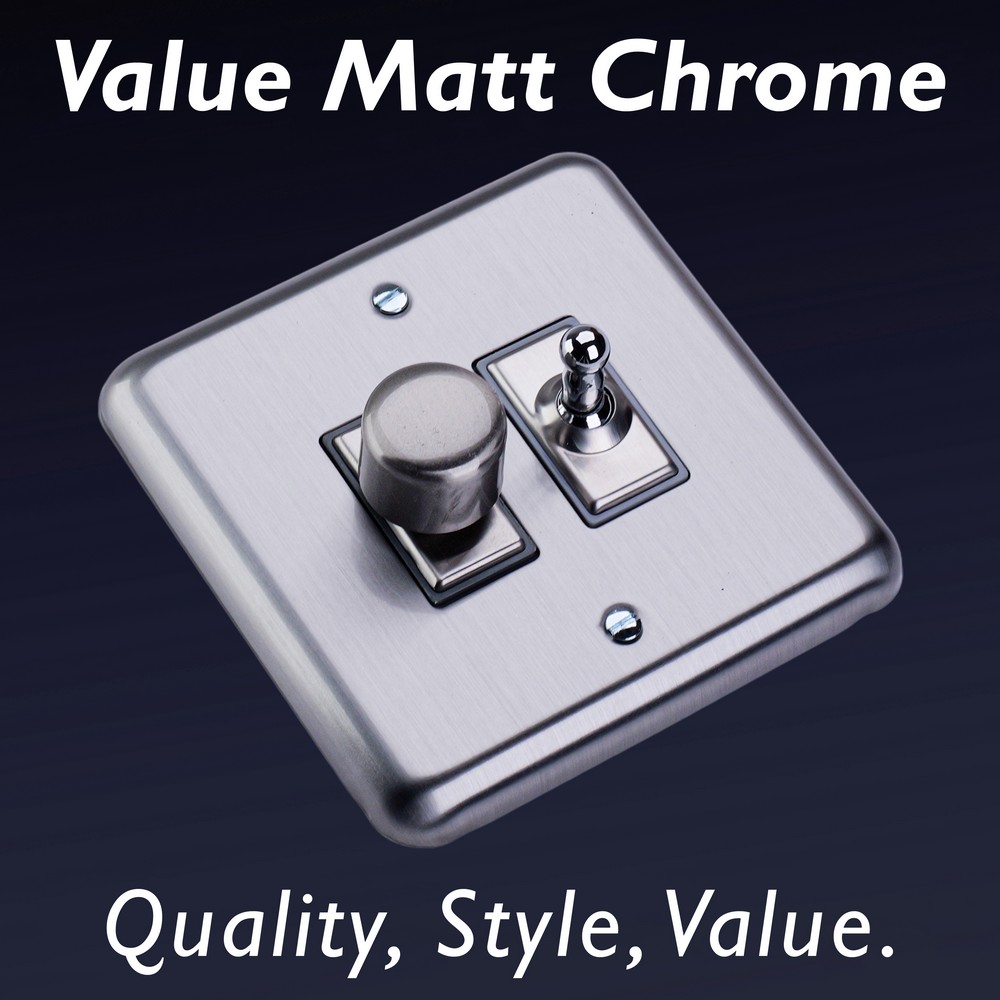

Matt Chrome finish

Matt Chrome offers unbeatable value for those seeking a beautiful Decorative finish at a great price point. Choose between black, white or matching metal rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 21st October 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
