Data sheet: XYG1.DB

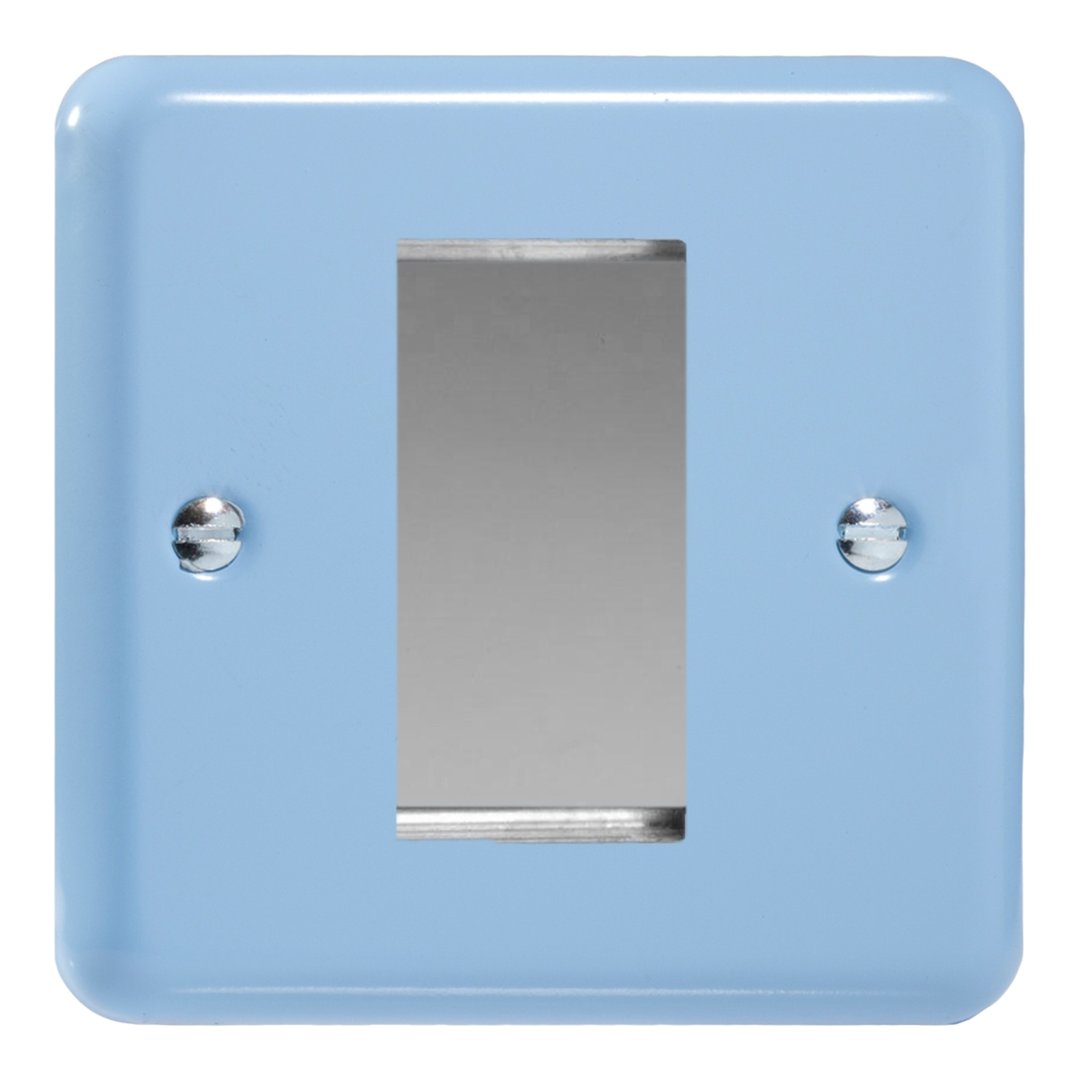

DataGrid Plate (1 Grid Space), Lily Duck Egg Blue (XYG1.DB)

Data sheet

XYG1.DB DataGrid Plate (1 Grid Space)

Name: DataGrid Plate (1 Grid Space)
Brand: VARILIGHT
SKU: XYG1.DB

Single DataGrid Plate

Range Lily Finish Duck Egg Blue

Product features

Clip in any mix of DataGrid modules: TV, satellite, network, phone, USB and more
Build the exact data combination the room needs
Over 70 DataGrid modules to choose from
Modules purchased separately
Rounded-edge faceplate, 7mm deep with chrome screws

Product

Product code: XYG1.DB
Category: DataGrid Faceplates
Range: Lily
Finish: Duck Egg Blue
Barcode: 5021575216028

Size and fitting

Dimensions: 86x86x9mm
Faceplate depth: 7mm
Fixing centres: 60.3mm
Depth from mounting face: Module Dependent
Recommended back box depth: Refer to Grid Modules
Net weight: 86g
Gross weight: 88g

Electrical

Safety and compliance

Intended applications: Indoor Use Only. Data circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Applicable safety standard: BS EN 60669
Commodity code: 85389091

Declaration of Conformity

Lily collection

Add a splash of colour with The Lily range to brighten up any interior. The soft rounded edge of the metal faceplate, combined with a pastel or primary colour, presents a modern take on a retro style.

Duck Egg Blue finish

Cool and calming, Duck Egg Blue is the pastel that never dates, perfect for bedrooms, bathrooms and coastal-style kitchens. Paired with white inserts and chrome screws.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
