Data Sheet
Product Code: YT50LZ
Product Description: 0-50VA Dimmable Low Voltage Lighting Transformer (with Trailing Leads)
2 YEAR GUARANTEE
MADE IN THE EU
Product Category: Transformers and Drivers
Insert/Knob Colour:
Barcode: 5021575960259

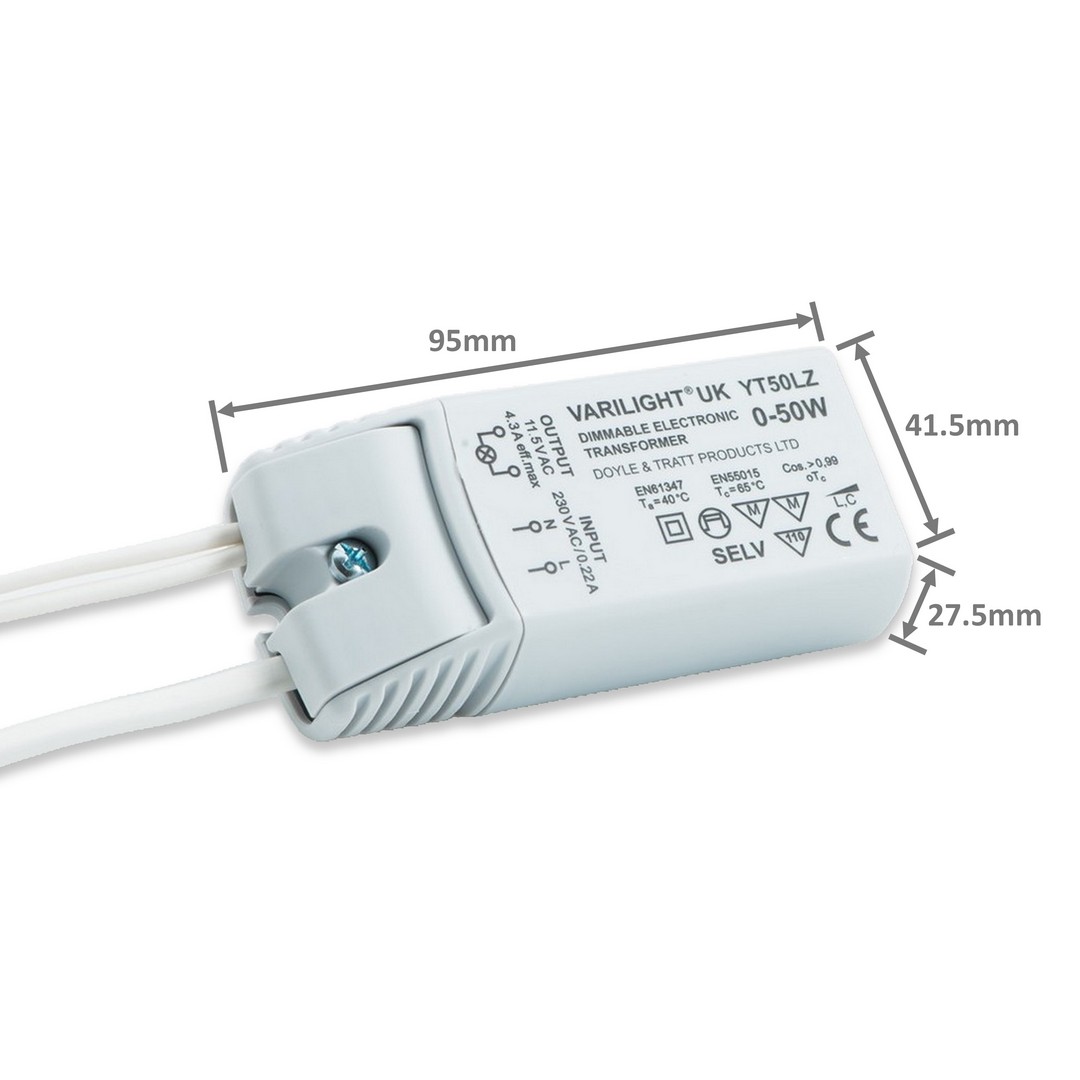

Dimensions: 95x41.5x27.5mm
Net Weight: 98g
Gross Weight: 100g
Fixing Centres: N/A
Depth from Mounting Face:
Recommended Back Box Depth: N/A
Operating Voltage: 230v 50Hz
Maximum Load Rating: 50W
Maximum Current Rating: 230V AC: 0.23A / 11.5V AC: 0.22A
Terminal (Live) Diameter: N/A; Capacity: N/A
Terminal (Neutral) Diameter: N/A; Capacity: N/A
Terminal (Earth) Diameter: N/A; Capacity: N/A
Product Features
Soft start gently brings lights up to full brightness when you switch on and extends lamp life
Suitable for 12V a.c. LEDs up to a maximum of 25W
2 x input leads and 2 x output leads
Auto-resetting overload protection, short circuit protection and over-temperature
No minimum rating.
Intended Applications: Indoor Use Only. Do not cover.. Domestic lighting circuits.
Safety Advice: Minimum distance between transformer and lamp: 3cm. Maximum distance between transformer and lamp: 2m.
Applicable Safety Standard: EN 61347-1, EN 61347-2-2, EN 61547, EN 55015 & EN 61000-3-2
Commodity Code: 85043180
Date of Issue: 08th December 2023 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
