Data Sheet

Product Code: WDI2S

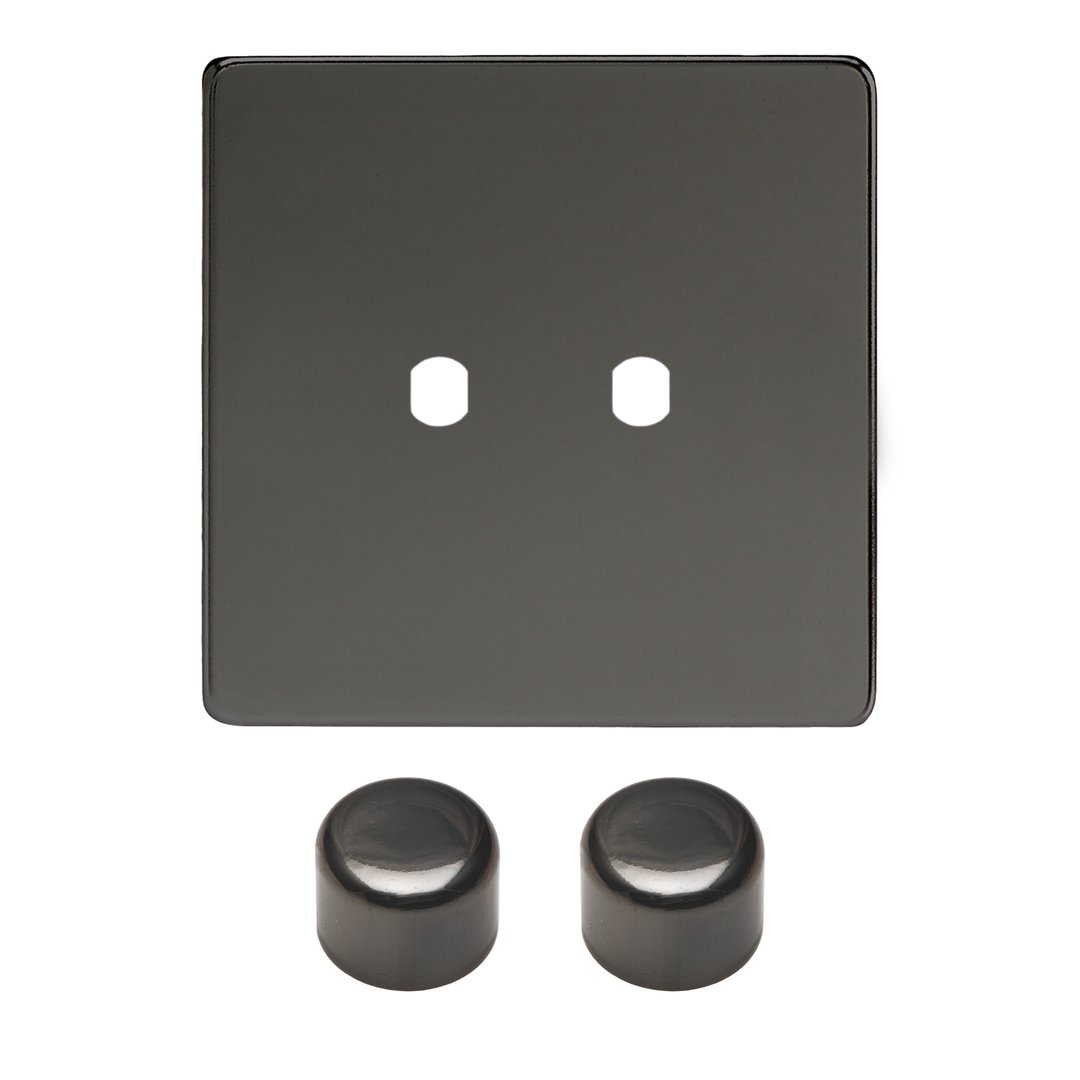

Product Description: 2-Gang Matrix Kit For Rotary Dimmers

Range: Screwless

Finish: Iridium

Product Category: Dimmer Faceplate Kits

Insert/Knob Colour: Iridium Knob

Barcode: 5021575293319

Dimensions: 86x86x*mm

Faceplate Depth: 4mm

Net Weight: 126g

Gross Weight: 128g

Fixing Centres: 60.3mm

Depth from Mounting Face: Module Dependent

Recommended Back Box Depth: N/A

Operating Voltage: 230v 50Hz

Maximum Load Rating: N/A

Maximum Current Rating: -

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Varilight Matrix system allows total dimming flexibility

  Create any combination of dimmers imaginable

  Stylish screwless faceplate

  Dimmer modules purchased separately

  Fixing nuts and a nut spinner are included in the kit

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Iridium Finish
The Iridium Black finish lends an air of sophistication and modernity with its deep, lustrous tone adding a touch of drama to stylish interiors. Supplied with black inserts and matching iridium rockers. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
