Data sheet: WG1
Data sheet

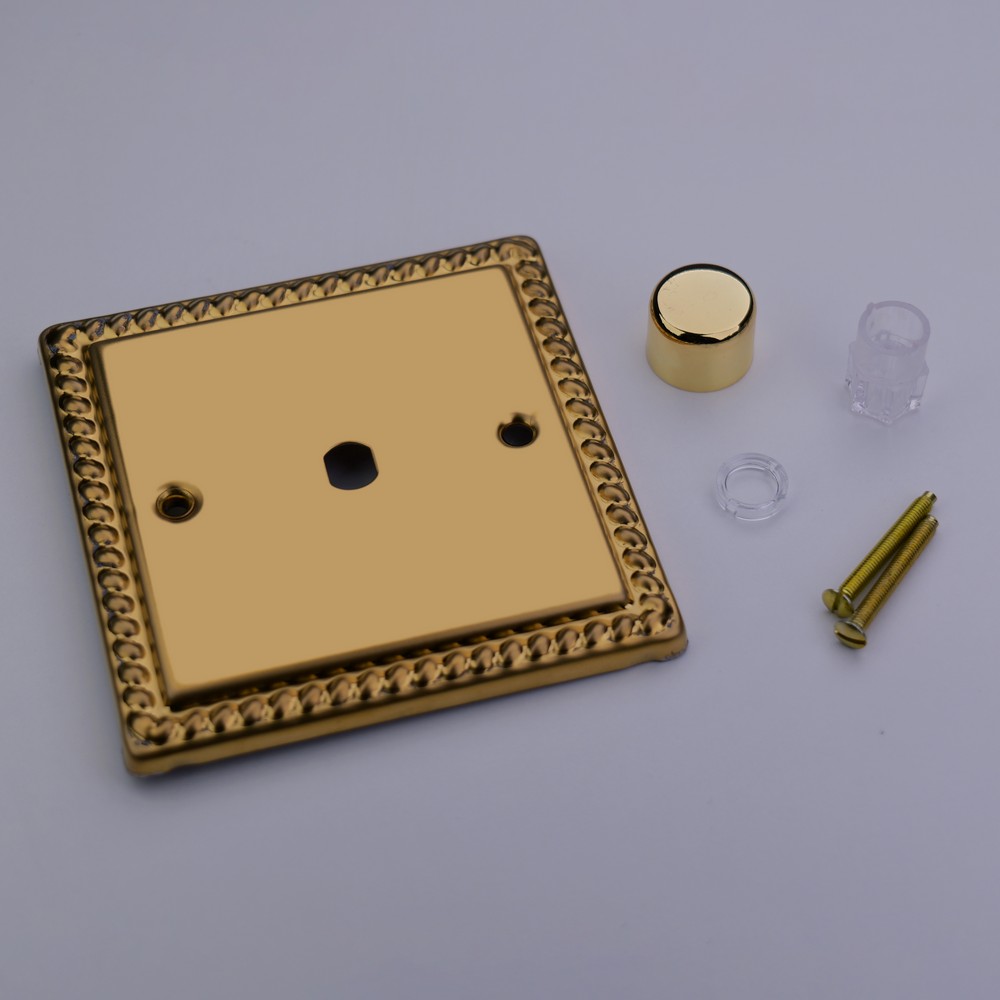

WG1 1-Gang Matrix Kit For Rotary Dimmers
Single Faceplate Kit (Dimmer Modules Not Included)
Product features
- The Matrix system gives you complete dimming flexibility
- Any combination of dimmers you can imagine, on one plate
- Kit includes the faceplate, knobs, nuts and a nut spinner, everything except the dimmer modules
- Dimmer modules purchased separately, so you only pay for what you use
- Takes S, M and L modules plus the Wi-Fi module, up to 400W of LED across the plate
- The same modules replace the dimmer modules in existing VARILIGHT plates
- Bevel-edge faceplate, 7mm deep with brass screws
Product
- Product code
- WG1
- Category
- Dimmer Faceplate Kits
- Range
- Classic
- Finish
- Georgian Brass
- Insert / knob colour
- Brass Knob
- Barcode
- 5021575008081
Size and fitting
- Dimensions
- 95x95x*mm
- Faceplate depth
- 7mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- Module Dependent
- Net weight
- 116g
- Gross weight
- 118g
Electrical
- Operating voltage
- 230V 50Hz
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required. Product Must Be Earthed.
- Applicable safety standard
- BS EN 60669
- Commodity code
- 85389091
Classic collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
