Data sheet: XBBR1D

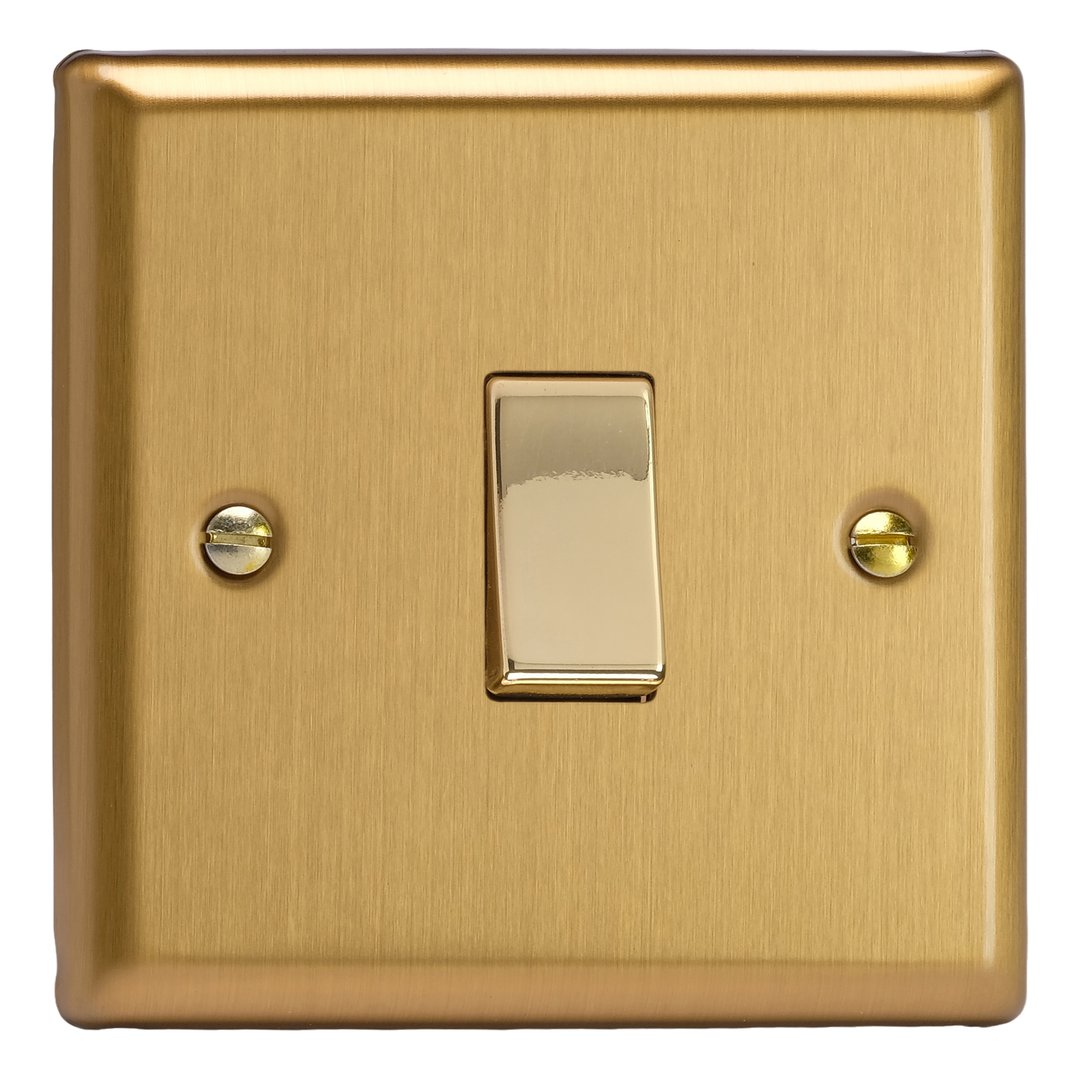

1-Gang 10A Retractive Switch, Classic Brushed Brass (XBBR1D)

Data sheet

XBBR1D 1-Gang 10A Retractive Switch

Range Classic Finish Brushed Brass

Product features

Retractive push to make switch that springs back when released
For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
Install a V-Pro Micro Push Control In-Line Dimmer Pack behind the switch for intelligent LED dimming with nothing on the wall but the switch itself.
10A rated
Bevel-edge faceplate, 8mm deep with brass screws, fits a 16mm back box

Product

Product code: XBBR1D
Category: Rocker Switches
Range: Classic
Finish: Brushed Brass
Insert / knob colour: Brass Rocker
Barcode: 5021575000757

Size and fitting

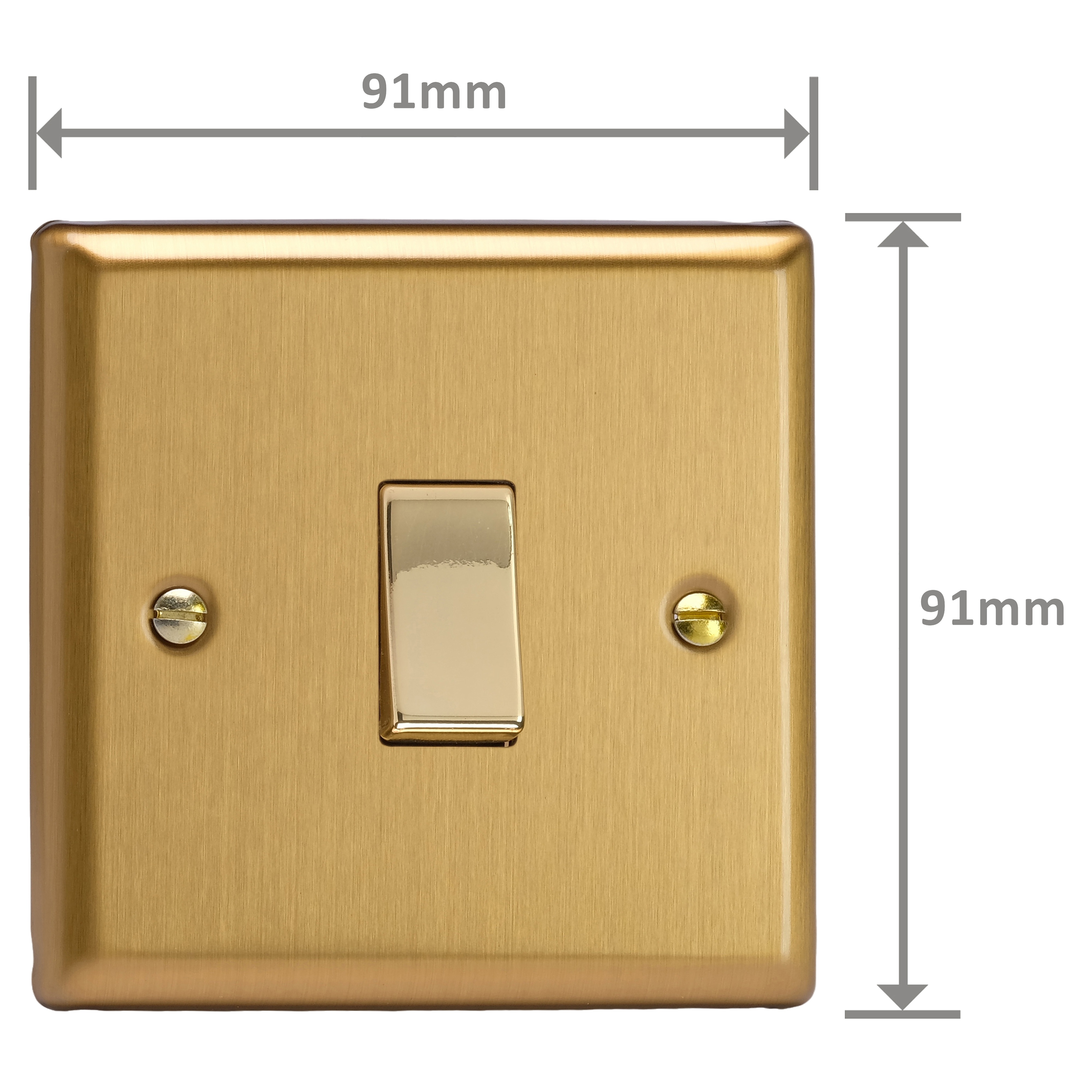

Dimensions: 91x91x25mm
Faceplate depth: 8mm
Fixing centres: 60.3mm
Depth from mounting face: 12.9mm
Recommended back box depth: 16mm
Net weight: 96g
Gross weight: 98g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 10A
Maximum current rating: 10A
Terminal (Live): 3.3mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 60669-1
Commodity code: 85365007

Declaration of Conformity

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Brass finish

The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
