Data Sheet

Product Code: XDB4WS

Product Description: 1-Gang 13A Double Pole Switched Socket

Range: Screwless

Finish: Brushed Brass

Product Category: Sockets

Insert/Knob Colour: Brass/White Insert

Barcode: 5021575760309

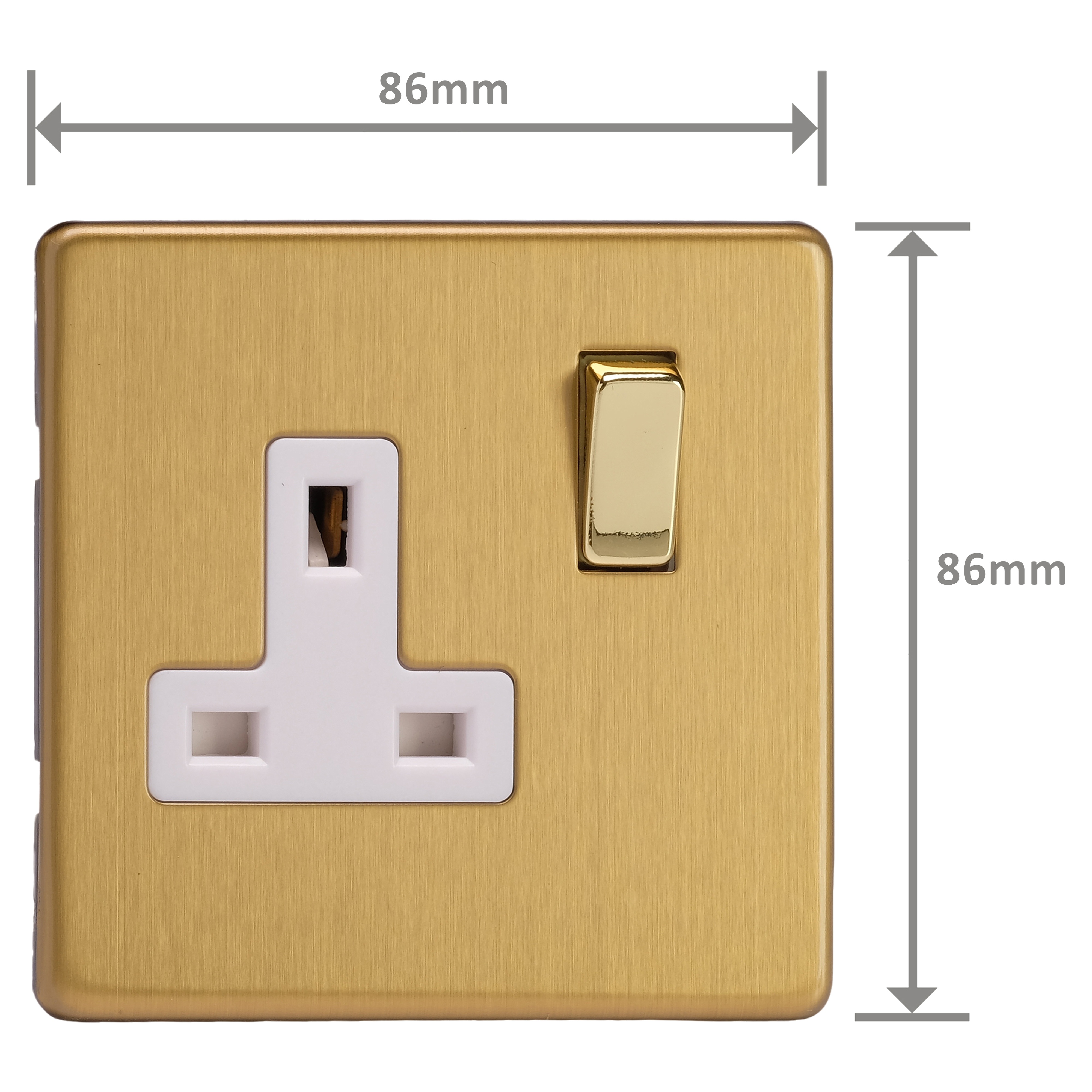

Dimensions: 86x86x32mm

Faceplate Depth: 4mm

Net Weight: 146g

Gross Weight: 148g

Fixing Centres: 60.3mm

Depth from Mounting Face: 23.3mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Double pole switching isolates live and neutral for added safety

  Dual earth terminals for a secure earth connection

  Large termination points for easy wiring

  Tight tolerances for a secure plug fit

  Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 35mm back box

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts are available, paired with polished brass rockers for an added touch of class.
