Data sheet: XDL4WS
Data sheet

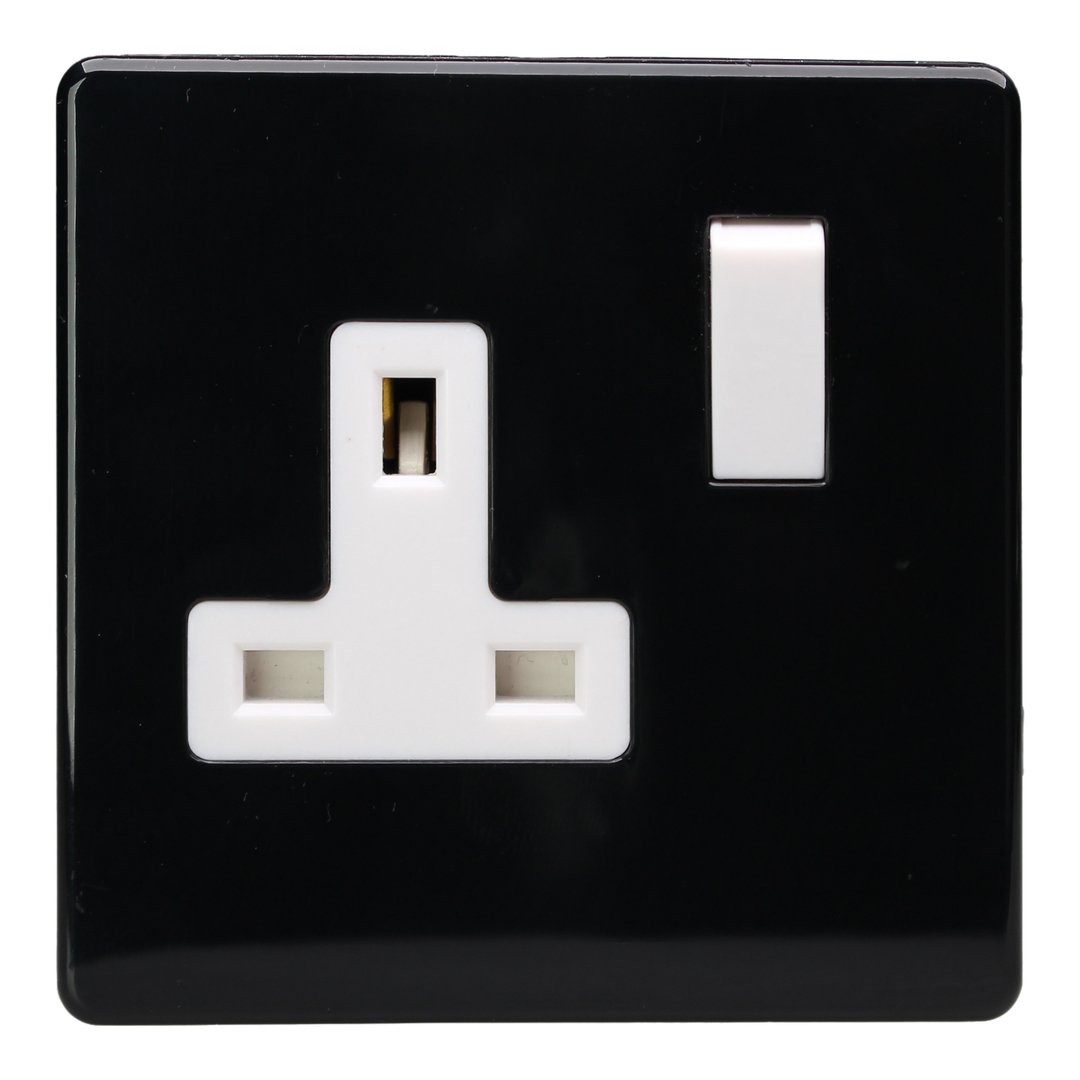

XDL4WS 1-Gang 13A Double Pole Switched Socket
Single Switched Plug Socket
Product features
- Double pole switching isolates live and neutral for added safety
- Dual earth terminals for a secure earth connection
- Large termination points for easy wiring
- Tight tolerances for a secure plug fit
- High-contrast black faceplate, just 4mm deep with brass screws, fits a 35mm back box
Product
- Product code
- XDL4WS
- Category
- Sockets
- Range
- Part M
- Finish
- Black-White
- Insert / knob colour
- White Insert
- Barcode
- 5021575010565
Size and fitting
- Dimensions
- 86x86x32mm
- Faceplate depth
- 4mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 23.3mm
- Recommended back box depth
- 35mm
- Net weight
- 146g
- Gross weight
- 148g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 13A
- Maximum current rating
- 13A
- Terminal (Live)
- 4.8mm, capacity 4 x 2.5mm²
- Terminal (Neutral)
- 4.8mm, capacity 4 x 2.5mm²
- Terminal (Earth)
- 4.8mm, capacity 4 x 2.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS 1363-2
- Commodity code
- 85366990
Part M collection
The Part M range offers high-contrast wiring accessories that help visually impaired users locate and operate switches and sockets more easily, supporting compliance with Part M of the Building Regulations. Each product pairs a black faceplate with contrasting white rockers and inserts, and extra large rockers are available on many of the switches for easier operation.
Black-White finish
A black faceplate with contrasting white rockers, inserts and dimmer knobs gives the high visual contrast recommended by Part M of the Building Regulations, helping visually impaired users find and operate switches and sockets.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
