Data Sheet

Product Code: XFB4DB

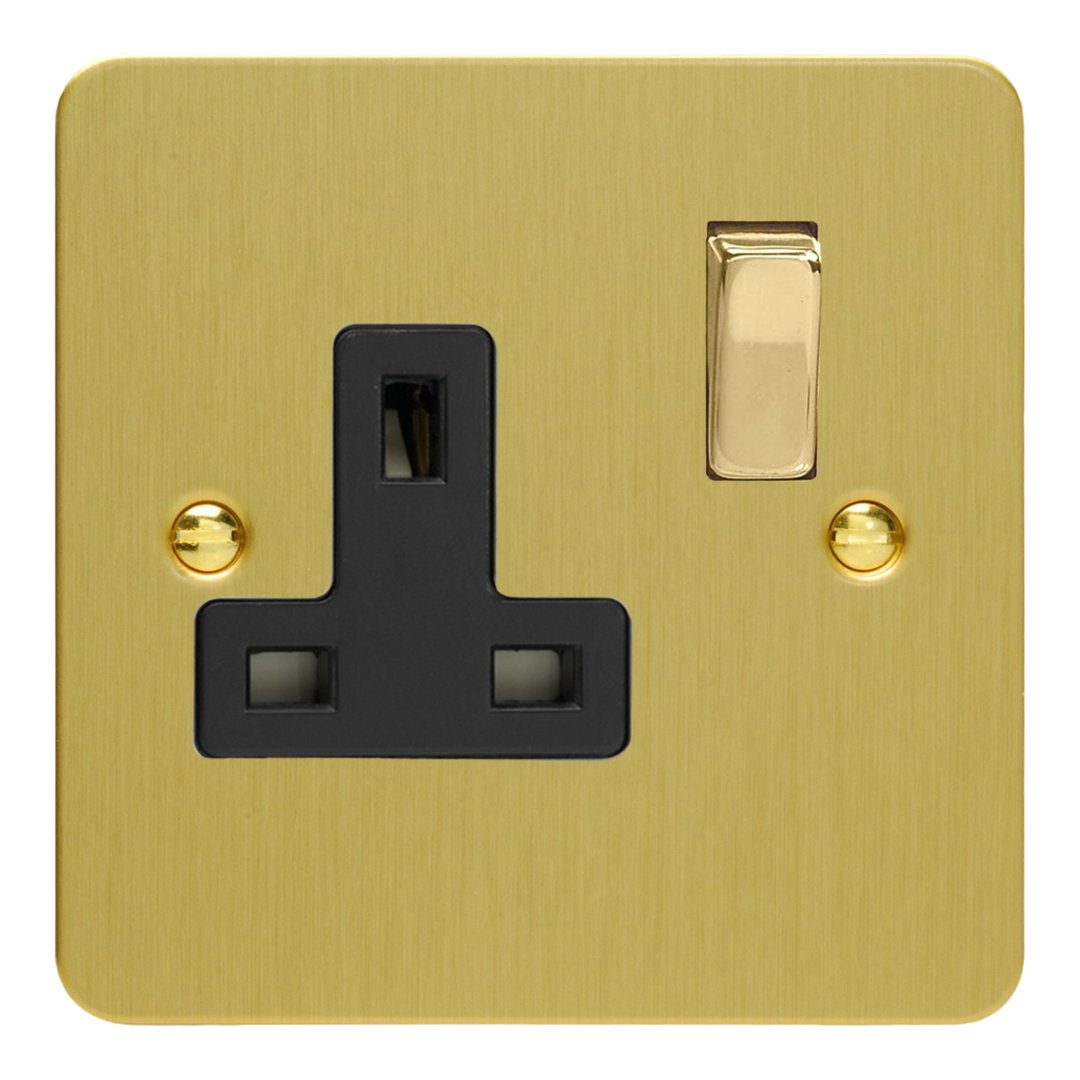

Product Description: 1-Gang 13A Double Pole Switched Socket

Range: Ultraflat

Finish: Brushed Brass

Product Category: Sockets

Insert/Knob Colour: Brass/Black Insert

Barcode: 5021575900293

Dimensions: 89x89x32mm

Faceplate Depth: 1mm

Net Weight: 136g

Gross Weight: 138g

Fixing Centres: 60.3mm

Depth from Mounting Face: 24.9mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Double pole switching for safer operation

  Contemporary, ultra-slim faceplate

Ultraflat Collection
The Ultraflat range features a slim profile faceplate and provides an understated modern look. Cut from high quality stainless steel, this minimalist range will enhance any interior design scheme.

Brushed Brass Finish
The elegant Brushed Brass finish is paired with polished brass metal rockers and matching brass screws, with the option of black or white socket inserts. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
