Data Sheet

Product Code: XY4VB.MB

Product Description: 1-Gang 13A Double Pole Switched Socket

Range: Vogue

Finish: Matt Black

Product Category: Sockets

Insert/Knob Colour: Polished Brass/Black Insert

Barcode: 5021575122091

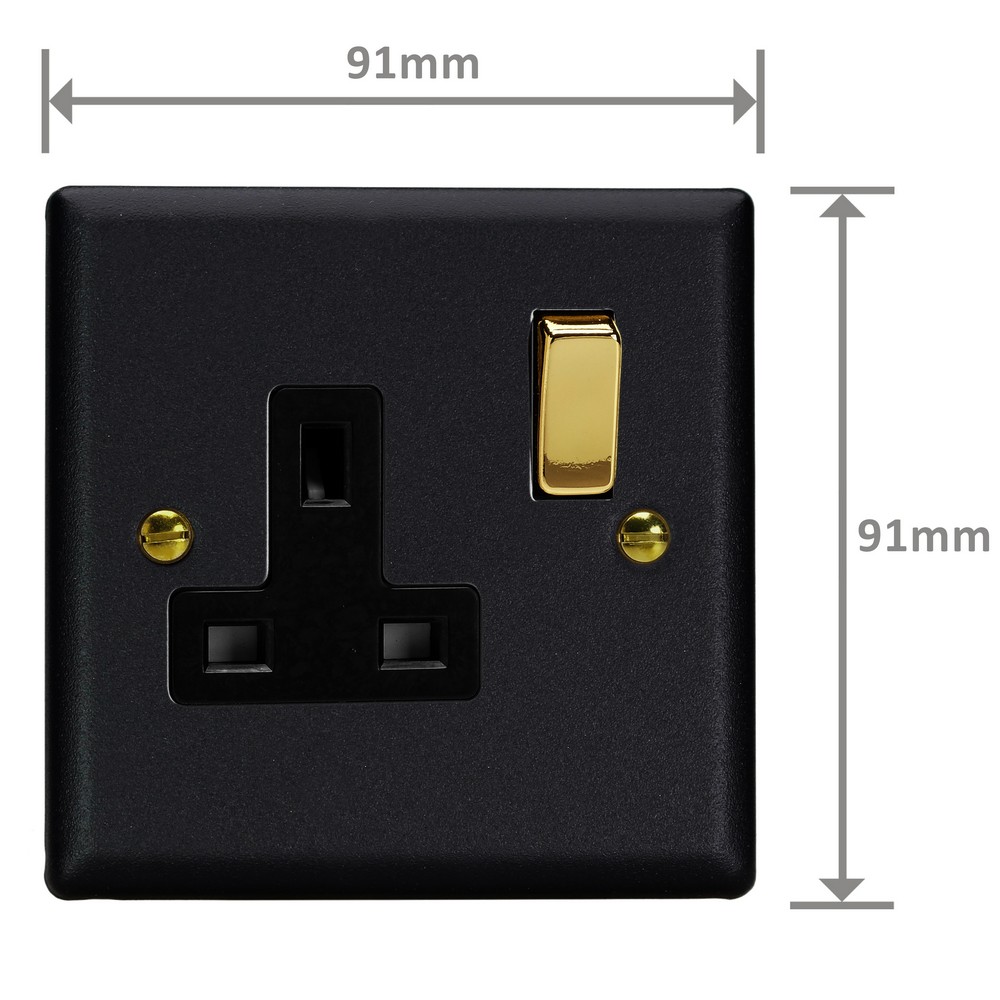

Dimensions: 91x91x31mm

Faceplate Depth: 8mm

Net Weight: 136g

Gross Weight: 138g

Fixing Centres: 60.3mm

Depth from Mounting Face: 17.8mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Double pole switching for safer operation

  Varilight Vogue Collection

Vogue Collection
Inspired by the glamour of art deco, the Vogue collection will lift the decor of any room. Polished Brass switches, toggles and dimmer knobs are paired with the highest quality metal faceplates, to bring a feeling of luxury to any room.

Matt Black Finish
The Matt Black finish is powder-coated to give a tactile, textured finish, which is tough, durable and resistant to fingerprints and is elevated here with the signature brass detailing of the Vogue Collection. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
