Data Sheet

Product Code: XDV4WS

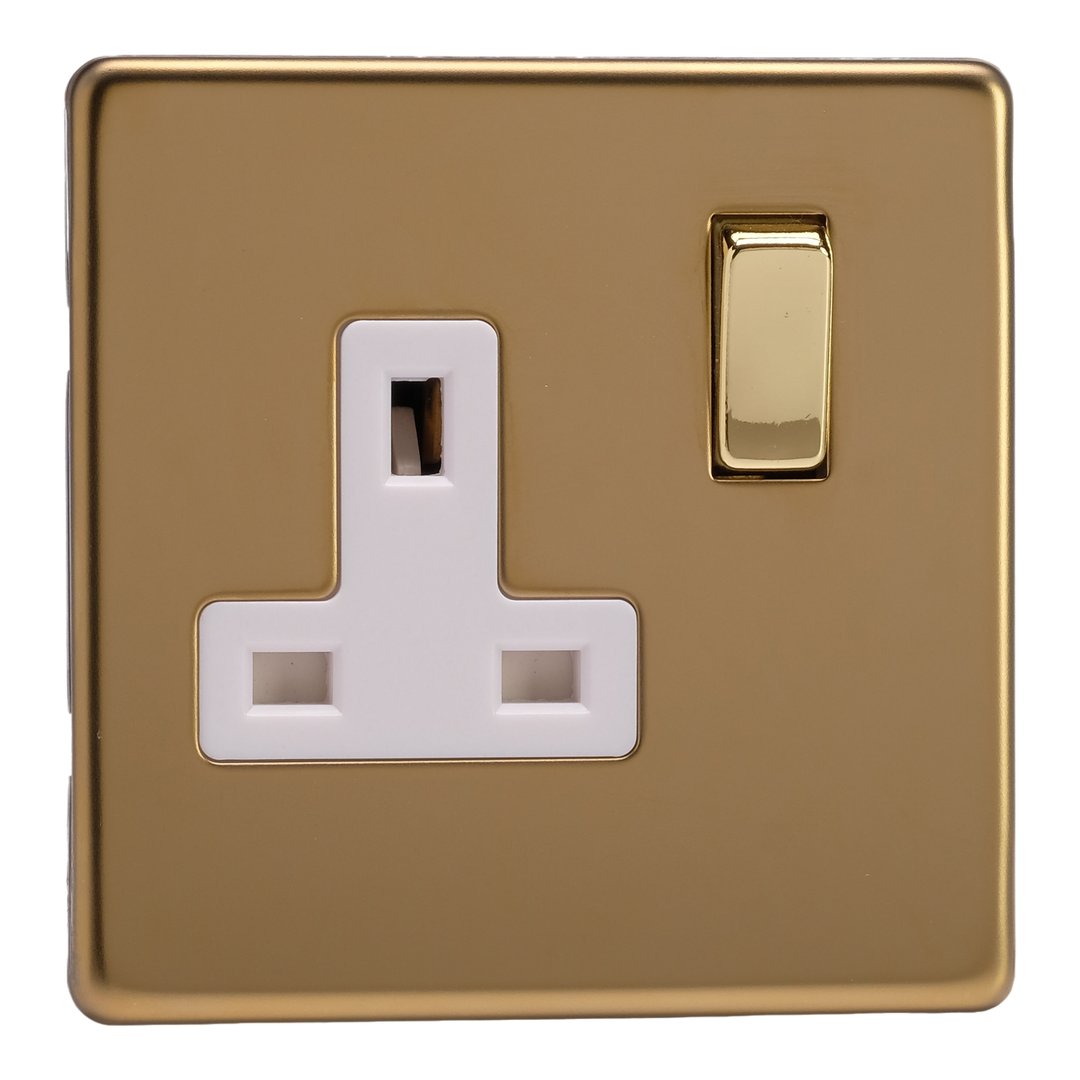

Product Description: 1-Gang 13A Double Pole Switched Socket

Range: Screwless

Finish: Polished Brass

Product Category: Sockets

Insert/Knob Colour: Brass/White Insert

Barcode: 5021575490305

Dimensions: 86x86x32mm

Faceplate Depth: 4mm

Net Weight: 146g

Gross Weight: 148g

Fixing Centres: 60.3mm

Depth from Mounting Face: 23.3mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Double pole switching for safer operation

  Sleek, low-profile screwless faceplate

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Polished Brass Finish
The elegant Polished Brass finish features matching polished brass rockers with an option of black or white inserts. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
