Data Sheet
Product Code: XDBKR1S

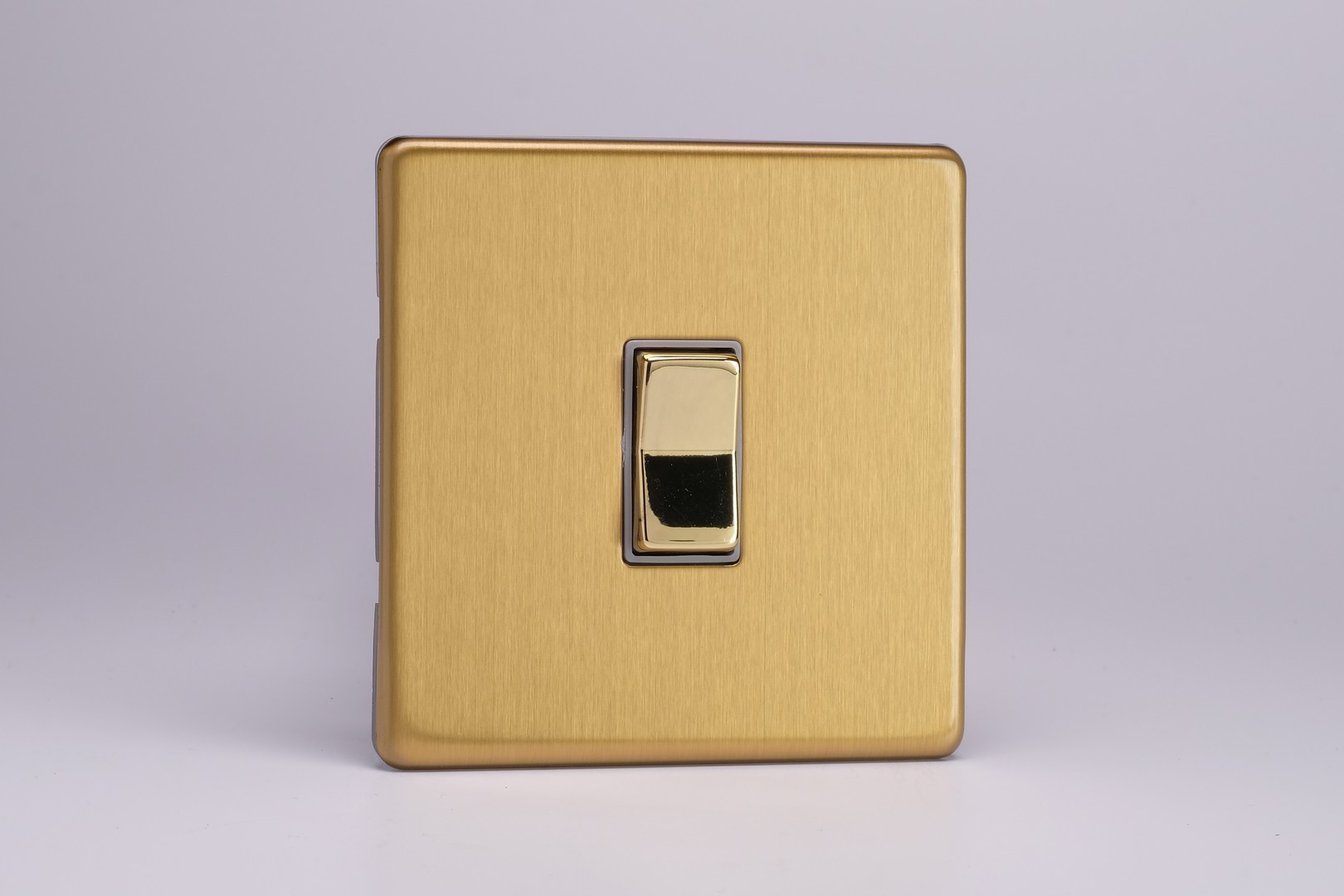

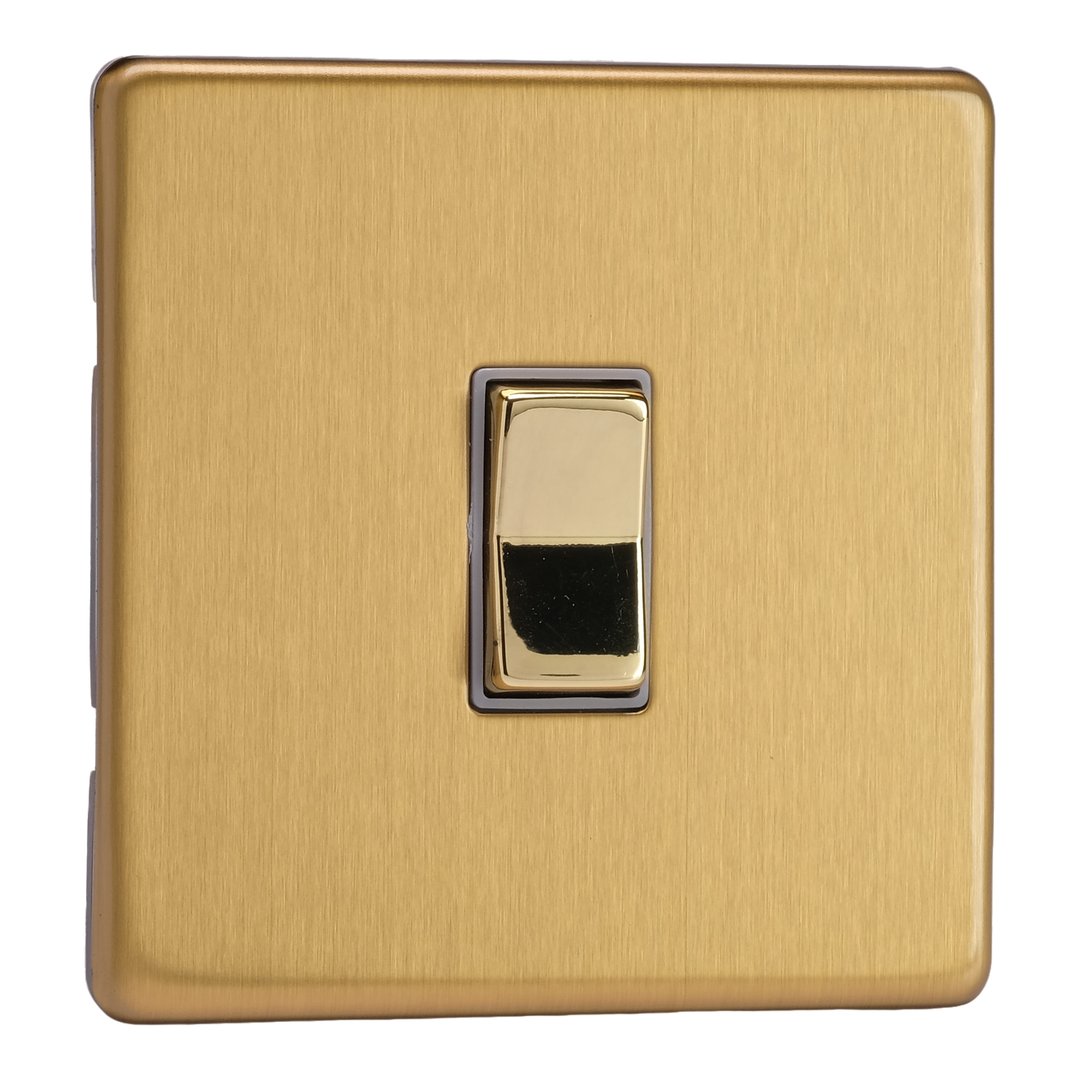

Product Description: 1-Gang 10A Centre-Off Retractive Switch
Range: Screwless
Finish: Brushed Brass
Product Category: Rocker Switches
Insert/Knob Colour: Polished Brass Rocker
Barcode: 5021575005202

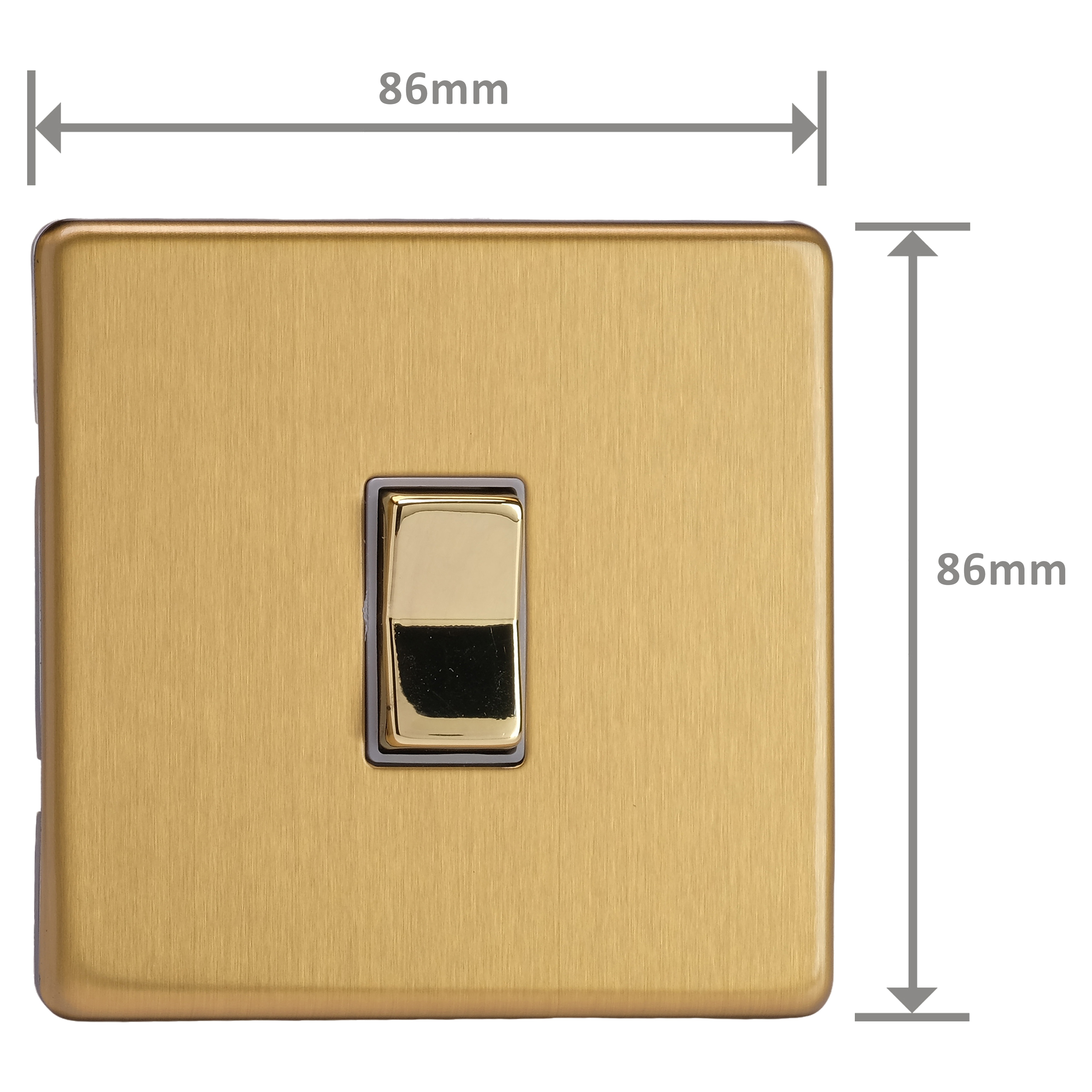

Dimensions: 86x86x23mm
Faceplate Depth: 4mm
Net Weight: 116g
Gross Weight: 118g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16.7mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Retractive, push to make switch
For use with blinds, bells and applications where a momentary electric signal is required
Sleek, low-profile screwless faceplate
Pair with our V-Pro Micro Dual Push Control In-Line Dimmer Pack to enable intelligent up & down dimming functionality via a sleek, minimalist interface.
Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts are available, paired with polished brass rockers for an added touch of class. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic electrical circuits.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 12th October 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
