Data Sheet
Product Code: XDBPGY2S

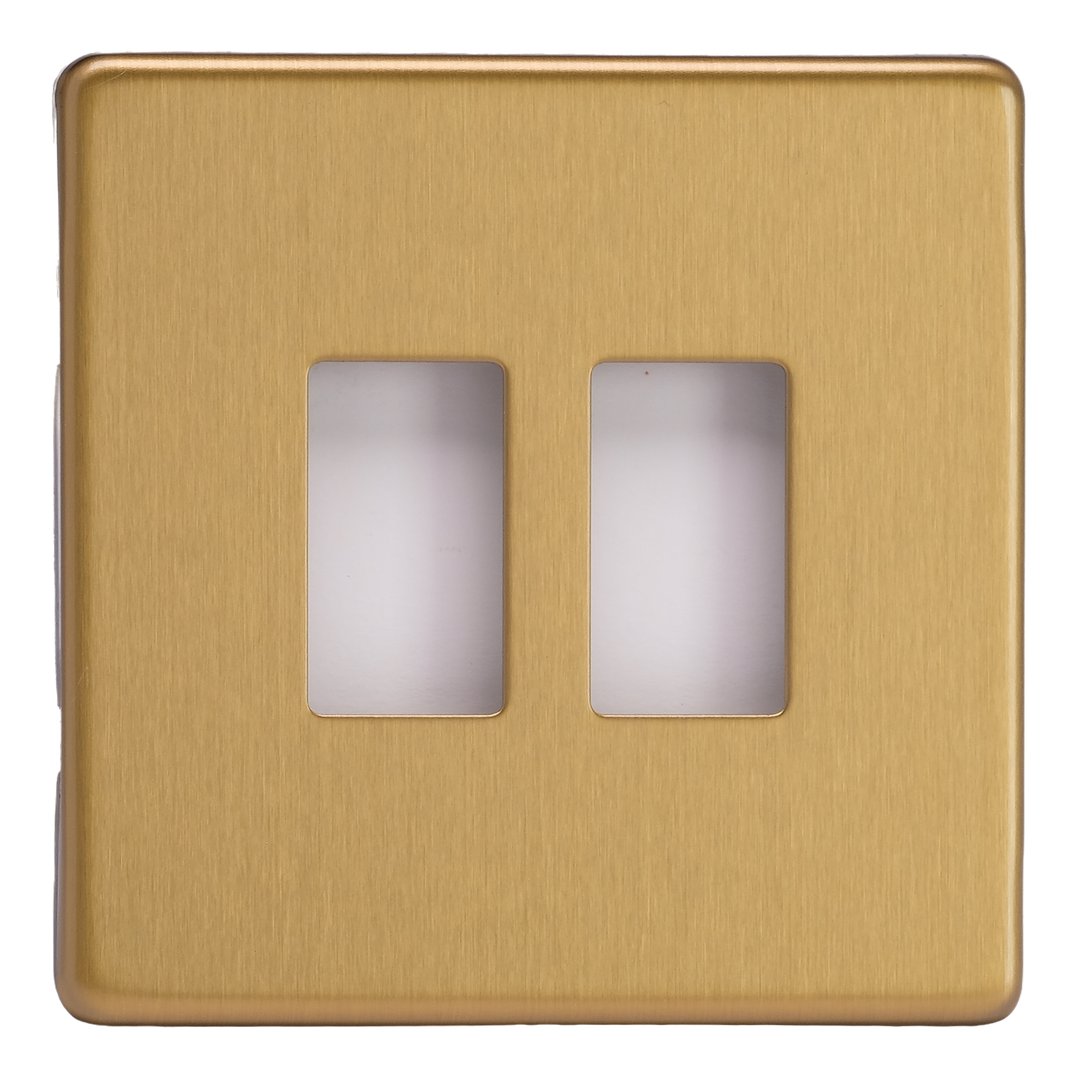

Product Description: 2-Gang Screwless PowerGrid Plate including Yoke (Single Plate)
Range: Screwless
Finish: Brushed Brass
Product Category: Grid Faceplates
Barcode: 5021575007565
Dimensions: 86x86x7mm
Faceplate Depth: 4mm
Net Weight: 76g
Gross Weight: 78g
Fixing Centres: 60.3mm
Depth from Mounting Face: Module Dependent
Recommended Back Box Depth: Dependent on fitting
Operating Voltage: N/A
Maximum Load Rating: N/A
Maximum Current Rating: -
Terminal (Earth) Diameter: 5.4mm; Capacity: 4 x 2.5mm²
Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669
Commodity Code: 85389091
Product Features
Create your own switch combinations
Includes plate and grid frame for ease of use
Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.
Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts are available, paired with polished brass rockers for an added touch of class. Varilight decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
