Data Sheet

Product Code: XDBSSBS

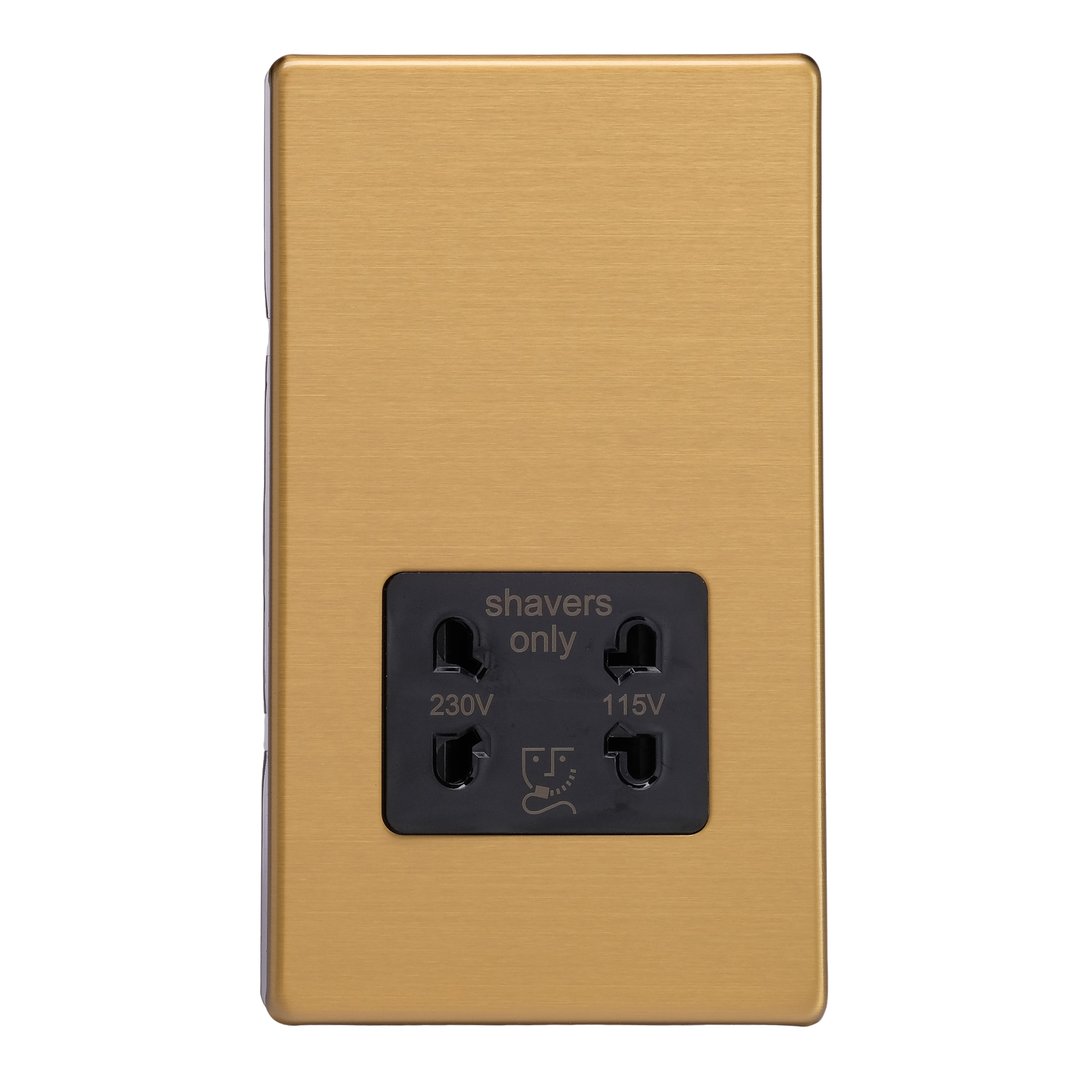

Product Description: Dual Voltage Shaver Socket 230V/115V

Range: Screwless

Finish: Brushed Brass

Product Category: Other Items

Insert/Knob Colour: Black Insert

Barcode: 5021575761191

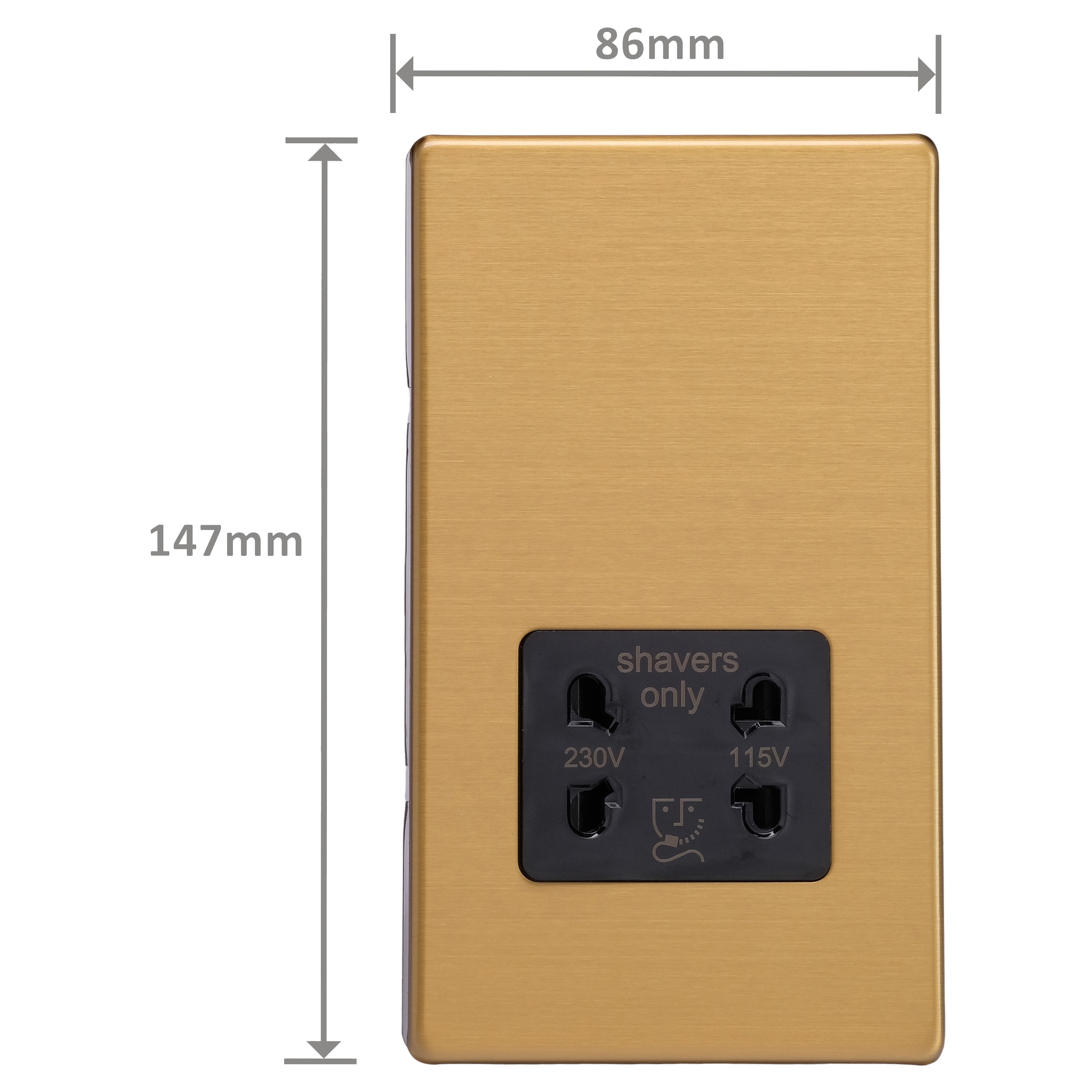

Dimensions: 86x147x48mm

Faceplate Depth: 4mm

Net Weight: 380g

Gross Weight: 382g

Fixing Centres: 120.6mm

Depth from Mounting Face: 44.4mm

Recommended Back Box Depth: 47mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 20VA

Maximum Current Rating: 80mA

Terminal (Live) Diameter: 5.4mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 5.4mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 5mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 61558-2-5

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Suitable for use in bathrooms, toilets and shower rooms (IP41)

  230V accepts British and Continental round pin

  115V accepts Continental two-pin and America NEMA

  Sleek, low-profile screwless faceplate

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts are available, paired with polished brass rockers for an added touch of class. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
