Data sheet: XDL5UACWS

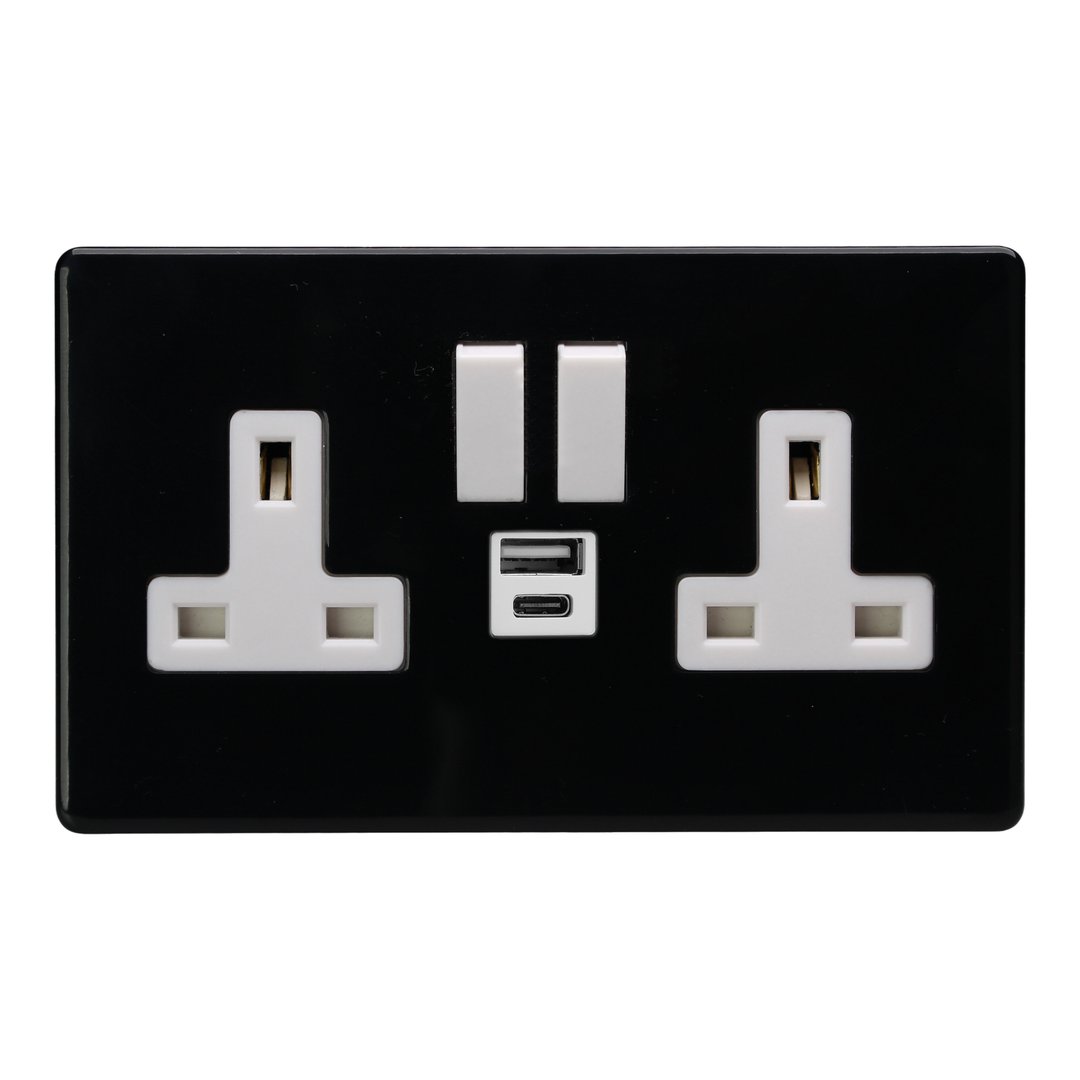

Double Socket with 20W Shared USB A & C Charging Ports, Part M Black & White (XDL5UACWS)

Data sheet

XDL5UACWS Double Socket with 20W Shared USB A & C Charging Ports

Name: Double Socket with 20W Shared USB A & C Charging Ports
Brand: VARILIGHT
SKU: XDL5UACWS

Double Switched Plug Socket With USB A+C Charging

Range Part M Finish Black-White

Product features

Ideal for charging iPad, iPhone, tablets, mobiles and cameras, supporting Qualcomm QuickCharge 3.0, and Power Delivery 3.0.
Features Varilight Smart Port technology making it suitable for all types of devices.
The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
Sleek, low-profile screwless faceplate

Product

Product code: XDL5UACWS
Category: Sockets with USB A Charging
Range: Part M
Finish: Black-White
Insert / knob colour: White Insert
Barcode: 5021575024371

Size and fitting

Dimensions: 86x147x31mm
Faceplate depth: 4mm
Fixing centres: 120.6mm
Depth from mounting face: 23.1mm
Recommended back box depth: 35mm
Net weight: 170g
Gross weight: 172g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: USB: 20W
Maximum current rating: 13A
Terminal (Live): 4.8mm, capacity 4 x 2.5mm²
Terminal (Neutral): 4.8mm, capacity 4 x 2.5mm²
Terminal (Earth): 4.8mm, capacity 4 x 2.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Please note recommended back box depth relies on efficient cable routing. Product Must Be Earthed.
Applicable safety standard: BS 1363-2
Commodity code: 85366990

Declaration of Conformity

Part M collection

Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Black-White finish

The Premium Black finish is created using a high gloss polycarbonate and is beautifully presented on low profile screwless faceplate, paired with chrome inserts and featuring hidden fixings, contributing to its understated appeal. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
