Data Sheet

Product Code: XDL6NDS

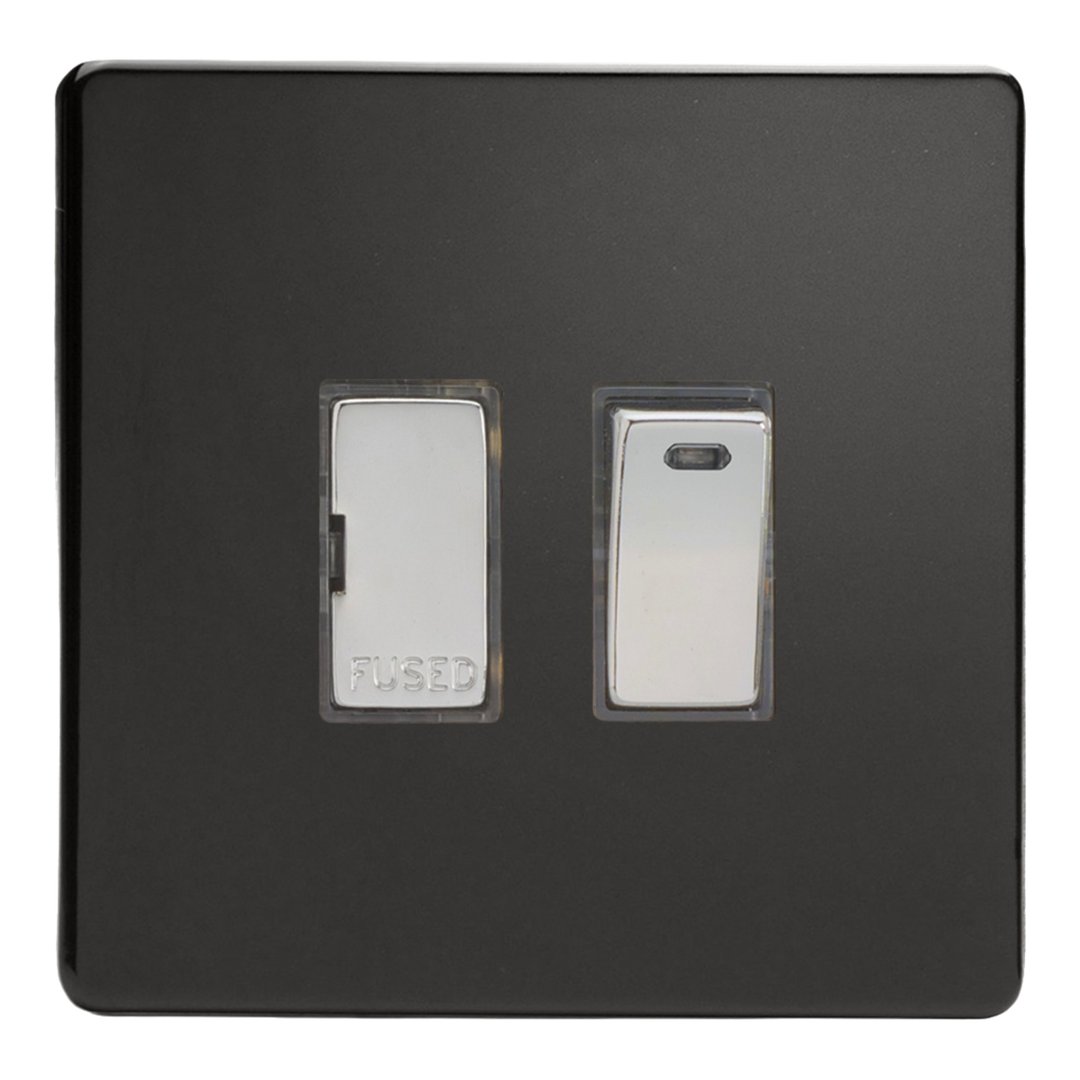

Product Description: 13A Switched Fused Spur with Neon

Range: Screwless

Finish: Premium Black

Product Category: Fused Spur Connection Units

Insert/Knob Colour: Chrome Insert

Barcode: 5021575891591

Dimensions: 86x86x30mm

Faceplate Depth: 4mm

Net Weight: 136g

Gross Weight: 138g

Fixing Centres: 60.3mm

Depth from Mounting Face: 22.2mm

Recommended Back Box Depth: 35mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: Refer to Fuse Value

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 1363-4

Commodity Code: 85389091

Declaration of Conformity

Product Features

  Double pole switching

  Neon indicator light

  Holds standard 25.4x6.4mm fuse

  Replaceable 13A fuse included

  Sleek, low-profile screwless faceplate

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Premium Black Finish
The Premium Black finish is created using a high gloss polycarbonate and is beautifully presented on low profile screwless faceplate, paired with chrome inserts and featuring hidden fixings, contributing to its understated appeal. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
