Data sheet: XDMBR1S

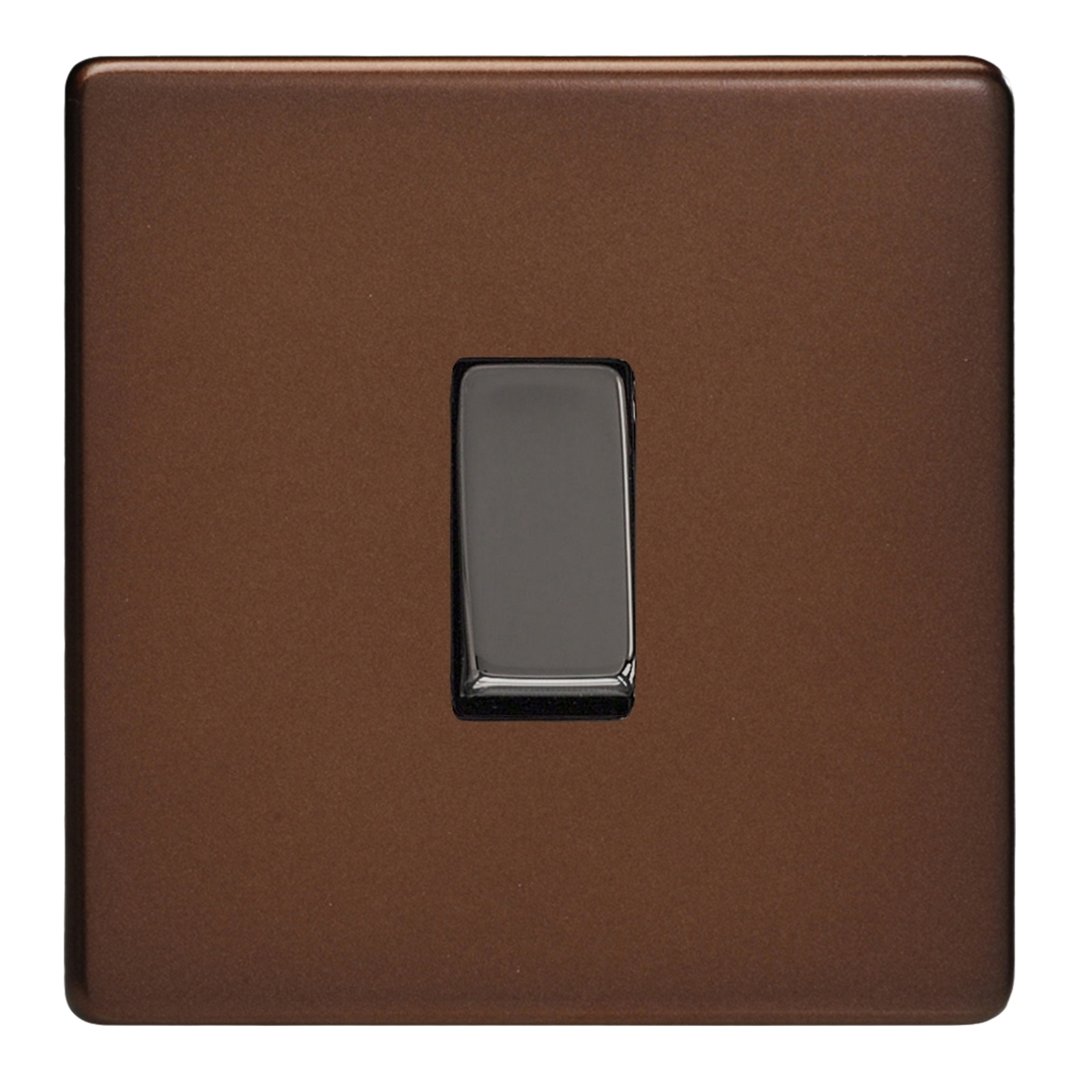

1-Gang 10A Retractive Switch, Screwless Mocha (XDMBR1S)

Data sheet

XDMBR1S 1-Gang 10A Retractive Switch

Name: 1-Gang 10A Retractive Switch
Brand: VARILIGHT
SKU: XDMBR1S

Single Push Retractive Switch

Range Screwless Finish Mocha

Product features

Retractive push to make switch that springs back when released
For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
Install a V-Pro Micro Push Control In-Line Dimmer Pack behind the switch for intelligent LED dimming with nothing on the wall but the switch itself.
10A rated
Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box

Product

Product code: XDMBR1S
Category: Rocker Switches
Range: Screwless
Finish: Mocha
Insert / knob colour: Iridium Insert
Barcode: 5021575019100

Size and fitting

Dimensions: 86x86x23mm
Faceplate depth: 4mm
Fixing centres: 60.3mm
Depth from mounting face: 18.4mm
Recommended back box depth: 25mm
Net weight: 116g
Gross weight: 118g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 10A
Maximum current rating: 10A
Terminal (Live): 3.3mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 60669-1
Commodity code: 85365007

Declaration of Conformity

Screwless collection

Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Mocha finish

Offering a warm, cosy feel, the Mocha finish is paired with black inserts and iridium rockers, bringing added sophistication.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
