Product Code: XDIBR1S

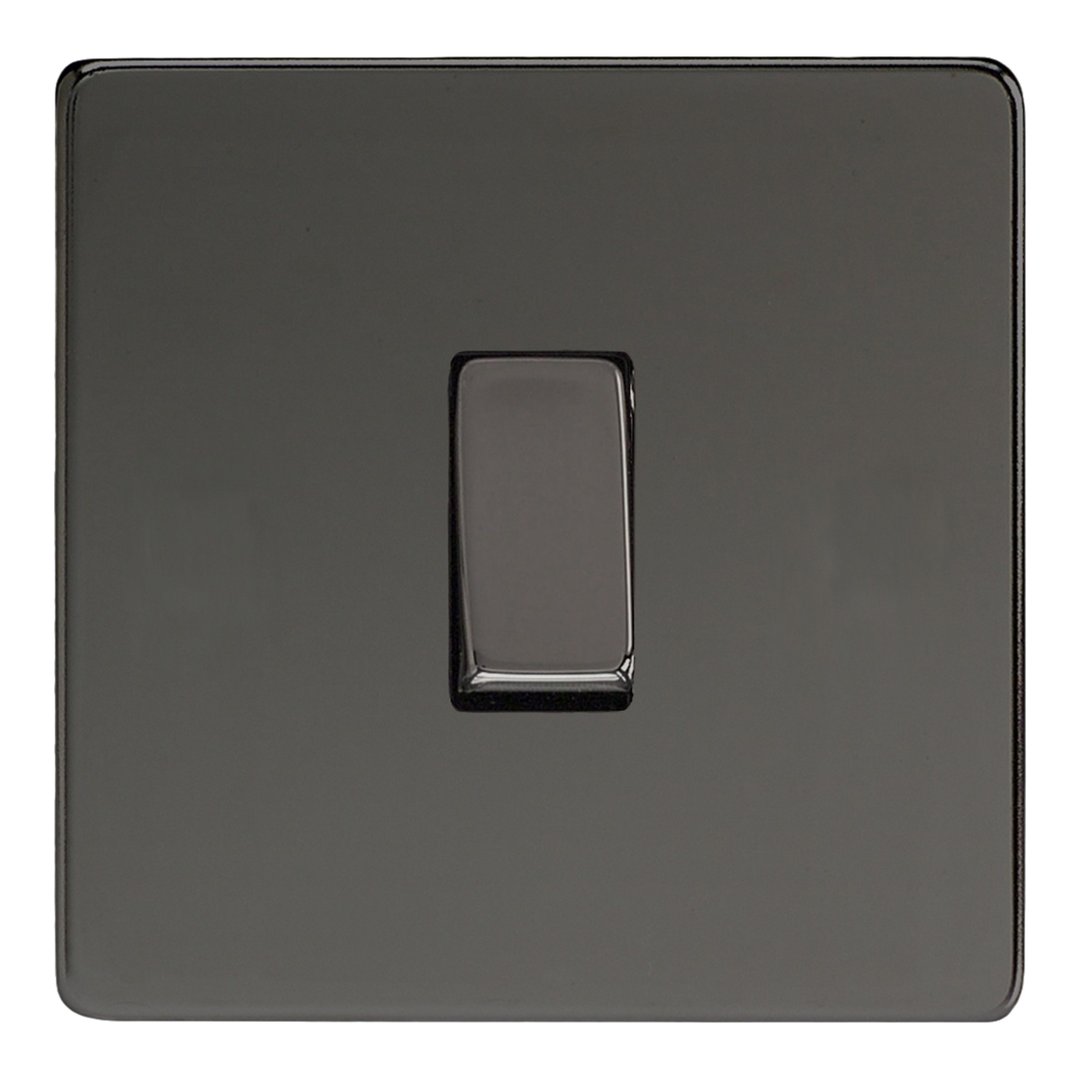

Product Description: 1-Gang 10A Retractive Switch
Range: Screwless
Finish: Iridium
Product Category: Rocker Switches
Insert/Knob Colour: Iridium Insert
Barcode: 5021575017618
Dimensions: 86x86x23mm
Faceplate Depth: 4mm
Net Weight: 116g
Gross Weight: 118g
Fixing Centres: 60.3mm
Depth from Mounting Face: 18.4mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Product Features
Retractive, push to make switch
For use with blinds, bells and applications where a momentary electric signal is required
Sleek, low-profile screwless faceplate
Pair with our V-Pro Micro Push Control In-Line Dimmer Pack to enable intelligent dimming functionality with a sleek, minimalist interface.
Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Iridium Finish
The Iridium Black finish lends an air of sophistication and modernity with its deep, lustrous tone adding a touch of drama to stylish interiors. Supplied with black inserts and matching iridium rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic electrical circuits.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 12th October 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
