Data Sheet
Product Code: XDS5UACWS
Product Description: 2-Gang 13A Switched Socket with 20W Shared USB A & C Charging Ports
Range: Screwless
Finish: Brushed Steel
Product Category: Sockets with USB A Charging
Insert/Knob Colour: Steel Rocker
Barcode: 5021575009118

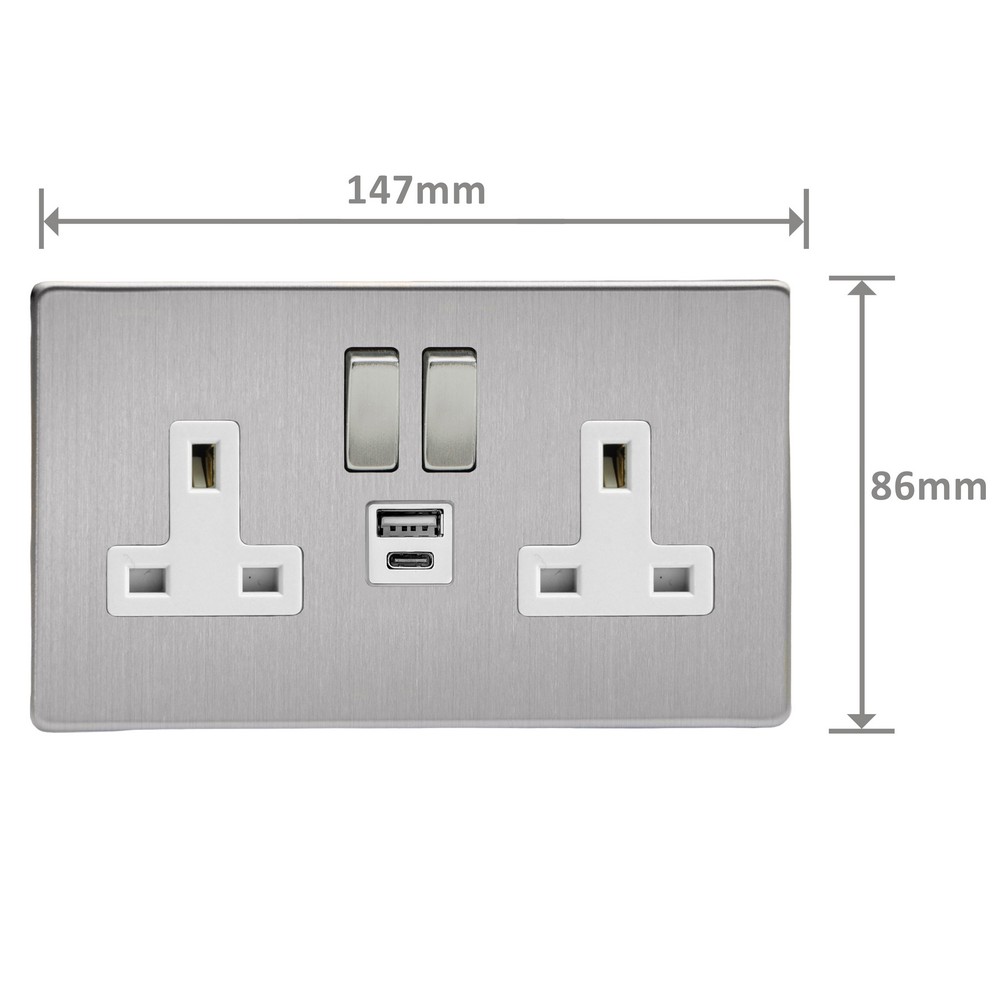

Dimensions: 86x147x31mm
Faceplate Depth: 4mm
Net Weight: 199g
Gross Weight: 172g
Fixing Centres: 120.6mm
Depth from Mounting Face: 23.1mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: USB: 20W
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Product Features
Ideal for charging iPad, iPhone, tablets, mobiles and cameras, supporting Qualcomm QuickCharge 3.0, and Power Delivery 3.0.
Features VARILIGHT Smart Port technology making it suitable for all types of devices.
The USB port detects the device to be charged and optimises its output accordingly to achieve the fastest possible charging speed.
Sleek, low-profile screwless faceplate
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Brushed Steel Finish
Stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. Paired with black or white inserts and matching brushed steel rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Please note recommended back box depth relies on efficient cable routing.. Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 15th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
