Data Sheet
Product Code: XDS5WS
Product Description: 2-Gang 13A Double Pole Switched Socket
Range: Screwless
Finish: Brushed Steel
Product Category: Sockets
Insert/Knob Colour: Steel/White Insert
Barcode: 5021575480467

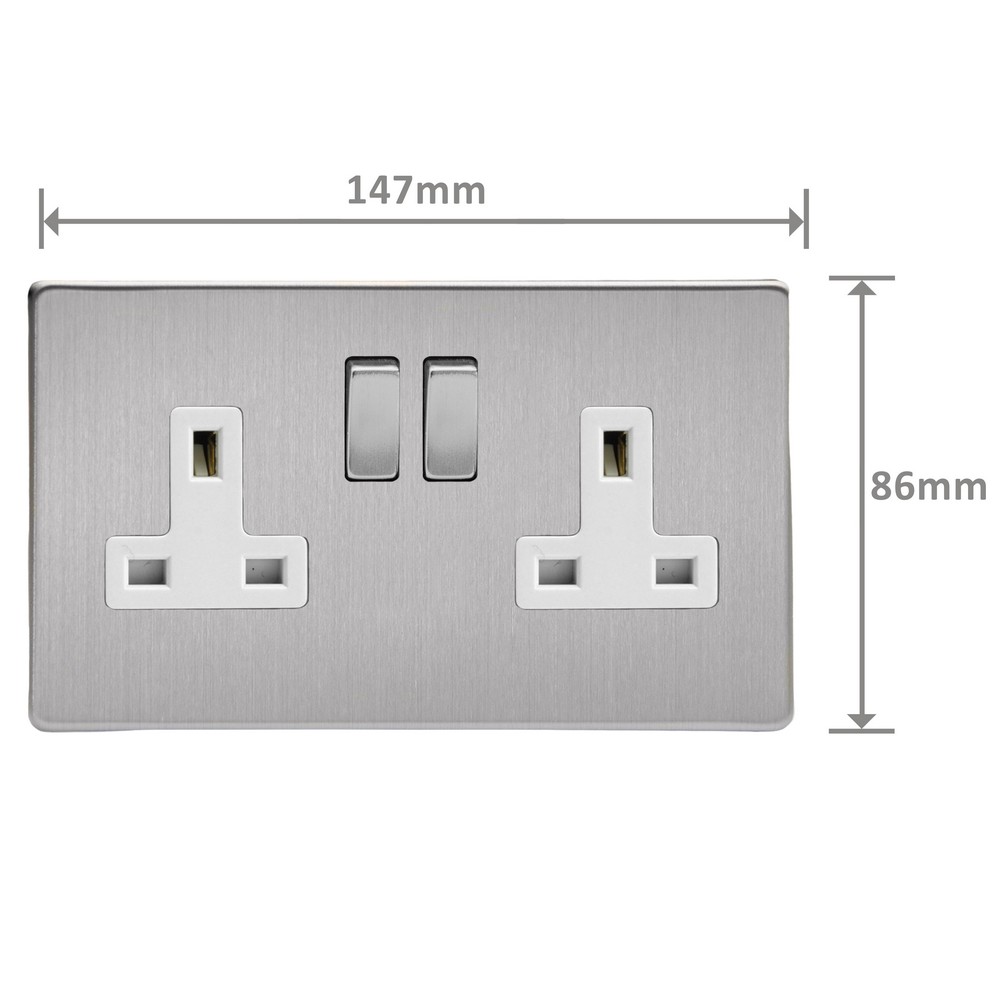

Dimensions: 86x147x32mm

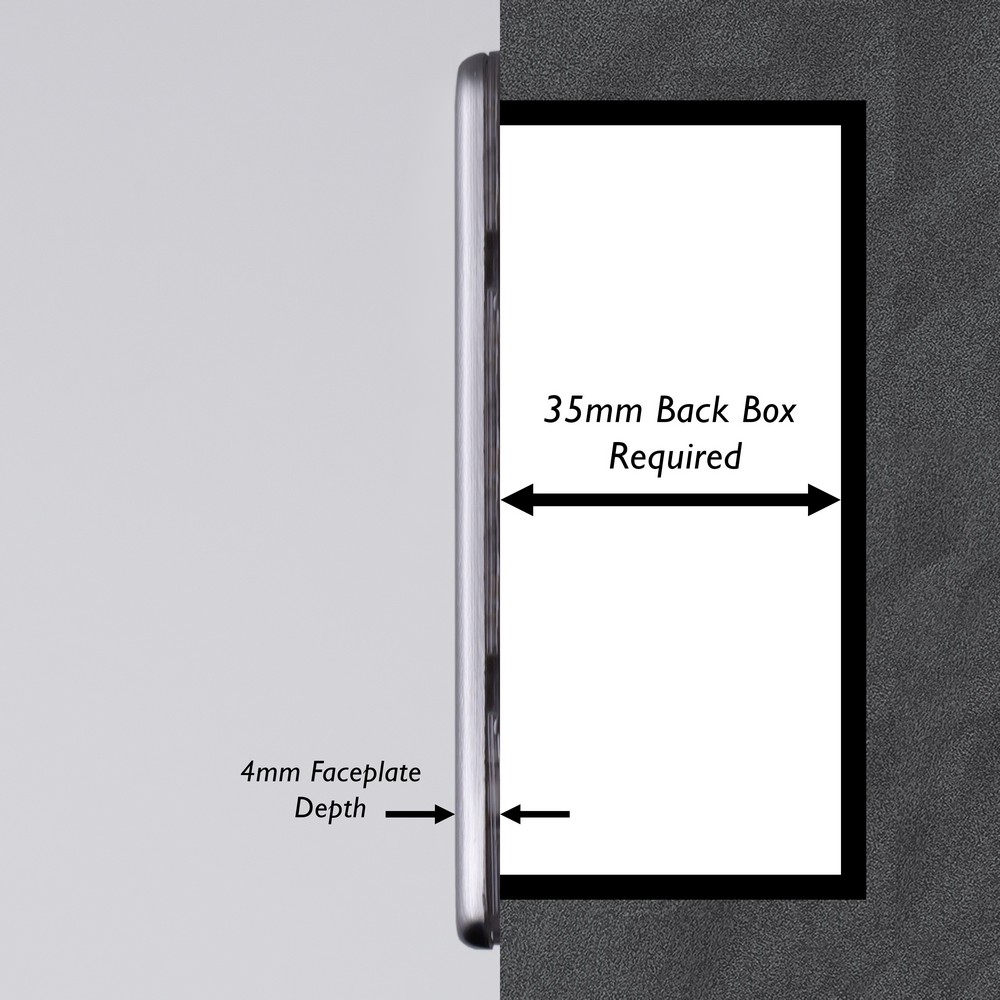

Faceplate Depth: 4mm
Net Weight: 229g
Gross Weight: 232g
Fixing Centres: 120.6mm
Depth from Mounting Face: 22.4mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 13A
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Product Features
Double pole switching for safer operation
Sleek, low-profile screwless faceplate
Featuring dual earth terminals
Screwless Collection
Each finish is presented on low profile screwless faceplate, with hidden fixings contributing to an understated aesthetic. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.Brushed Steel Finish
Stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. Paired with black or white inserts and matching brushed steel rockers. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 25th January 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
