Data sheet: XDY6FONS.BC

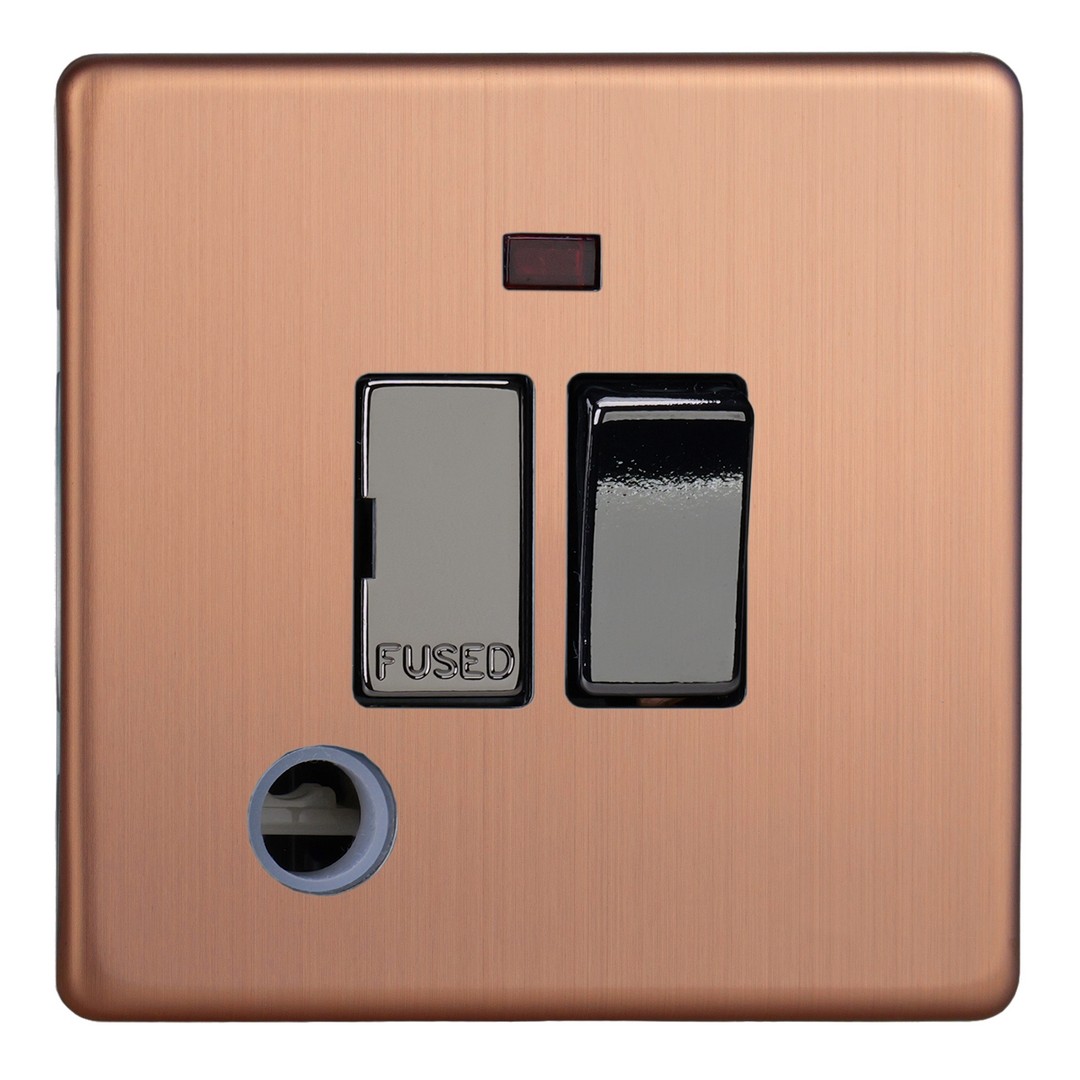

13A Switched Fused Spur with Neon with Flex Outlet, Urban Screwless Brushed Copper (XDY6FONS.BC)

Data sheet

XDY6FONS.BC 13A Switched Fused Spur with Neon with Flex Outlet

Range Urban Screwless Finish Brushed Copper

Product features

Double pole switching isolates live and neutral for added safety
Neon indicator shows at a glance when it's on
Cable clamp keeps the flex secure
Takes a standard 25.4x6.4mm fuse
Easily replaceable 13A fuse included
Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box

Product

Product code: XDY6FONS.BC
Category: Fused Spur Connection Units
Range: Urban Screwless
Finish: Brushed Copper
Insert / knob colour: Iridium Insert
Barcode: 5021575038729

Size and fitting

Dimensions: 86x86x30mm
Faceplate depth: 4mm
Fixing centres: 60.3mm
Depth from mounting face: 22.2mm
Recommended back box depth: 25mm
Net weight: 176g
Gross weight: 178g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 13A
Maximum current rating: 13A
Terminal (Live): 4.5mm, capacity 4 x 2.5mm²
Terminal (Neutral): 4.5mm, capacity 4 x 2.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS 1363-4
Commodity code: 85389091

Declaration of Conformity

Urban Screwless collection

The Urban Screwless range is inspired by the latest trends in interior design, bringing an edge to stylish spaces. Each finish is presented on a low profile faceplate, with hidden fixings contributing to an understated aesthetic.

Brushed Copper finish

Combining the warmth of copper and the finesse of a brushed finish, Brushed Copper brings a feeling of luxury to any space.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
