Data sheet: XDYKR1S.MB

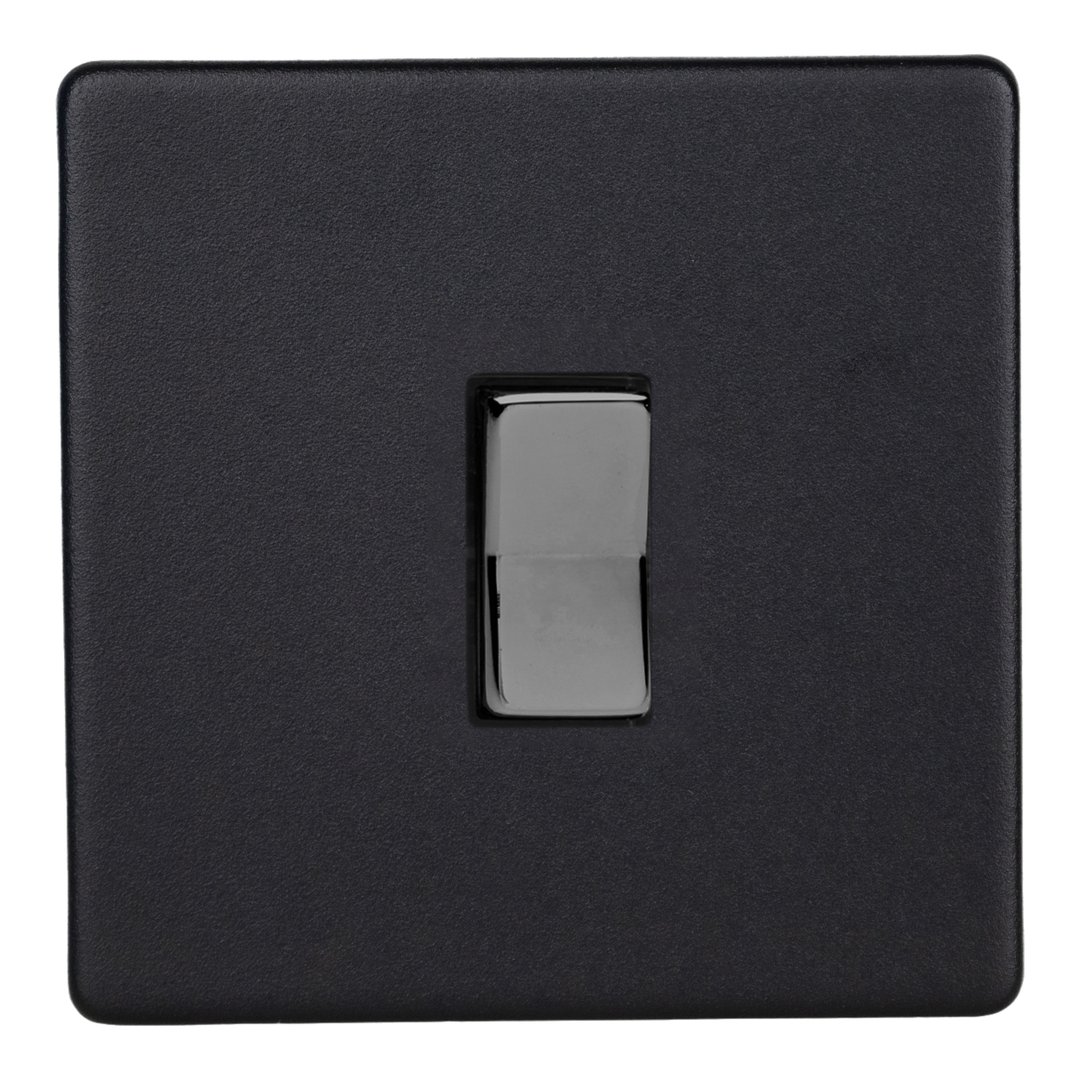

1-Gang 10A Centre-Off Retractive Switch, Urban Screwless Matt Black (XDYKR1S.MB)

Data sheet

XDYKR1S.MB 1-Gang 10A Centre-Off Retractive Switch

Name: 1-Gang 10A Centre-Off Retractive Switch
Brand: VARILIGHT
SKU: XDYKR1S.MB

Single Centre-Off Retractive Switch

Range Urban Screwless Finish Matt Black

Product features

Push up or down and it springs back to the centre, ready for the next press
For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
Install a V-Pro Micro Dual Push Control In-Line Dimmer Pack behind the switch for up and down dimming with nothing on the wall but the switch itself.
10A rated
Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box

Product

Product code: XDYKR1S.MB
Category: Rocker Switches
Range: Urban Screwless
Finish: Matt Black
Insert / knob colour: Iridium Insert
Barcode: 5021575020793

Size and fitting

Dimensions: 86x86x23mm
Faceplate depth: 4mm
Fixing centres: 60.3mm
Depth from mounting face: 18.4mm
Recommended back box depth: 25mm
Net weight: 116g
Gross weight: 118g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 10A
Maximum current rating: 10A
Terminal (Live): 3.3mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 60669-1
Commodity code: 85365007

Declaration of Conformity

Urban Screwless collection

The Urban Screwless range is inspired by the latest trends in interior design, bringing an edge to stylish spaces. Each finish is presented on a low profile faceplate, with hidden fixings contributing to an understated aesthetic.

Matt Black finish

The Matt Black finish is powder-coated to give a tactile, textured finish, which is tough, durable and resistant to fingerprints.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
