Click below to print the data sheet for XFS1D
Further information:
Data Sheet
Product Code: XFS1D

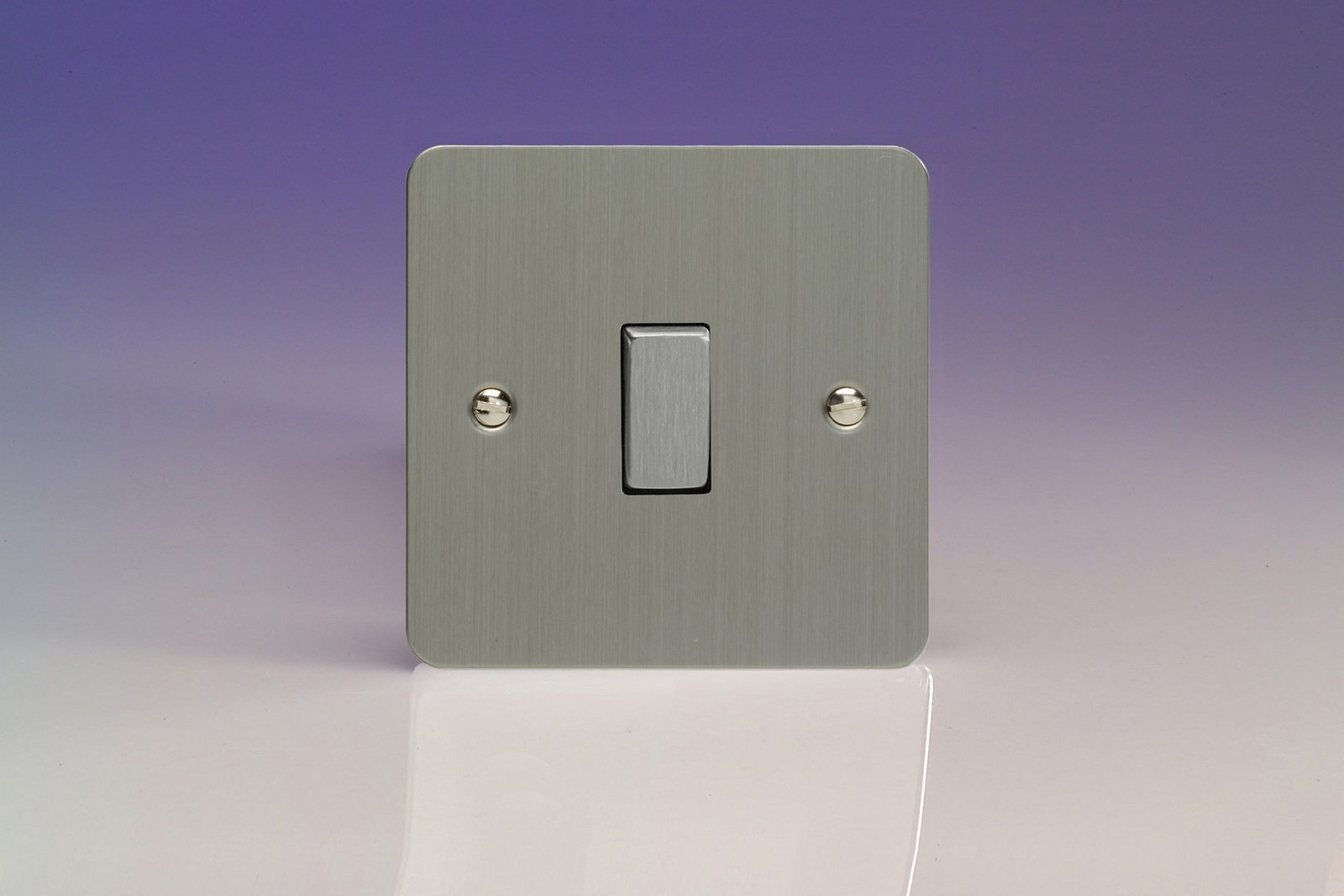

Product Description: 1-Gang 10A 1- or 2-Way Rocker Switch
Range: Ultraflat
Finish: Brushed Steel
Product Category: Rocker Switches
Insert/Knob Colour: Brushed Steel Rocker
Barcode: 5021575710472
Dimensions: 89x89x25mm
Faceplate Depth: 1mm
Net Weight: 106g
Gross Weight: 108g
Fixing Centres: 60.3mm
Depth from Mounting Face: 19mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 10A
Maximum Current Rating: 10A
Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85365007
Product Features
1- or 2-Way switching
Suitable for controlling both mains and low voltage lighting
Contemporary, ultra-slim faceplate
Ultraflat Collection
The Ultraflat range features a slim profile faceplate and provides an understated modern look. Cut from high quality stainless steel, this minimalist range will enhance any interior design scheme.
Brushed Steel Finish
Stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. Paired with black or white inserts and matching brushed steel rockers. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.

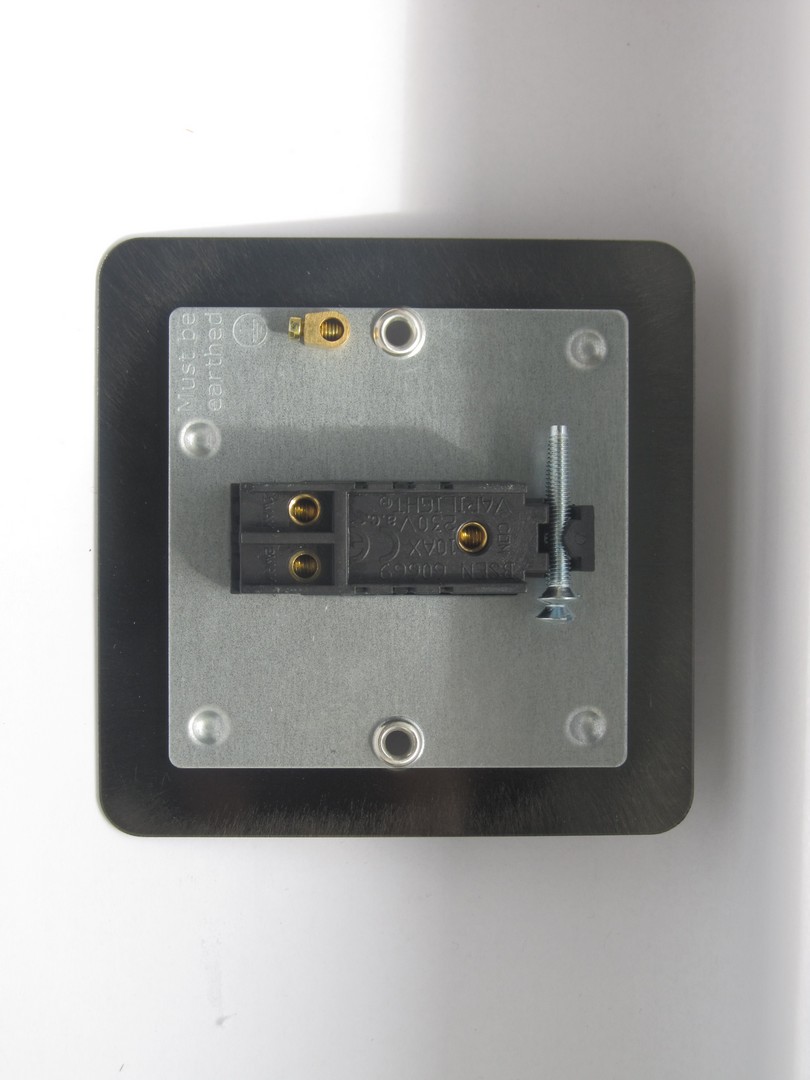

Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
23rd February 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
