Data Sheet
Product Code: XG45PB
Product Description: 45A Cooker Panel with 13A Double Pole Switched Socket Outlet (Red Rocker)
Range: Classic

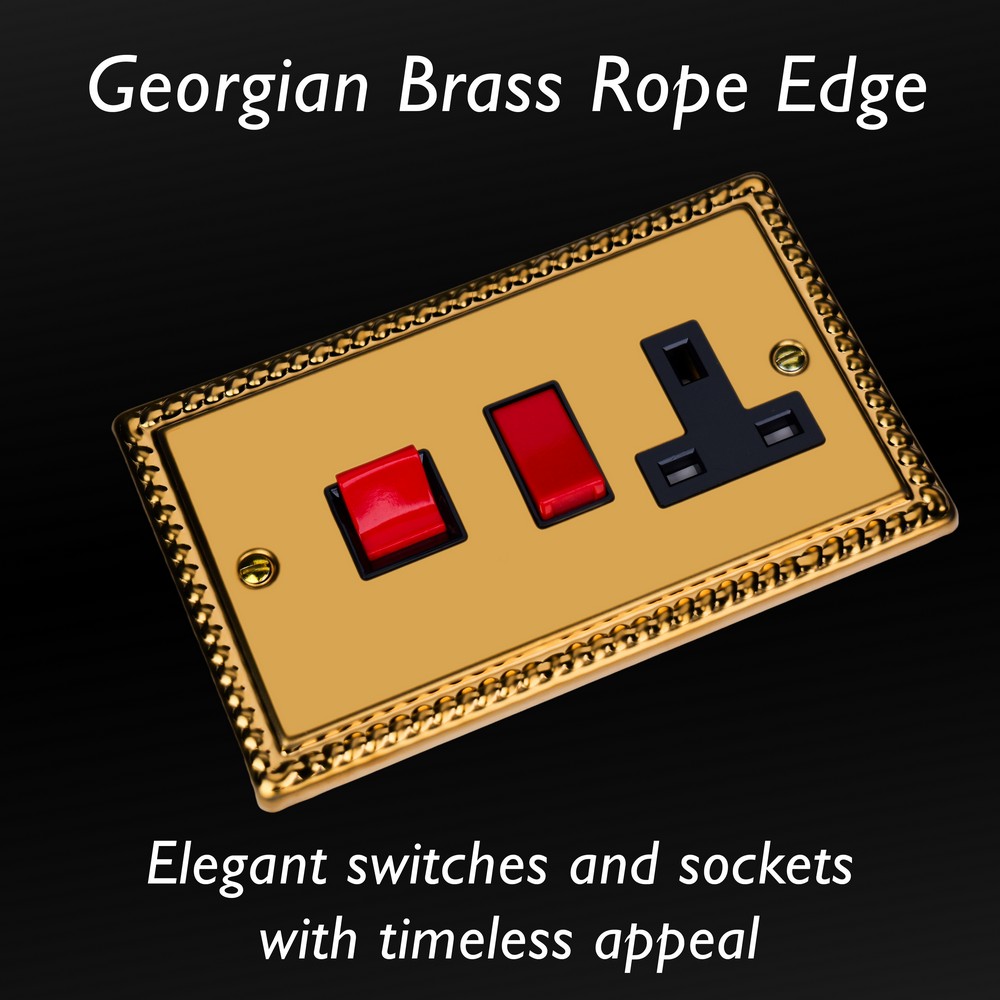

Finish: Georgian Brass
Product Category: Cooker Switches
Insert/Knob Colour: Black/Red Insert
Barcode: 5021575750379

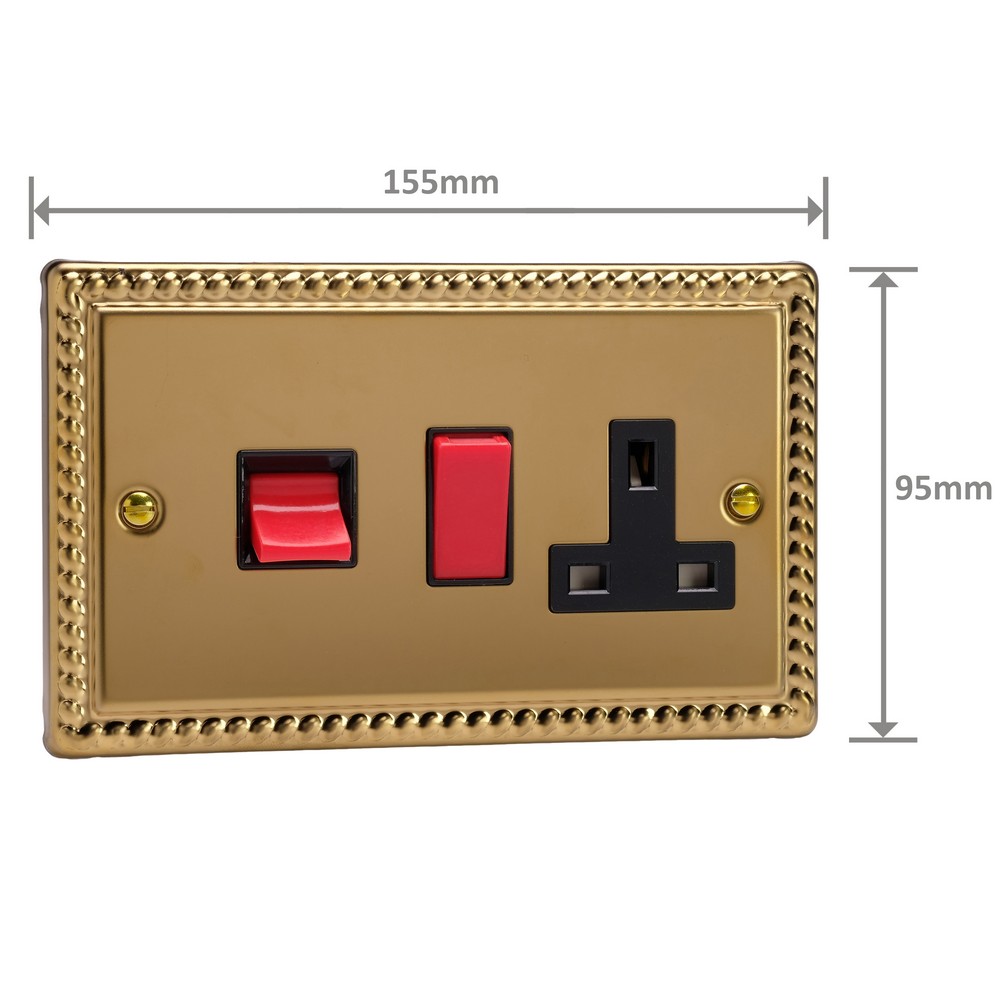

Dimensions: 95x155x35mm
Faceplate Depth: 7mm
Net Weight: 329g
Gross Weight: 332g
Fixing Centres: 120.6mm
Depth from Mounting Face: 18.7mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Cooker Switch: 45A | Socket: 13A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Earth) Diameter: 6.4mm; Capacity: 2 x 10mm²
Product Features
Double pole switching
Double sized plate with 13A socket
Roped edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 4177
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 13th May 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
