Click below to print the data sheet for XGFOB
Further information:
Data Sheet
Product Code: XGFOB
Product Description: 16A Flex Outlet Plate
Range: Classic
Finish: Georgian Brass
Product Category: Other Items
Insert/Knob Colour: Black Insert
Barcode: 5021575751093

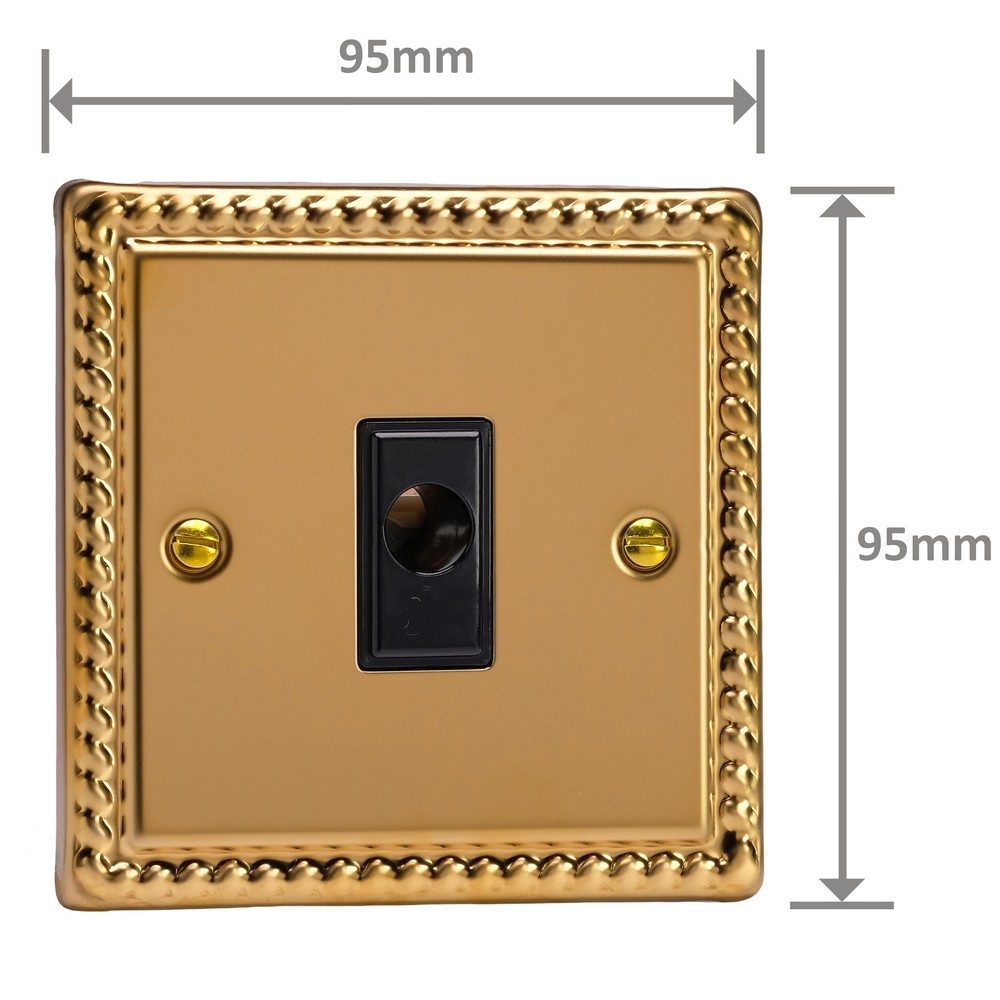

Dimensions: 95x95x35mm
Faceplate Depth: 7mm
Net Weight: 106g
Gross Weight: 108g
Fixing Centres: 60.3mm
Depth from Mounting Face: 16.5mm
Recommended Back Box Depth: 16mm
Operating Voltage: N/A
Maximum Load Rating: 16A
Maximum Current Rating: 16A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS EN 60669-1
Commodity Code: 85389091
Product Features
Connects fixed appliances via a flex, with no plug in sight
Cable clamp keeps the flex secure
Ideal for boilers, heaters and cooker hoods
Bevel-edge faceplate, 7mm deep with brass screws, fits a 16mm back box
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
19th October 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
