Data Sheet

Product Code: XTRP15AW

Product Description: 1-Gang 15A Round Pin Socket

Range: Classic

Finish: Brushed Steel

Product Category: Round Pin Sockets

Insert/Knob Colour: White Insert

Barcode: 5021575032963

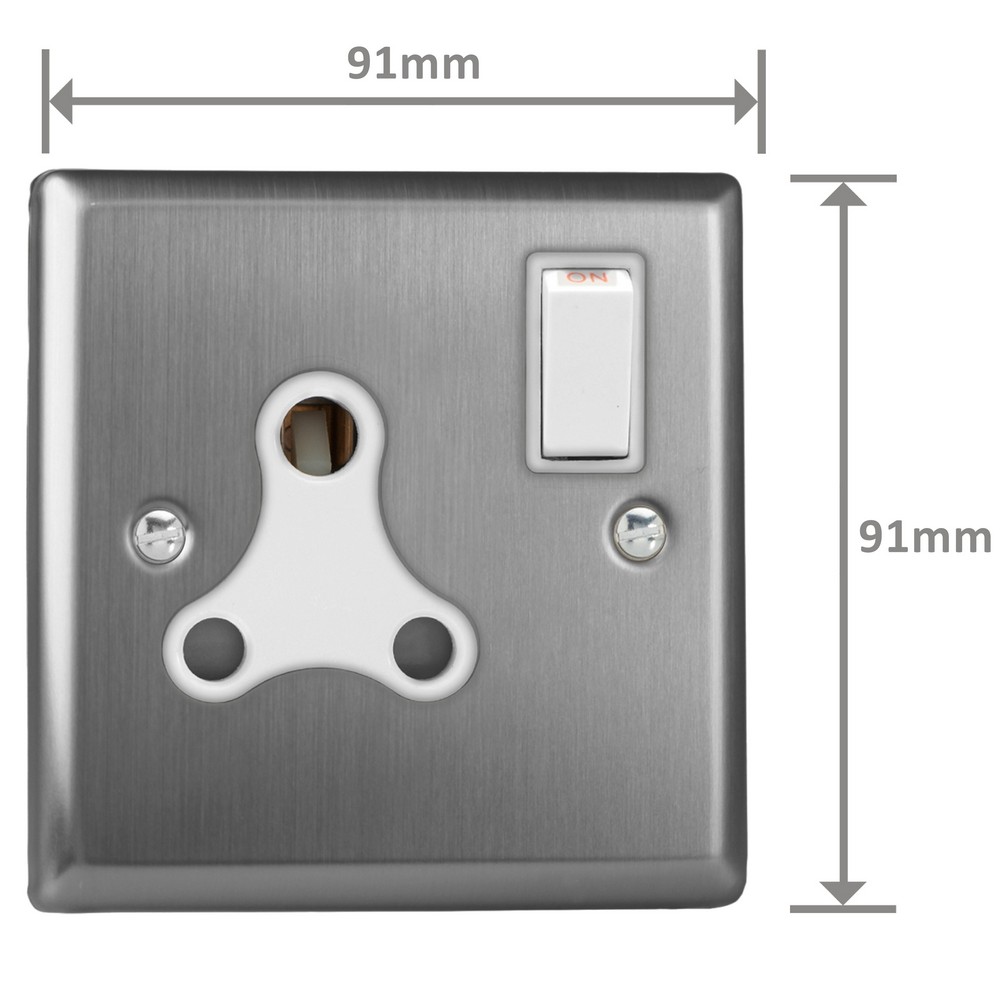

Dimensions: 91x91x34mm

Faceplate Depth: 8mm

Net Weight: 136g

Gross Weight: 138g

Fixing Centres: 60.3mm

Depth from Mounting Face: 22.9mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 15A

Maximum Current Rating: 15A

Terminal (Live) Diameter: 5.5mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 5.5mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 5.5mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS 546

Commodity Code: 85366990

Declaration of Conformity

Product Features

  Suitable for export markets only

  Bevelled edge faceplate

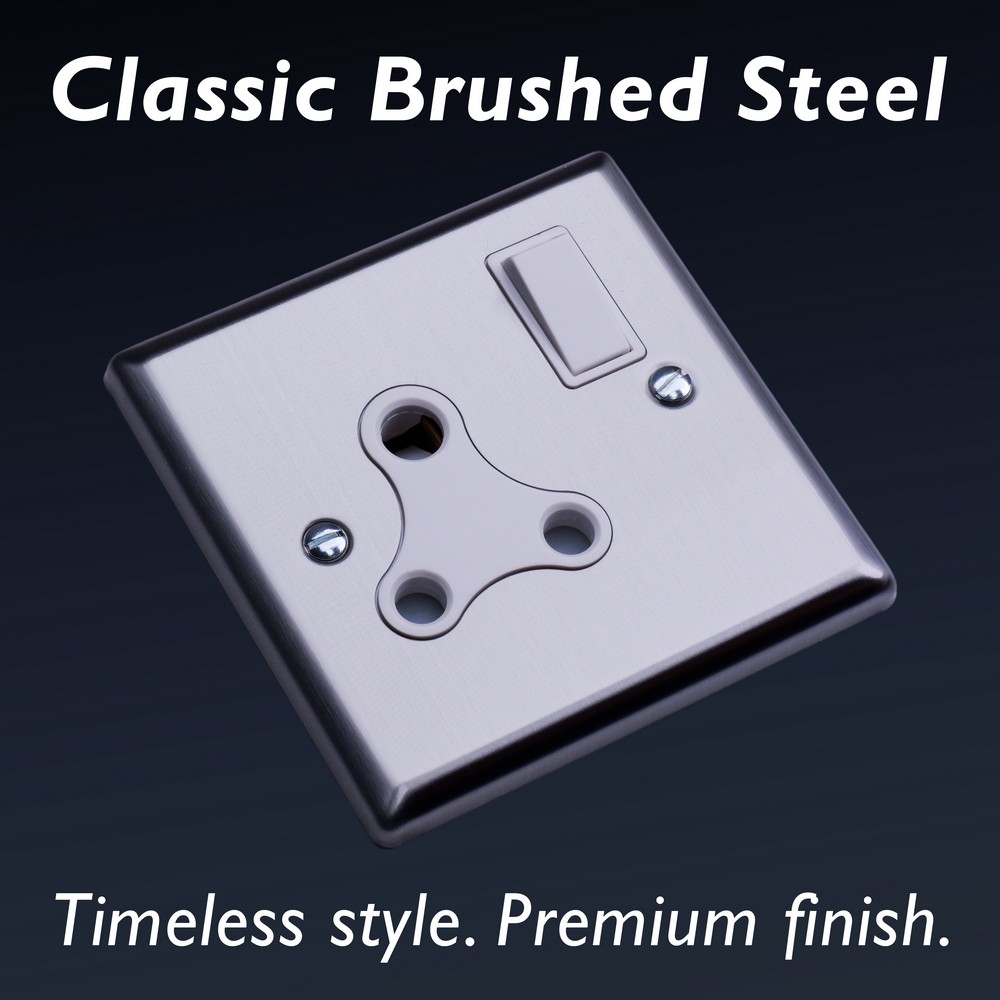

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.

Brushed Steel Finish
With its clean, understated style, Brushed Steel brings effortless sophistication to any room ? a finish chosen by designers for its versatility.Varilight decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
