Data sheet: XYBR1V.SL

1-Gang 10A Retractive Switch, Vogue Slate Grey (XYBR1V.SL)

Data sheet

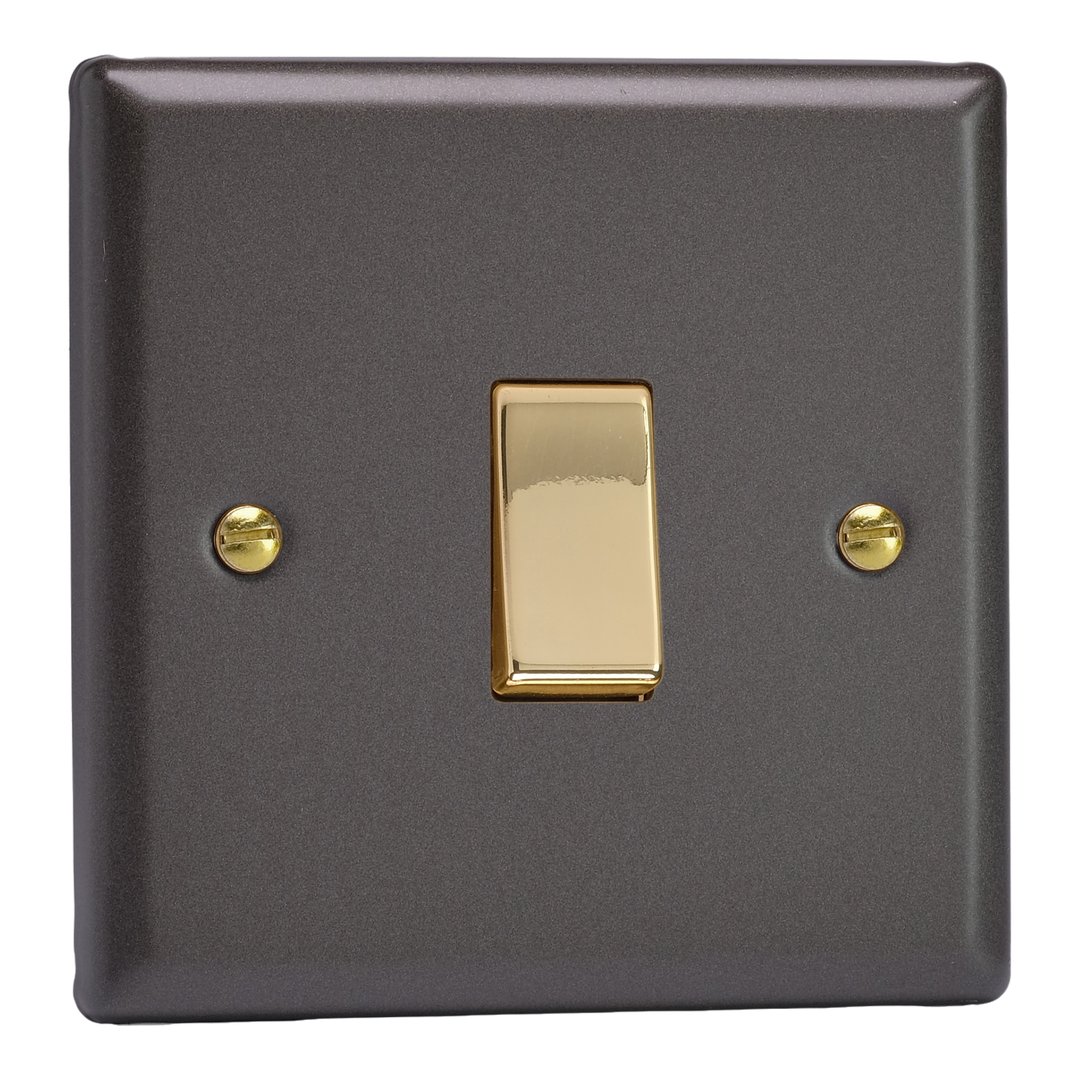

XYBR1V.SL 1-Gang 10A Retractive Switch

Name: 1-Gang 10A Retractive Switch
Brand: VARILIGHT
SKU: XYBR1V.SL

Single Push Retractive Switch

Range Vogue Finish Slate

Product features

Retractive push to make switch that springs back when released
For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
Install a V-Pro Micro Push Control In-Line Dimmer Pack behind the switch for intelligent LED dimming with nothing on the wall but the switch itself.
10A rated
Art deco inspired faceplate, 8mm deep with brass screws, fits a 16mm back box

Product

Product code: XYBR1V.SL
Category: Rocker Switches
Range: Vogue
Finish: Slate
Insert / knob colour: Brass Rocker
Barcode: 5021575023596

Size and fitting

Dimensions: 91x91x25mm
Faceplate depth: 8mm
Fixing centres: 60.3mm
Depth from mounting face: 12.9mm
Recommended back box depth: 16mm
Net weight: 96g
Gross weight: 98g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 10A
Maximum current rating: 10A
Terminal (Live): 3.3mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 60669-1
Commodity code: 85365007

Declaration of Conformity

Vogue collection

Inspired by the glamour of art deco, the Vogue collection will lift the decor of any room. Polished Brass switches, toggles and dimmer knobs are paired with the highest quality metal faceplates, to bring a feeling of luxury to any room.

Slate finish

Slate is a deep, soft grey with a subtle stone-like texture, giving a modern, understated backdrop that is elevated by the signature polished brass rockers, toggles and dimmer knobs of the Vogue Collection.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
