Data Sheet

Product Code: KBP101

This product can be made with our Matrix System

Product Description: 1-Gang 2-Way V-Com Push On/Off Rotary LED Dimmer 1 x 0-100W

Range: Classic

Finish: Brushed Brass

Product Category: LED Dimmers

Insert/Knob Colour: Brass Knob

Barcode: 5021575034110

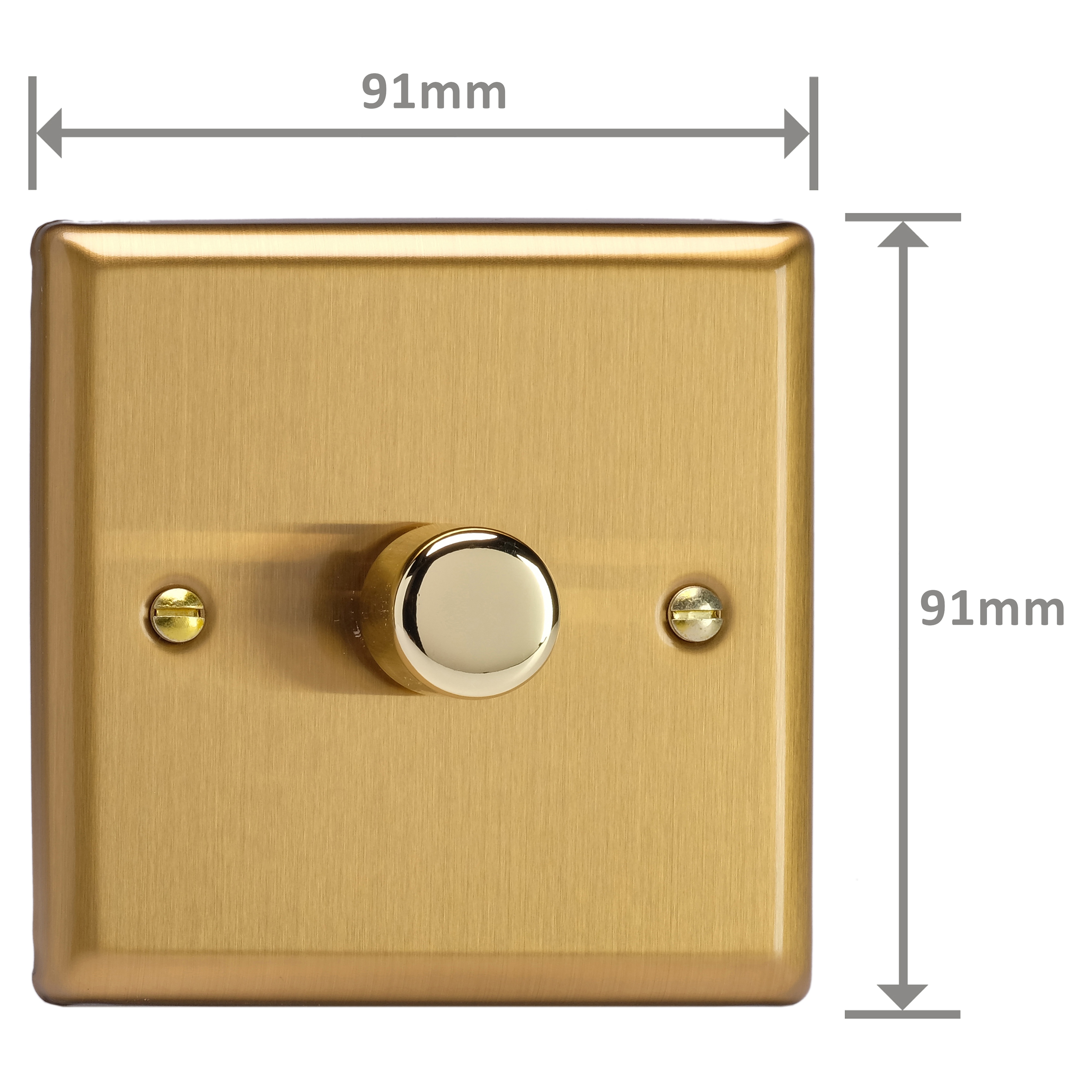

Dimensions: 91x91x47mm

Faceplate Depth: 8mm

Net Weight: 136g

Gross Weight: 138g

Fixing Centres: 60.3mm

Depth from Mounting Face: 16.6mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: LED: 100W

Maximum Current Rating: 0A

Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Commercial & domestic lighting circuits including many dimmable LEDS. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required.. Do not overload. Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-2-1

Commodity Code: 85365005

Declaration of Conformity

Product Features

  V-Com intelligent leading edge (triac) dimming, our best-value intelligent dimmer for LED

  Dims 0-100W of lighting with no maximum number of lamps

  DRIVE function starts up lamps that will not switch on at low brightness

  Adjustable minimum and maximum brightness to use the full range of your lamps

  Choice of driving modes to suit any LED load

  Soft start extends lamp life, with intelligent overload protection

  Push on/off, rotate to dim

  Bevel-edge faceplate, 8mm deep with brass screws, fits a 25mm back box

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.
