Instruction leaflet PDF Watch the video YouTube
VARILIGHT

Data sheet: KBP102

V-Com

Data sheet

KBP102 2-Gang 2-Way V-Com Push On/Off Rotary LED Dimmer 2 x 0-100W

Double V-Com Rotary 2-Way LED Dimmer 2 x 0-100W

This product can be made with our Matrix System.

Range Classic Finish Brushed Brass

Product features

  • V-Com intelligent leading edge (triac) dimming, our best-value intelligent dimmer for LED
  • Dims 0-100W of lighting per circuit with no maximum number of lamps
  • DRIVE function starts up lamps that will not switch on at low brightness
  • Adjustable minimum and maximum brightness to use the full range of your lamps
  • Choice of driving modes to suit any LED load
  • Soft start extends lamp life, with intelligent overload protection
  • Push on/off, rotate to dim
  • Bevel-edge faceplate, 8mm deep with brass screws, fits a 25mm back box

Product

Product code
KBP102
Category
LED Dimmers
Range
Classic
Finish
Brushed Brass
Insert / knob colour
Brass Knob
Barcode
5021575034127

Size and fitting

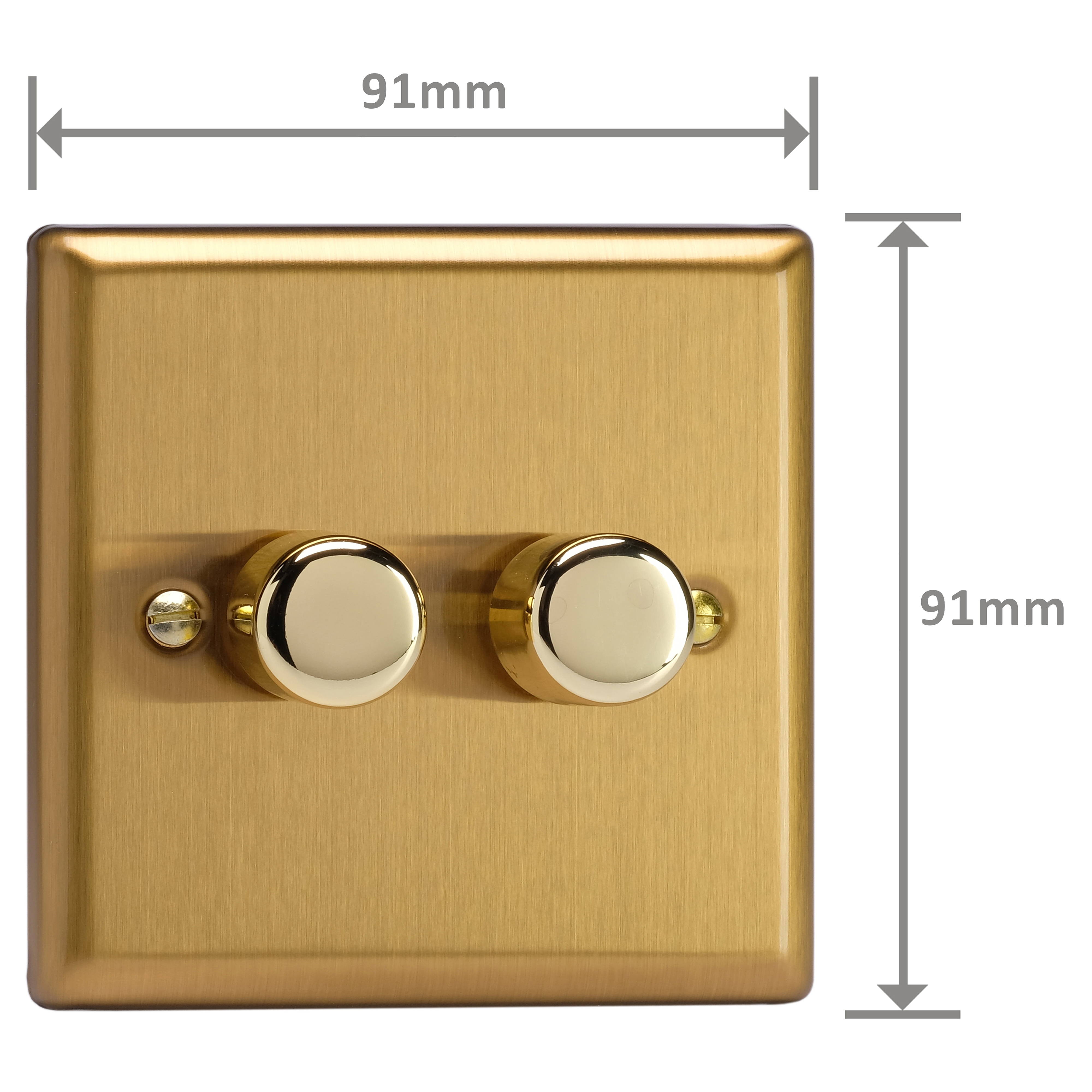

Dimensions
91x91x47mm
Faceplate depth
8mm
Fixing centres
60.3mm
Depth from mounting face
16.6mm
Recommended back box depth
25mm
Net weight
156g
Gross weight
158g

Electrical

Operating voltage
230V 50Hz
Maximum load rating
LED: 100W
Terminal (Live)
3.2mm, capacity 3 x 1.5mm²
Terminal (Earth)
3.3mm, capacity 4 x 1.5mm²

Safety and compliance

Intended applications
Indoor Use Only. Commercial & domestic lighting circuits including many dimmable LEDS. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice
Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. This product's earth tag is fixed with a single rivet, a second rivet on the other screw hole is not required. Do not overload. Product Must Be Earthed.
Applicable safety standard
BS EN 60669-2-1
Commodity code
85365005

Declaration of Conformity

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Brass finish

The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
