Product Code: KQP102W
This product can also be made using our Matrix System, using the products WQ2W + MKP100 x 2

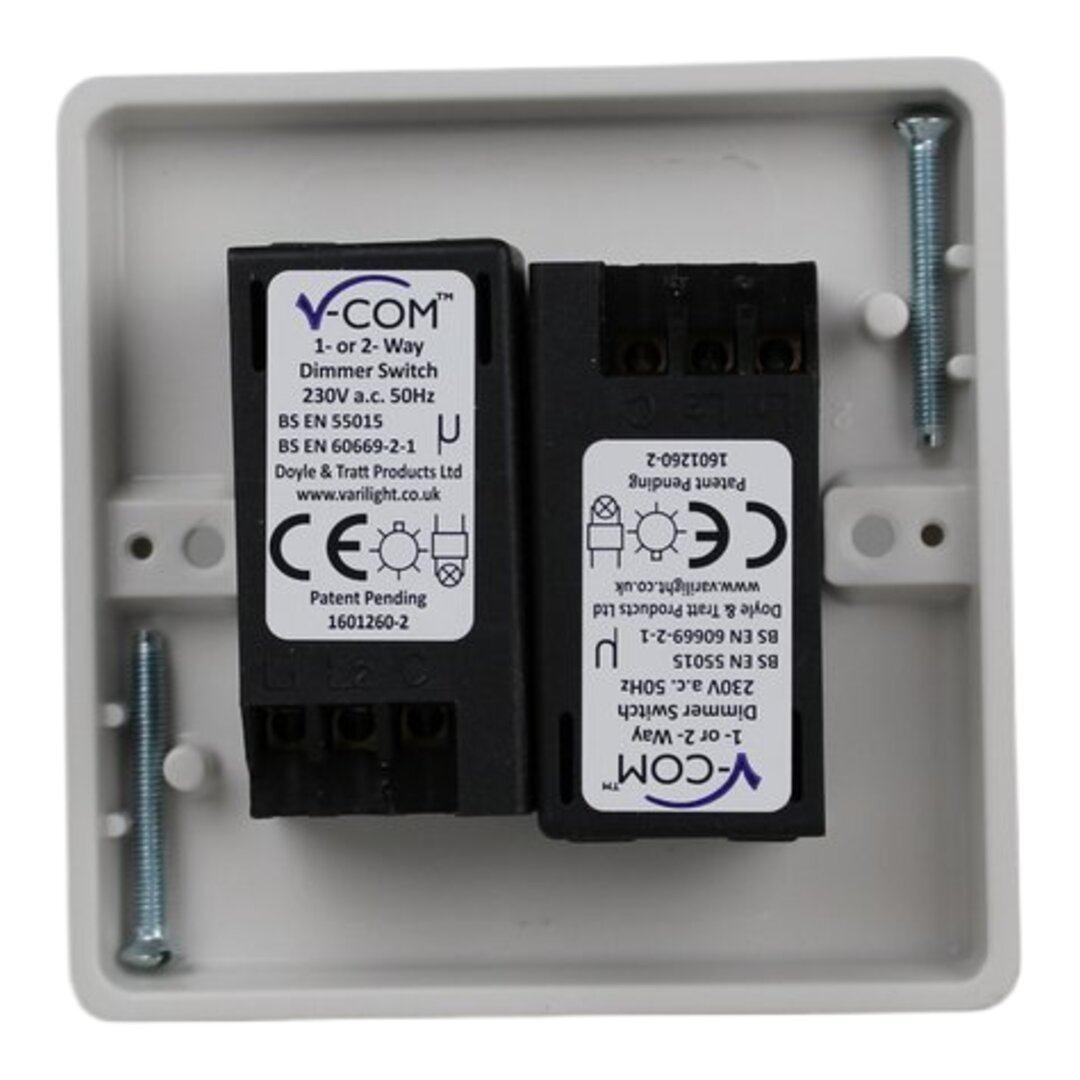

Product Description: 2-Gang 2-Way V-Com Push On/Off Rotary LED Dimmer 2 x 0-100W
Range: White
Finish: White Plastic
Product Category: LED Dimmers
Insert/Knob Colour: White Knob
Barcode: 5021575003949
Dimensions: 85x85x47mm
Faceplate Depth: 11mm
Net Weight: 126g
Gross Weight: 128g
Fixing Centres: 60.3mm
Depth from Mounting Face: 14.6mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: LED: 100W
Maximum Current Rating: 0.4A
Terminal (Live) Diameter: 3.2mm; Capacity: 3 x 1.5mm²
Product Features
V-Com intelligent TRIAC leading edge dimming technology
Soft start feature and intelligent overload protection
Adjustable minimum brightness setting and choice of driving modes to optimise the dimming performance of a given LED lighting load
Durable White Plastic
Intended Applications: Indoor Use Only. Commercial & domestic lighting circuits including many dimmable LEDS.
Safety Advice: Not suitable for use with non-dimmable fluorescent bulbs and tubes, wire-wound or toroidal transformers or electric motors. Do not overload.
Applicable Safety Standard: BS EN 60669-2-1
Commodity Code: 85365005
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 13th June 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
