Click below to print the data sheet for XB4B
Further information:
Data Sheet
Product Code: XB4B
Product Description: 1-Gang 13A Double Pole Switched Socket
Range: Classic
Finish: Brushed Brass
Product Category: Sockets
Insert/Knob Colour: Black Insert
Barcode: 5021575011685

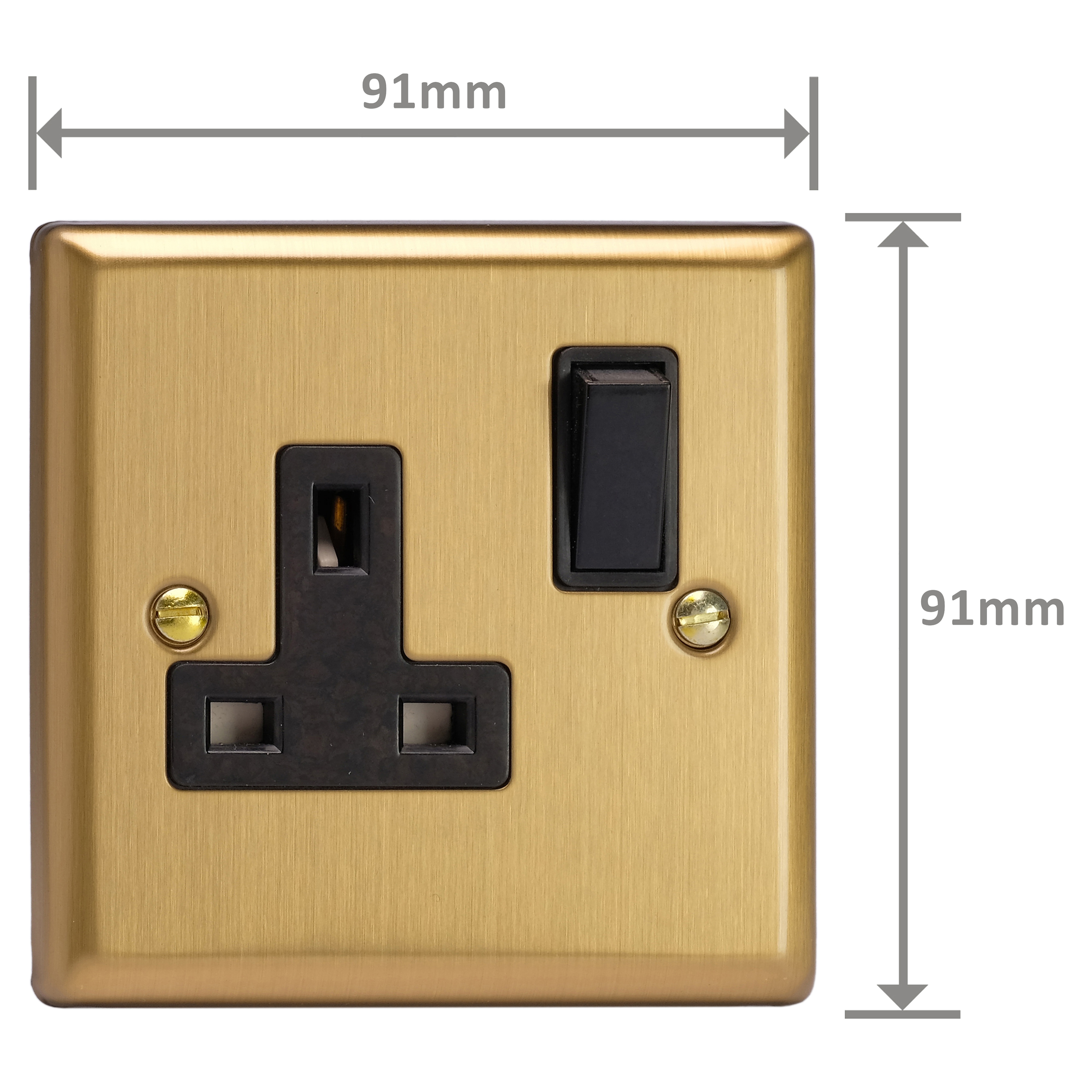

Dimensions: 91x91x31mm
Faceplate Depth: 8mm
Net Weight: 136g
Gross Weight: 138g
Fixing Centres: 60.3mm
Depth from Mounting Face: 17.8mm
Recommended Back Box Depth: 25mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: 13A
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²
Product Features
Double pole switching for safer operation
Bevelled edge faceplate
Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior. Each plate is expertly manufactured in the UK to the highest standard.Brushed Brass Finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class. Varilight?s decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-2
Commodity Code: 85366990
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 13th June 2025 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
