Data Sheet
Product Code: XDQ6UDS

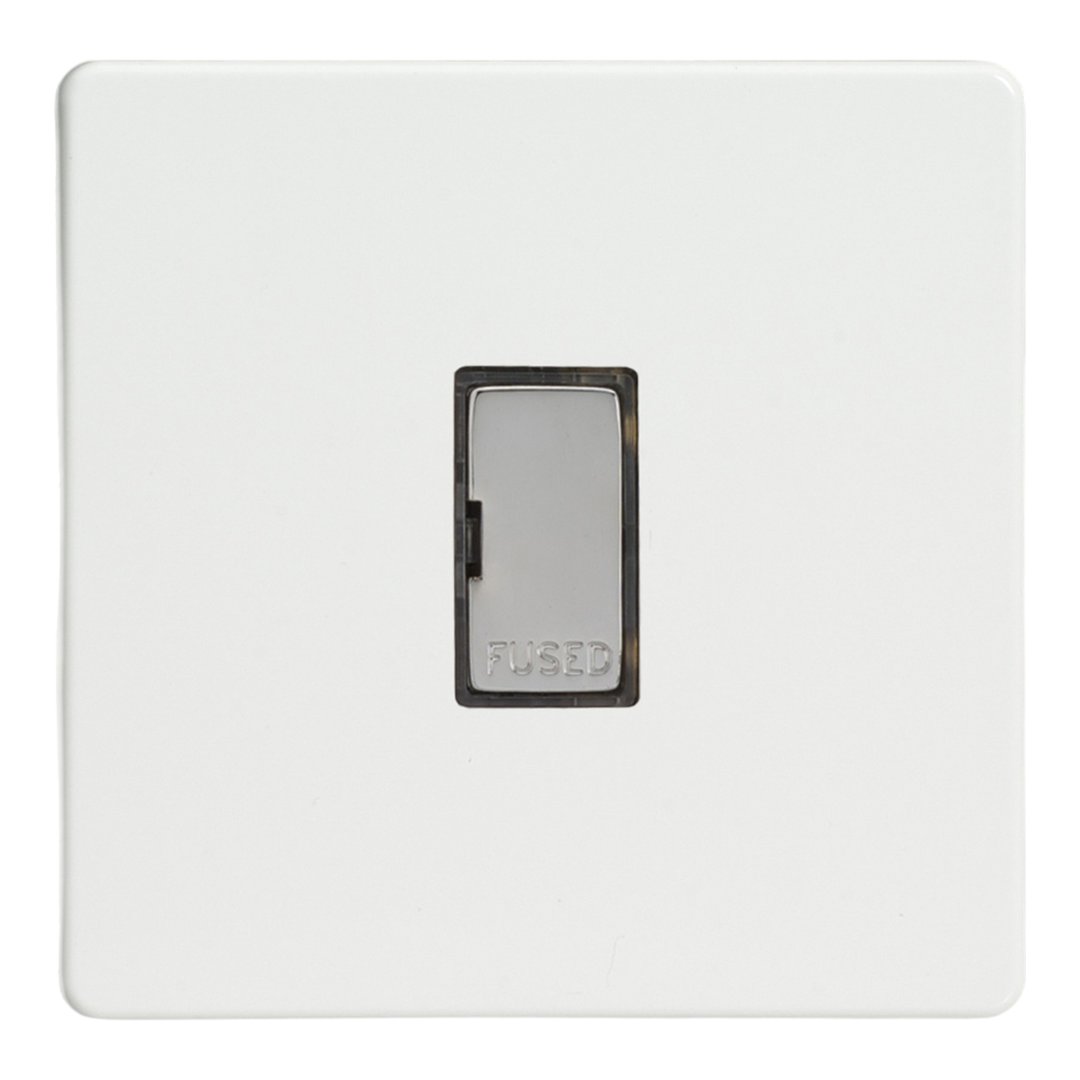

Product Description: 13A Unswitched Fused Spur
Range: Screwless
Finish: Premium White
Product Category: Fused Spur Connection Units
Insert/Knob Colour: Chrome Insert
Barcode: 5021575141658
Dimensions: 86x86x30mm
Faceplate Depth: 4mm
Net Weight: 166g
Gross Weight: 168g
Fixing Centres: 60.3mm
Depth from Mounting Face: 22.7mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Refer to Fuse Value
Maximum Current Rating: 13A
Terminal (Live) Diameter: 4.5mm; Capacity: 4 x 2.5mm²
Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²
Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any Decorative products, or install on damp plaster.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 1363-4
Commodity Code: 85389091
Product Features
Holds standard 25.4x6.4mm fuse
Replaceable 13A fuse included
Sleek, low-profile screwless faceplate
Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.
Premium White Finish
The Premium White finish is created using a high gloss polycarbonate and is beautifully presented on low profile screwless faceplate, paired with chrome inserts and featuring hidden fixings, contributing to its understated appeal. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
Rear View:
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue:
18th April 2026 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
