Product Description: 45A Cooker Panel with 13A Double Pole Switched Socket Outlet (Red Rocker)
10 YEAR GUARANTEE
BRITISH MADE
Range: Screwless
Finish: Brushed Steel
Product Category: Cooker Switches
Insert/Knob Colour: White/Red Insert
Barcode: 5021575481402

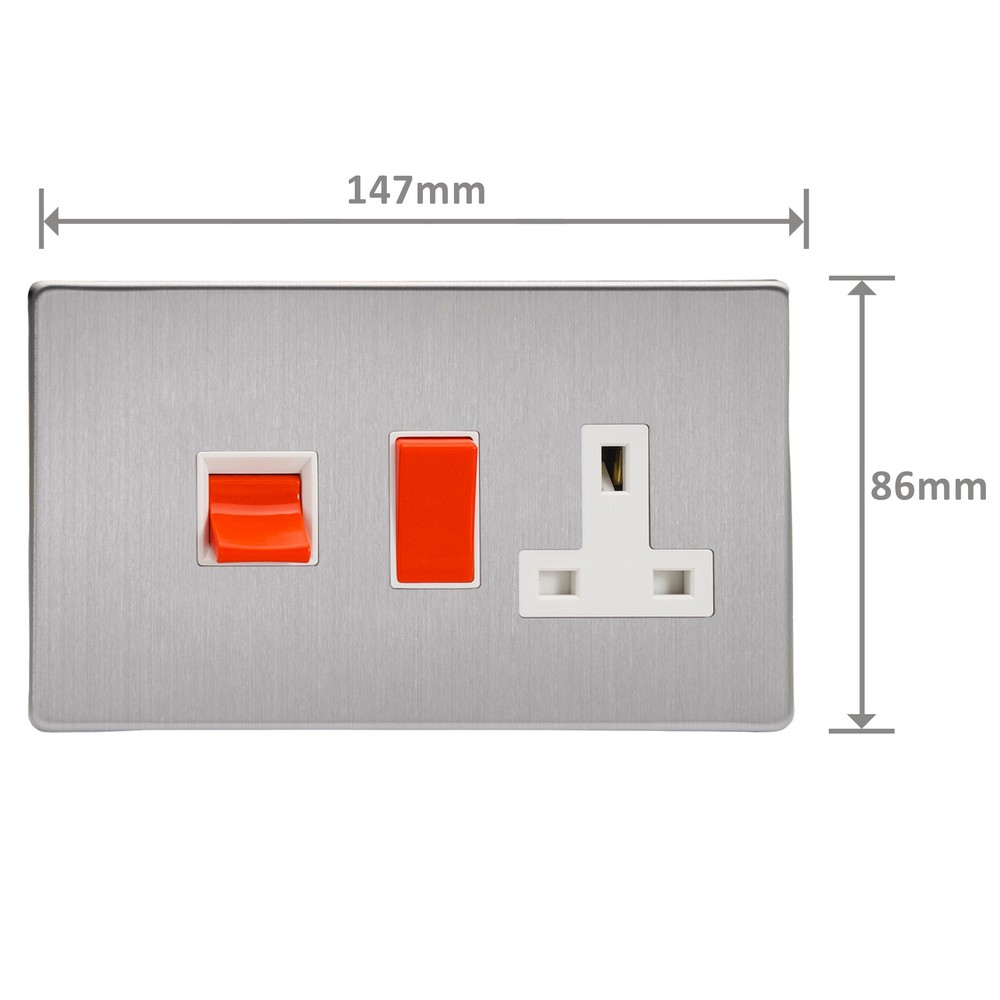

Dimensions: 86x147x35mm
Faceplate Depth: 4mm
Net Weight: 339g
Gross Weight: 342g
Fixing Centres: 120.6mm
Depth from Mounting Face: 24.9mm
Recommended Back Box Depth: 35mm
Operating Voltage: 230v 50Hz
Maximum Load Rating: Cooker Switch; 45A | Socket; 13A
Maximum Current Rating: 45A
Terminal (Live) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Neutral) Diameter: 6.4mm; Capacity: 2 x 10mm²
Terminal (Earth) Diameter: 6.4mm; Capacity: 2 x 10mm²
Product Features
Double pole switching
Double sized plate with 13A socket
Sleek, low-profile screwless faceplate
Intended Applications: Indoor Use Only. Domestic power supply.
Safety Advice: Product Must Be Earthed.
Applicable Safety Standard: BS 4177
Commodity Code: 85389091
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of Issue: 19th May 2024 © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
