Data Sheet

Product Code: XDSR1S

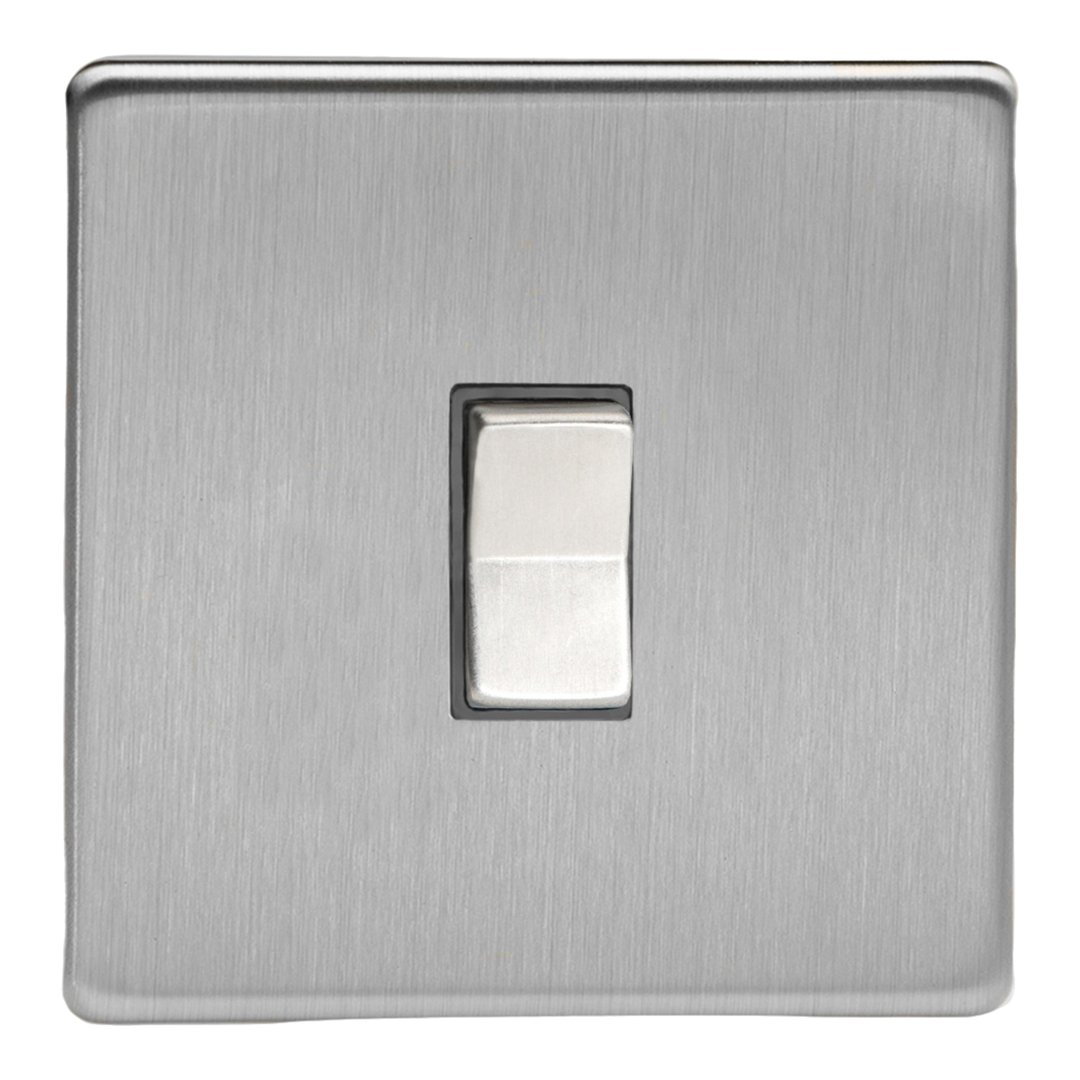

Product Description: 1-Gang 10A Centre-Off Retractive Switch

Range: Screwless

Finish: Brushed Steel

Product Category: Retractive Switches

Insert/Knob Colour: Chrome Button

Barcode: 5021575001150

Dimensions: 86x86x23mm

Faceplate Depth: 4mm

Net Weight: 116g

Gross Weight: 118g

Fixing Centres: 60.3mm

Depth from Mounting Face: 16.7mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 6A

Maximum Current Rating: 6A

Terminal (Live) Diameter: 3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 61058-1

Commodity Code: 85365011

Declaration of Conformity

Product Features

  Push up or down and it springs back to the centre, ready for the next press

  For blinds, doorbells and anything that needs a momentary signal rather than a permanent on

  Install a V-Pro Micro Dual Push Control In-Line Dimmer Pack behind the switch for up and down dimming with nothing on the wall but the switch itself.

  10A rated

  Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.

Brushed Steel Finish
Stunning Brushed Steel is perennially popular with interior designers and all those wanting accessories with timeless appeal. Paired with black or white inserts and matching brushed steel rockers.
