Data sheet: XDBR1S
Data sheet

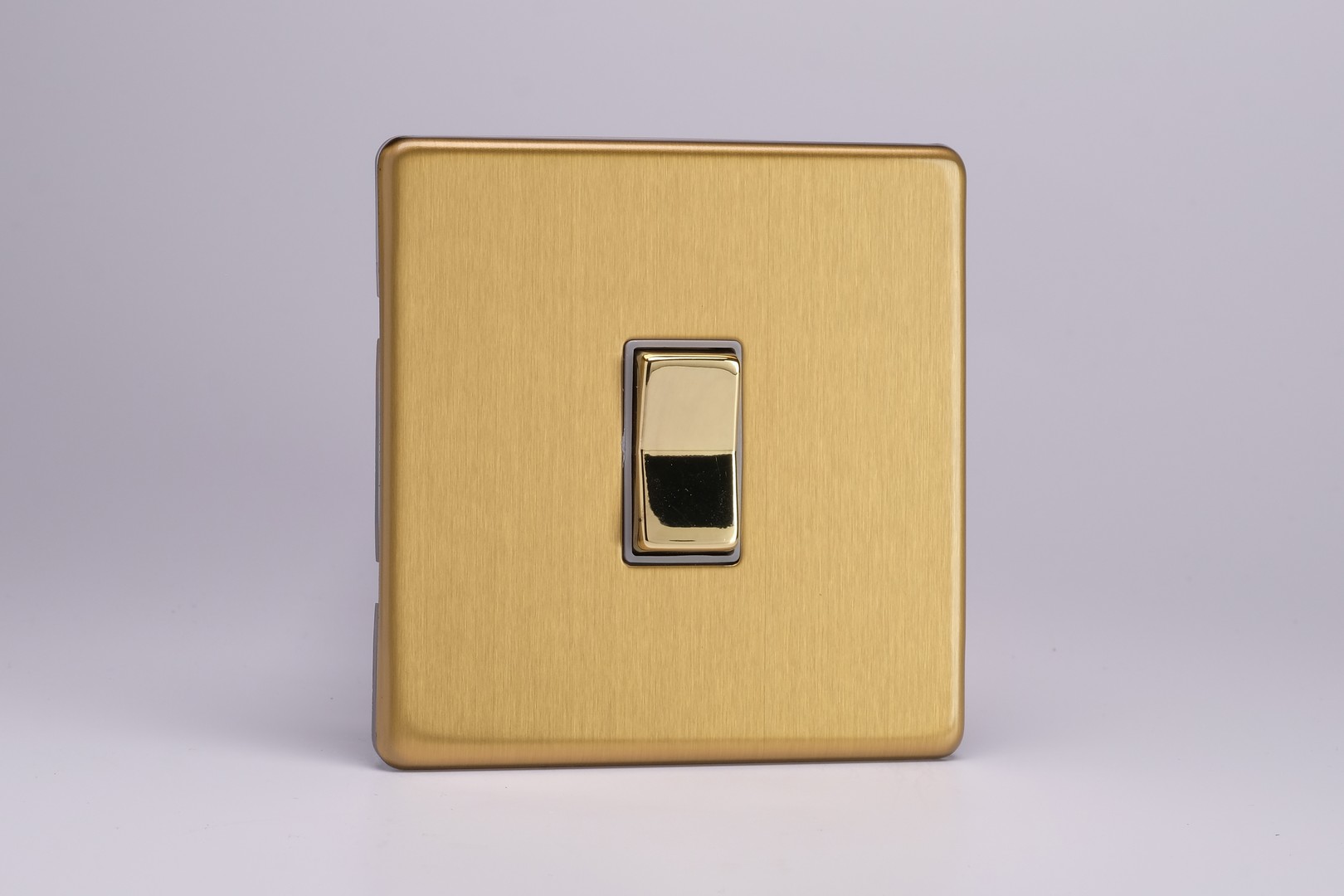

XDBR1S 1-Gang 10A Centre-Off Retractive Switch
Single 1-Way Push Retractive Switch
Product features
- Push up or down and it springs back to the centre, ready for the next press
- For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
- Install a V-Pro Micro Dual Push Control In-Line Dimmer Pack behind the switch for up and down dimming with nothing on the wall but the switch itself.
- 10A rated
- Screwless low profile faceplate, just 4mm deep with no visible fixings, fits a 25mm back box
Product
- Product code
- XDBR1S
- Category
- Retractive Switches
- Range
- Screwless
- Finish
- Brushed Brass
- Insert / knob colour
- Brass Button
- Barcode
- 5021575007046
Size and fitting
- Dimensions
- 86x86x23mm
- Faceplate depth
- 4mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 16.7mm
- Recommended back box depth
- 25mm
- Net weight
- 116g
- Gross weight
- 118g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 6A
- Maximum current rating
- 6A

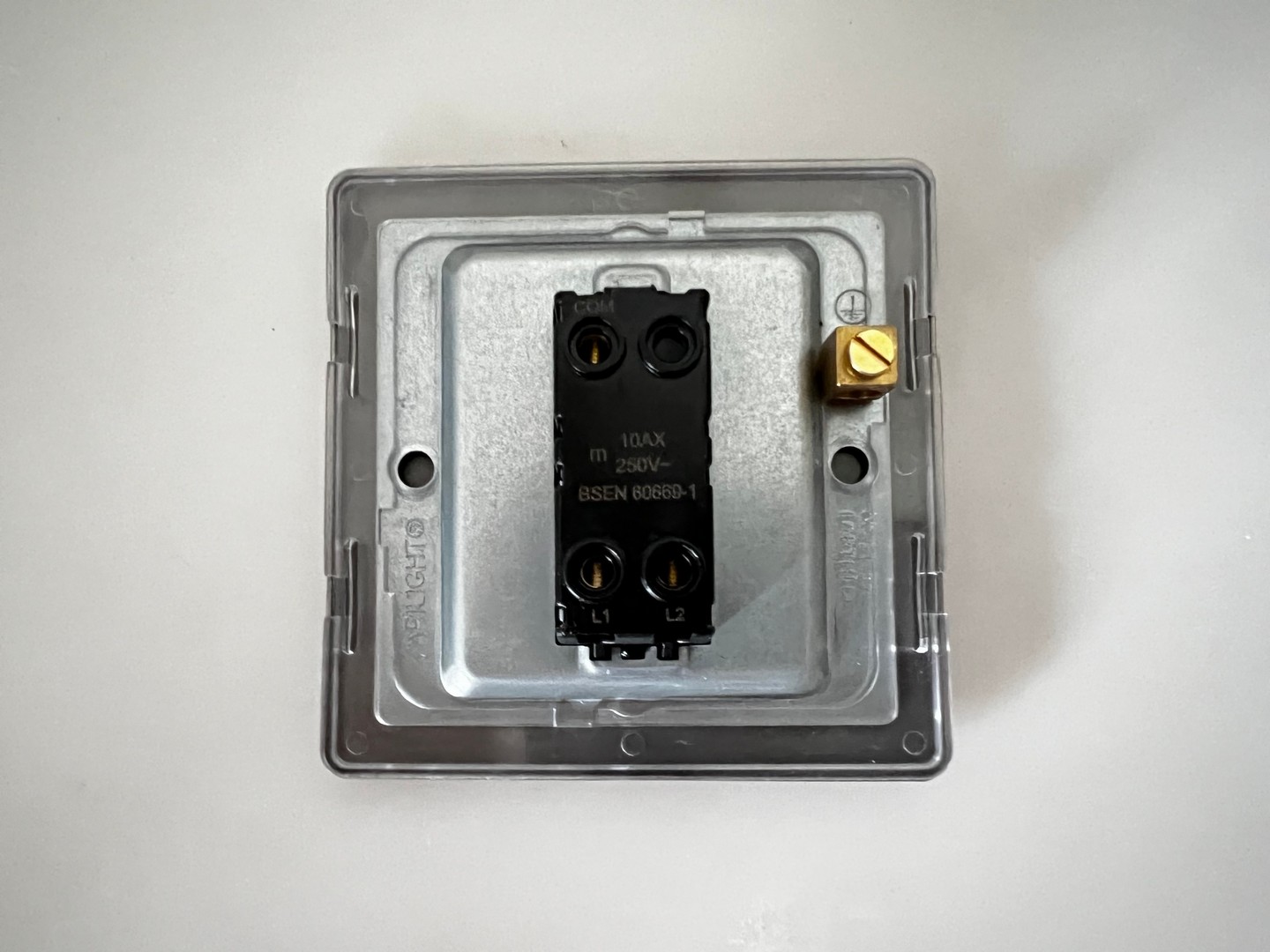

- Terminal (Live)
- 3mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS EN 61058-1
- Commodity code
- 85365011
Screwless collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look.
Brushed Brass finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts are available, paired with polished brass rockers for an added touch of class.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
