Data sheet: XBKR1B
Data sheet

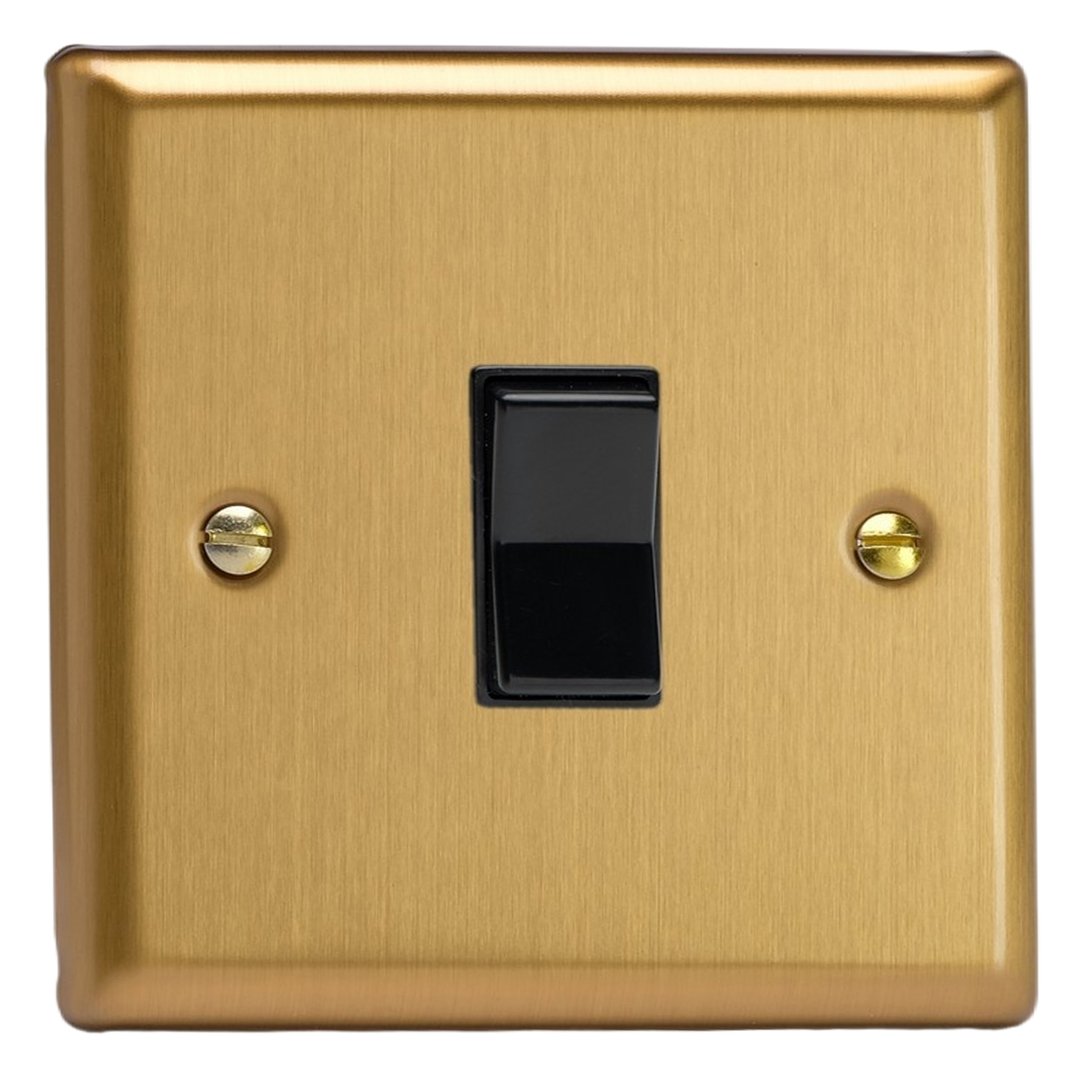

XBKR1B 1-Gang 10A Centre-Off Retractive Switch
Single 1-Way Push Retractive Switch
Product features
- Push up or down and it springs back to the centre, ready for the next press
- For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
- Install a V-Pro Micro Dual Push Control In-Line Dimmer Pack behind the switch for up and down dimming with nothing on the wall but the switch itself.
- 10A rated
- Bevel-edge faceplate, 8mm deep with brass screws, fits a 16mm back box
Product
- Product code
- XBKR1B
- Category
- Rocker Switches
- Range
- Classic
- Finish
- Brushed Brass
- Insert / knob colour
- Black Rocker
- Barcode
- 5021575001228
Size and fitting

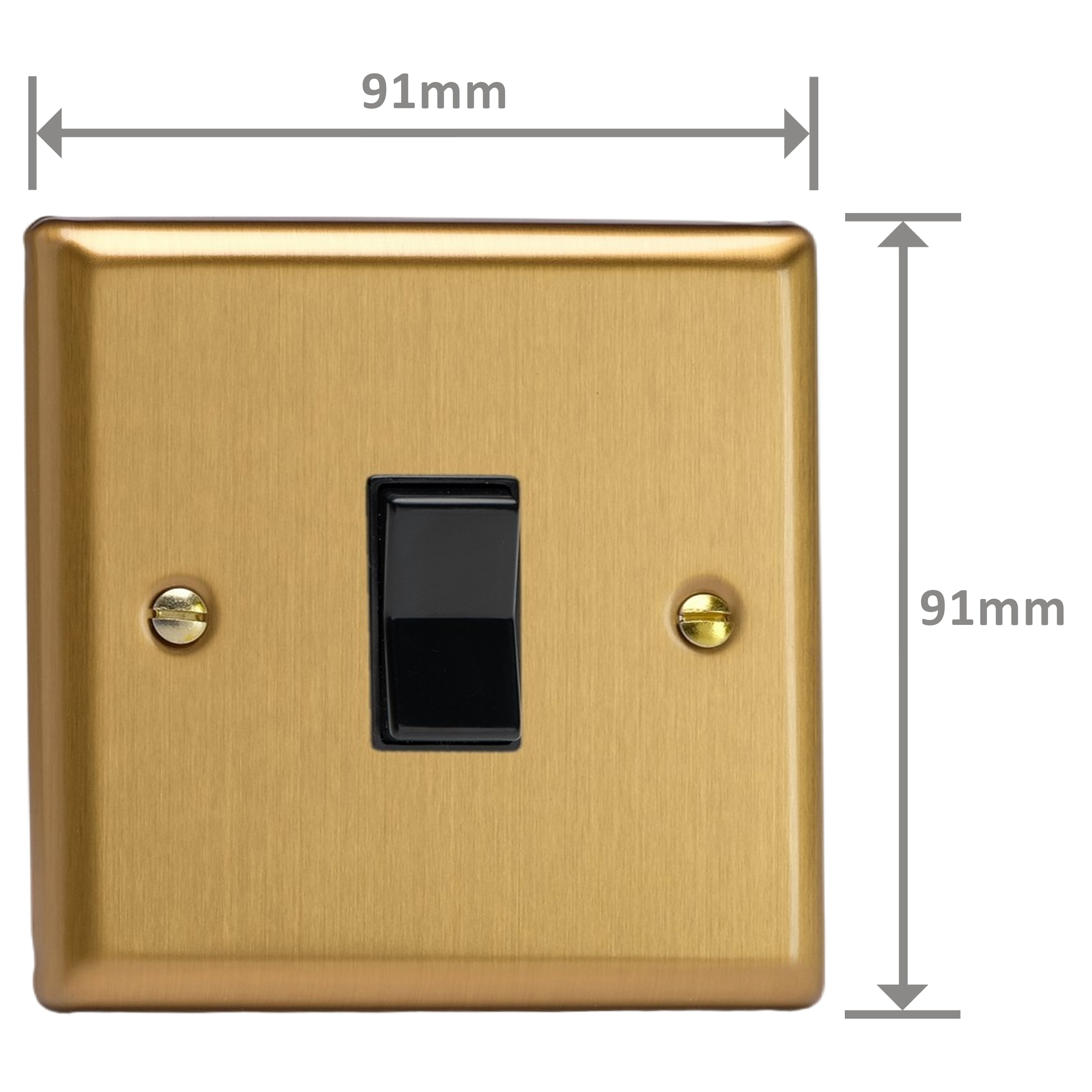

- Dimensions
- 91x91x25mm
- Faceplate depth
- 8mm
- Fixing centres
- 60.3mm
- Depth from mounting face
- 12.9mm
- Recommended back box depth
- 16mm
- Net weight
- 96g
- Gross weight
- 98g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 10A
- Maximum current rating
- 10A
- Terminal (Live)
- 3.3mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS EN 60669-1
- Commodity code
- 85365007
Classic collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.
Brushed Brass finish
The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. Black or white inserts and rockers are available, or choose polished brass rockers for an added touch of class.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
