Data Sheet

Product Code: XGKR1B

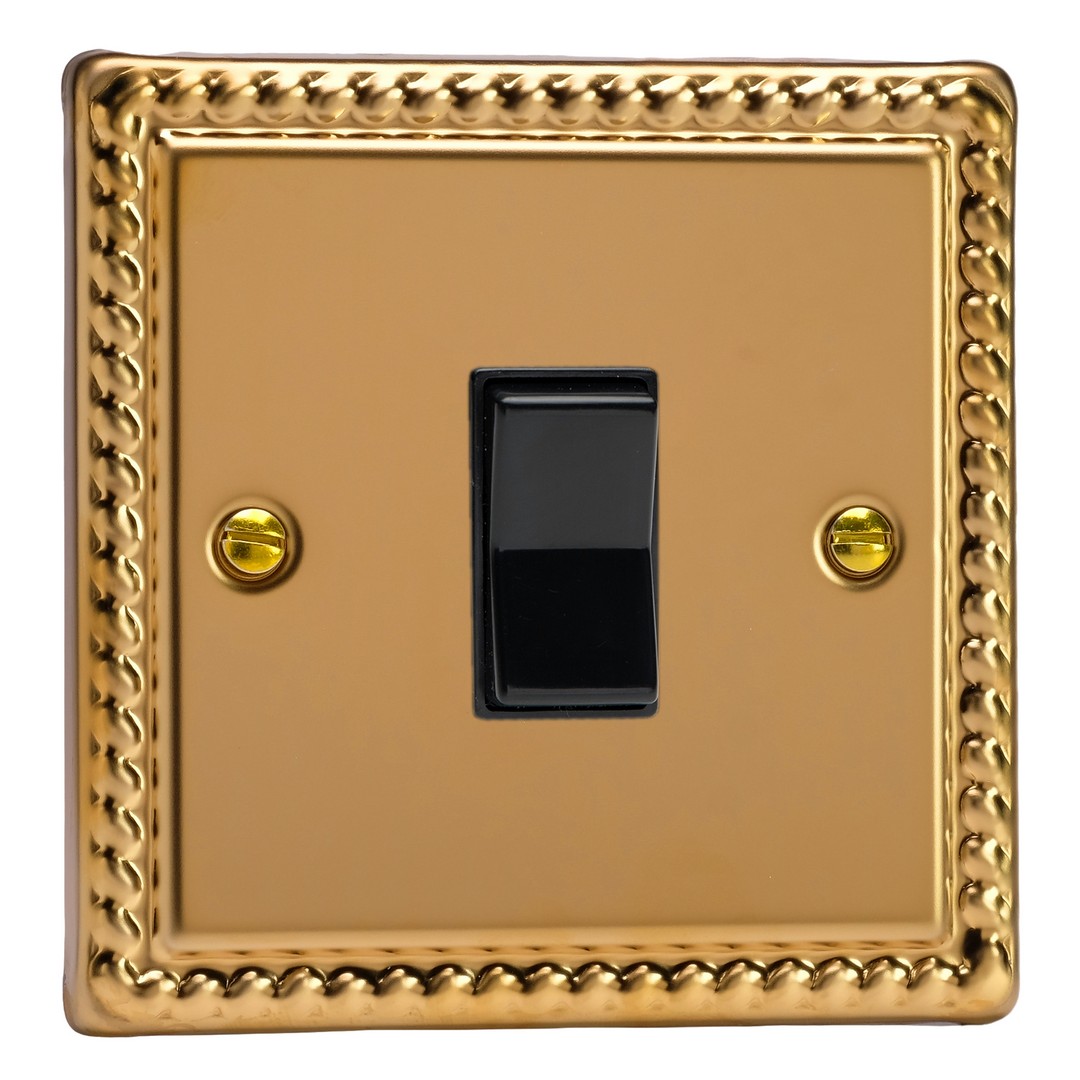

Product Description: 1-Gang 10A Centre-Off Retractive Switch

Range: Classic

Finish: Georgian Brass

Product Category: Rocker Switches

Insert/Knob Colour: Black Rocker

Barcode: 5021575020922

Dimensions: 95x95x25mm

Faceplate Depth: 7mm

Net Weight: 96g

Gross Weight: 98g

Fixing Centres: 60.3mm

Depth from Mounting Face: 12.2mm

Recommended Back Box Depth: 16mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 10A

Maximum Current Rating: 10A

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  Push up or down and it springs back to the centre, ready for the next press

  For blinds, doorbells and anything that needs a momentary signal rather than a permanent on

  Install a V-Pro Micro Dual Push Control In-Line Dimmer Pack behind the switch for up and down dimming with nothing on the wall but the switch itself.

  10A rated

  Bevel-edge faceplate, 7mm deep with brass screws, fits a 16mm back box

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
