Data Sheet

Product Code: XG5U2B

Product Description: 2-Gang 13A Unswitched Socket with 2 x 12W Shared USB A Charging Ports

Range: Classic

Finish: Georgian Brass

Product Category: Sockets with USB A Charging

Insert/Knob Colour: Black Insert

Barcode: 5021575752410

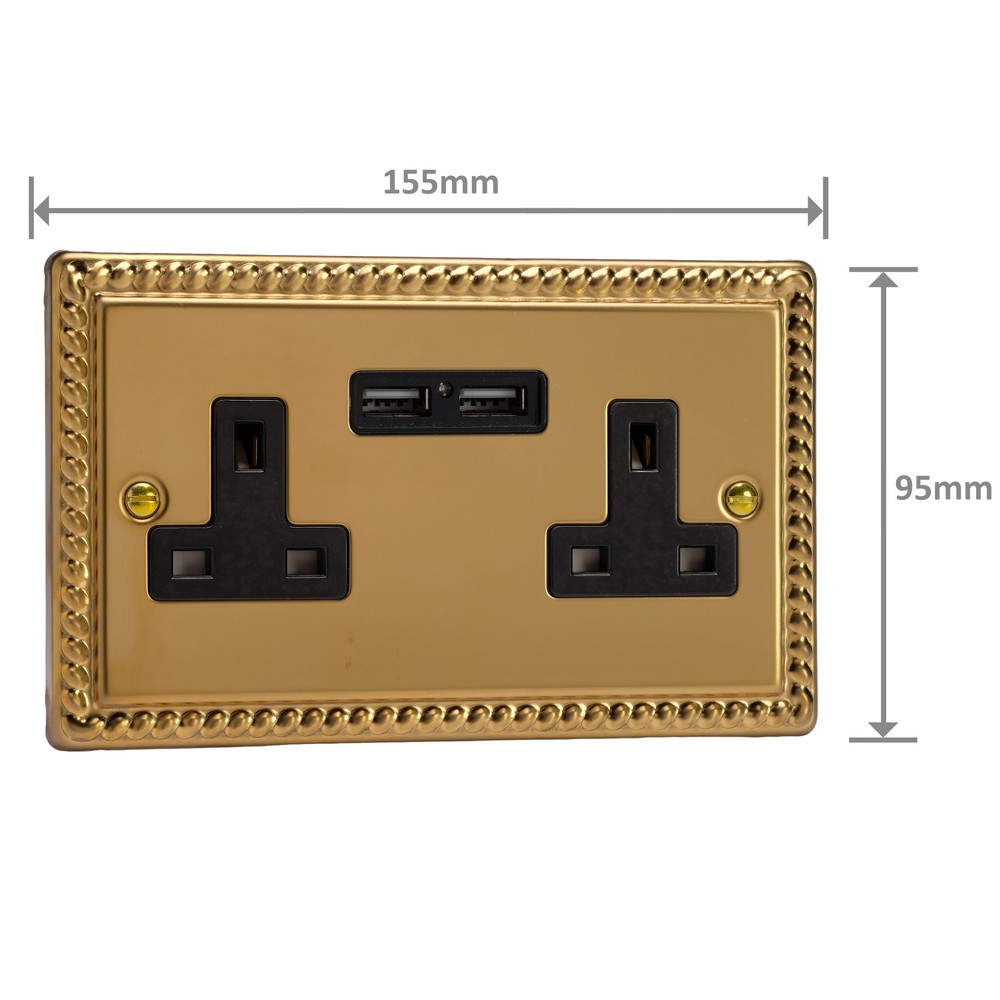

Dimensions: 95x155x28mm

Faceplate Depth: 7mm

Net Weight: 240g

Gross Weight: 242g

Fixing Centres: 120.6mm

Depth from Mounting Face: 17.8mm

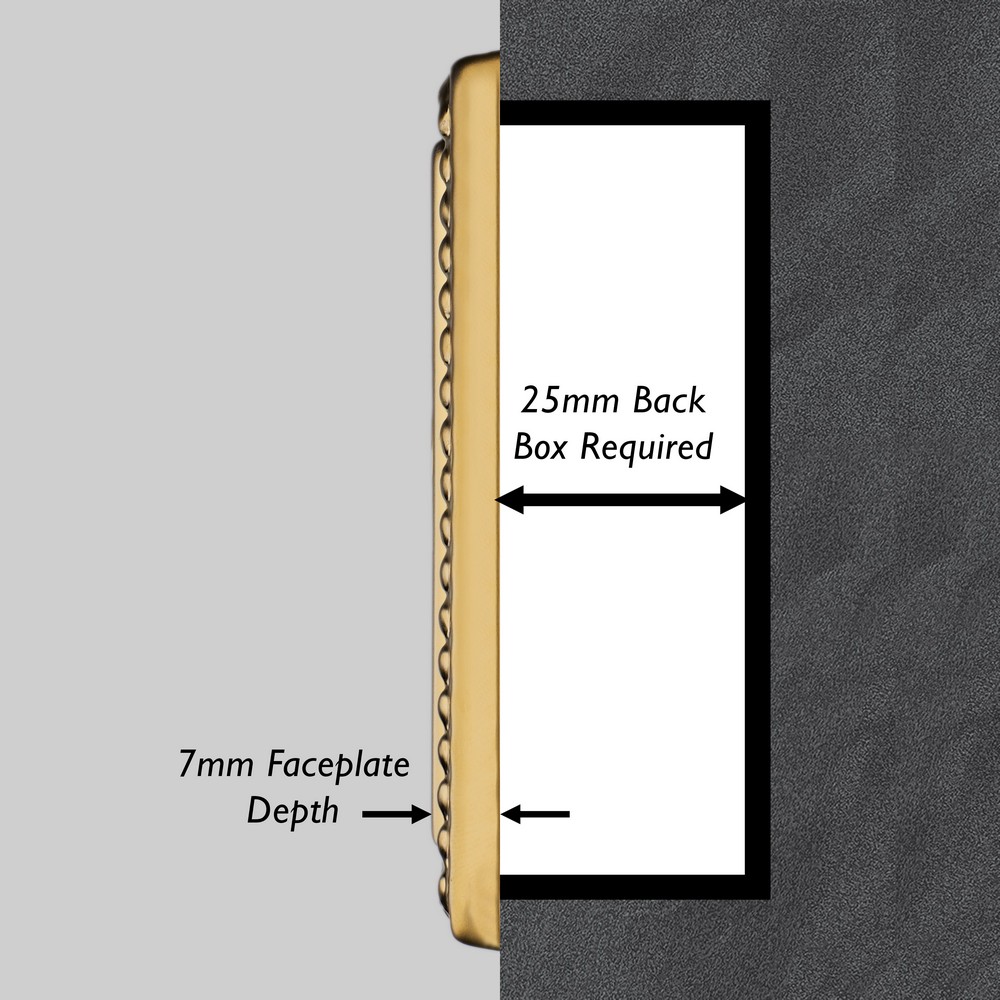

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 13A

Maximum Current Rating: 13A

Terminal (Live) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Neutral) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Terminal (Earth) Diameter: 4.8mm; Capacity: 4 x 2.5mm²

Intended Applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Please note recommended back box depth relies on efficient cable routing.. Product Must Be Earthed.

Applicable Safety Standard: BS 1363-2

Commodity Code: 85366990

Declaration of Conformity

Product Features

  2 x 12W shared USB-A charging ports

  Charges phones, tablets, cameras and more, no plug adaptor needed

  Both sockets stay free for other appliances

  Unswitched, for appliances that should never be switched off by mistake

  Dual earth terminals for a secure earth connection

  Bevel-edge faceplate, 7mm deep with brass screws, fits a 25mm back box

Classic Collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

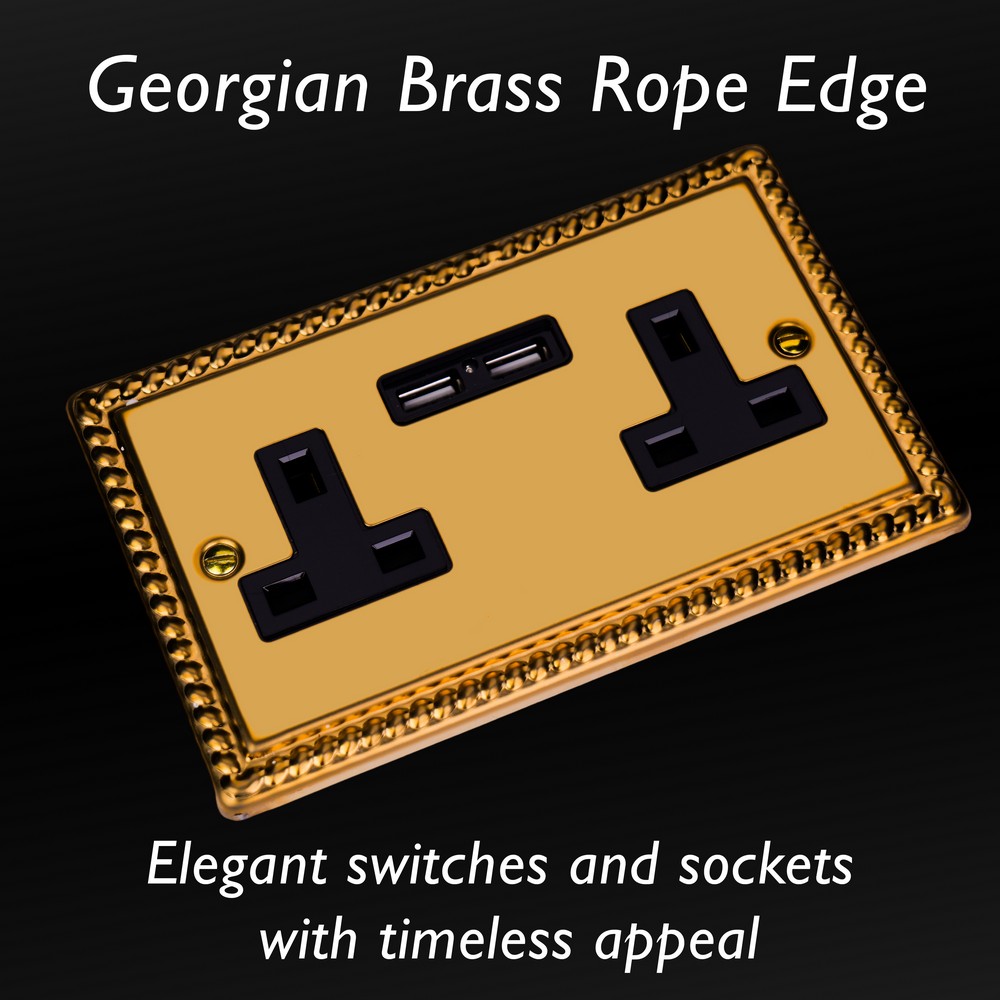

Georgian Brass Finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
