Data sheet: XG93D
Data sheet
XG93D 3-Gang 10A 1- or 2-Way Rocker Switch (Twin Plate)
Triple Rocker Light Switch 2-Way Twin Plate
Product features
- 1- or 2-Way switching
- Suitable for controlling both mains and low voltage lighting
- 10A rated
- Firm, positive switching action
- Bevel-edge faceplate, 7mm deep with brass screws, fits a 16mm back box
Product
- Product code
- XG93D
- Category
- Rocker Switches
- Range
- Classic
- Finish
- Georgian Brass
- Insert / knob colour
- Brass Rockers
- Barcode
- 5021575751550
Size and fitting

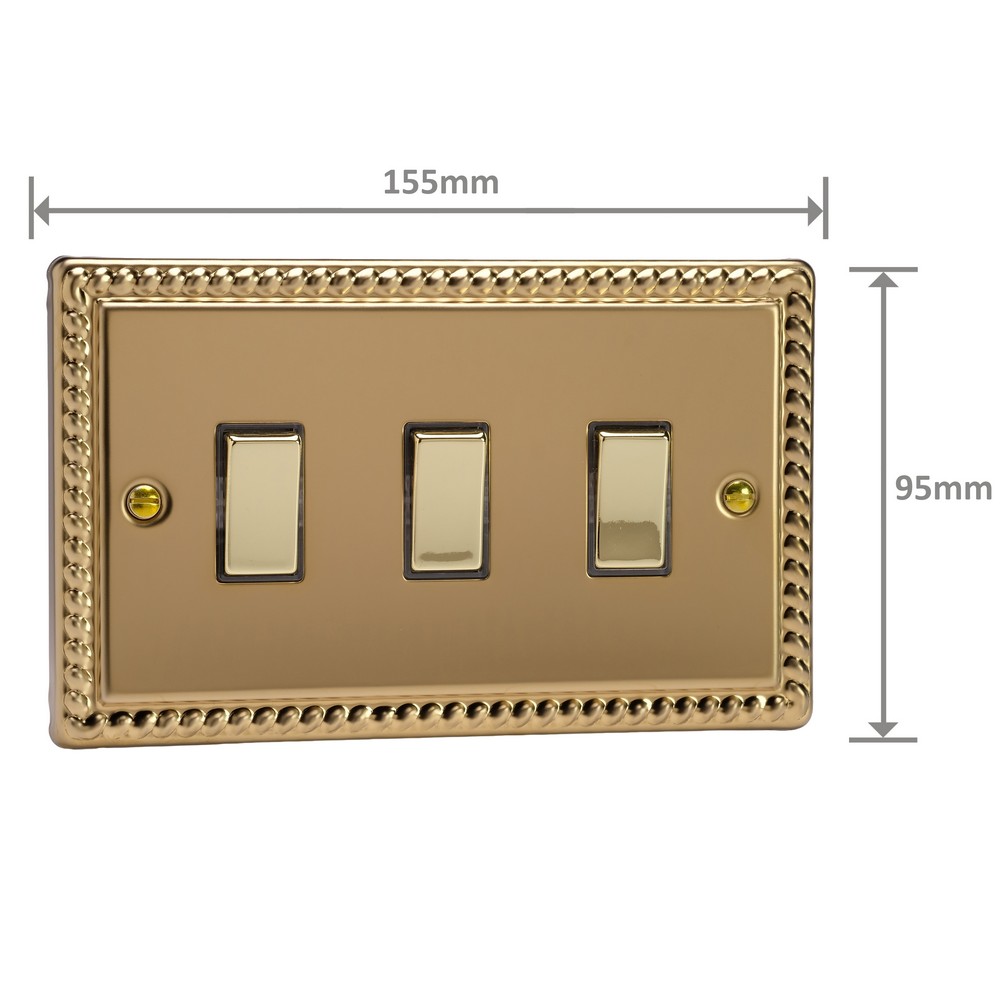

- Dimensions
- 95x155x25mm
- Faceplate depth
- 7mm
- Fixing centres
- 120.6mm
- Depth from mounting face
- 11.9mm
- Recommended back box depth
- 16mm
- Net weight
- 200g
- Gross weight
- 202g
Electrical
- Operating voltage
- 230V 50Hz
- Maximum load rating
- 10A
- Maximum current rating
- 10A
- Terminal (Live)
- 3.3mm, capacity 3 x 1.5mm²
- Terminal (Earth)
- 3.3mm, capacity 3 x 1.5mm²
Safety and compliance
- Intended applications
- Indoor Use Only. Domestic lighting circuits. Do not use masking tape on any decorative products, or install on damp plaster.
- Safety advice
- Product Must Be Earthed.
- Applicable safety standard
- BS EN 60669-1
- Commodity code
- 85365007
Classic collection
The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

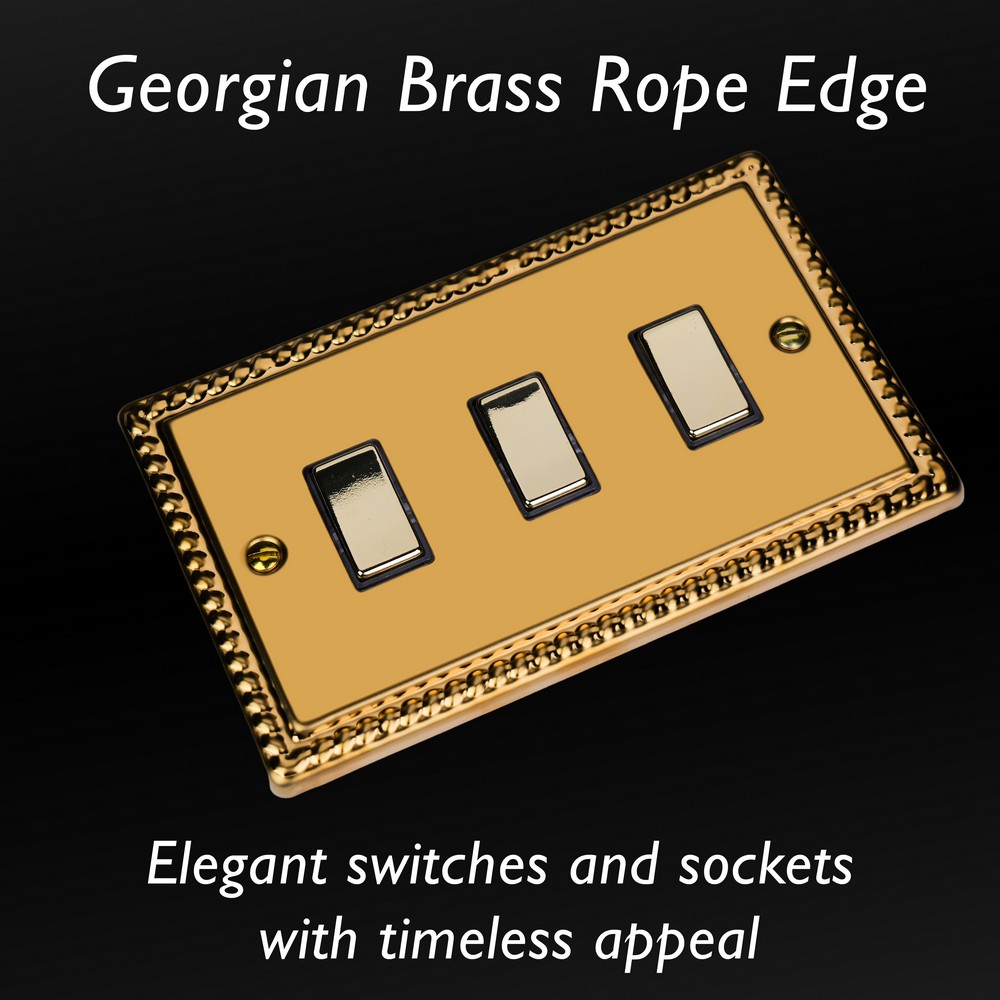

Georgian Brass finish
Polished Brass remains one of the most versatile finishes and is paired here with Georgian rope edged faceplates for an enduringly classical appeal.
All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 17th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
