Data sheet: XT5UACDB

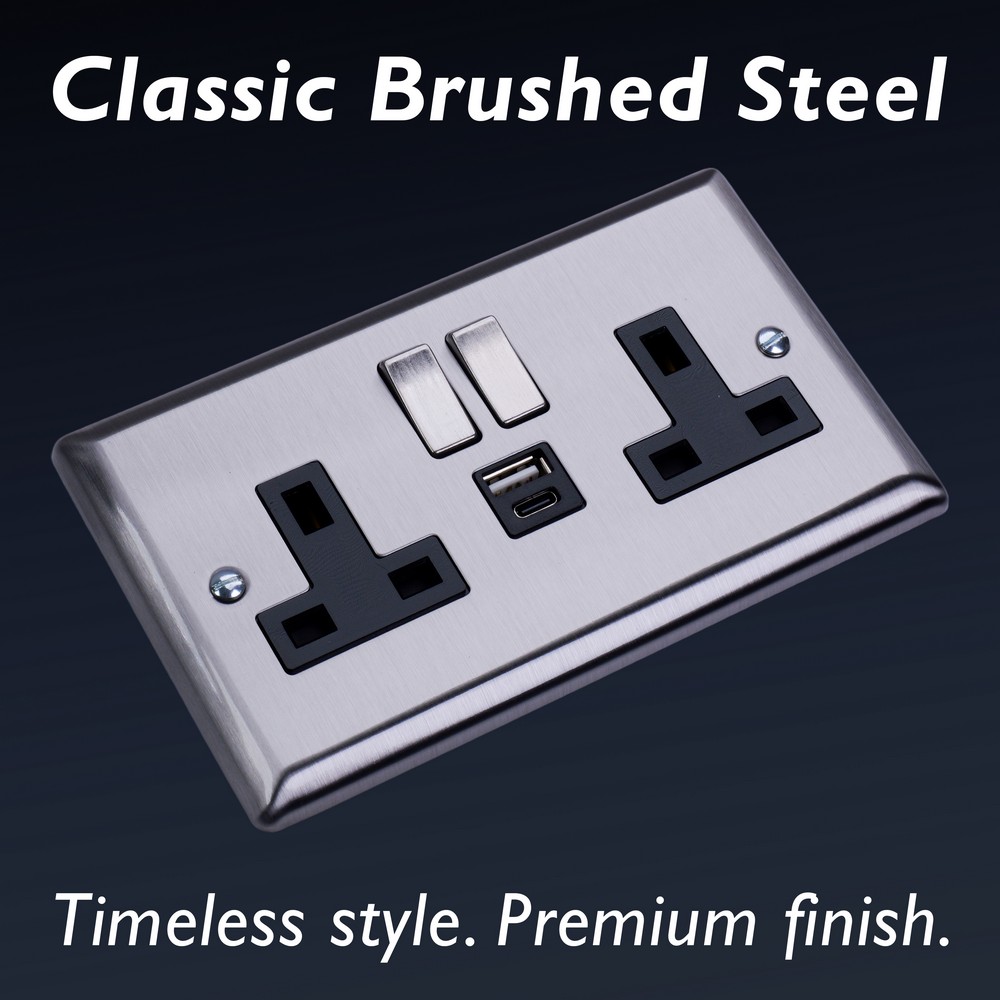

Double Socket with 20W Shared USB A & C Charging Ports, Classic Brushed Steel (XT5UACDB)

Data sheet

XT5UACDB Double Socket with 20W Shared USB A & C Charging Ports

Range Classic Finish Brushed Steel

Product features

20W shared between the USB-A and USB-C ports
Power Delivery 3.0 and Qualcomm Quick Charge 3.0 fast charging
Use any USB-A or USB-C cable
Both sockets stay free for other appliances
Able to switch off for added safety and power saving
Dual earth terminals for a secure earth connection
Bevel-edge faceplate, 8mm deep with chrome screws, fits a 25mm back box

Product

Product code: XT5UACDB
Category: Sockets with USB A Charging
Range: Classic
Finish: Brushed Steel
Insert / knob colour: Brushed Steel/Black Insert
Barcode: 5021575036022

Size and fitting

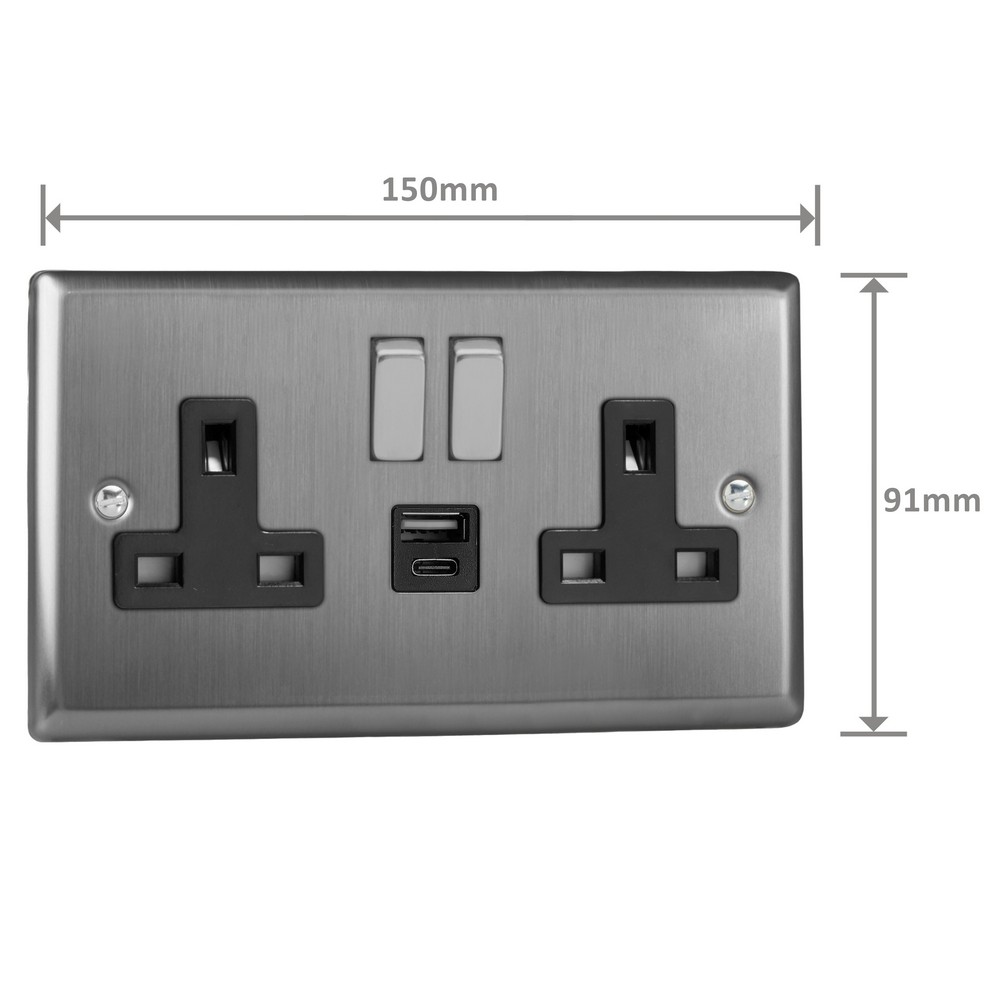

Dimensions: 91x150x31mm
Faceplate depth: 8mm
Fixing centres: 120.6mm
Depth from mounting face: 18.5mm
Recommended back box depth: 25mm
Net weight: 200g
Gross weight: 202g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: USB: 20W
Maximum current rating: 13A
Terminal (Live): 4.8mm, capacity 4 x 2.5mm²
Terminal (Neutral): 4.8mm, capacity 4 x 2.5mm²
Terminal (Earth): 4.8mm, capacity 4 x 2.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic power supply. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Please note recommended back box depth relies on efficient cable routing. Product Must Be Earthed.
Applicable safety standard: BS 1363-2
Commodity code: 85366990

Declaration of Conformity

Classic collection

The Classic range is a contemporary take on a raised profile faceplate. The bevel-edge design is a timeless style, which will pair beautifully with any interior.

Brushed Steel finish

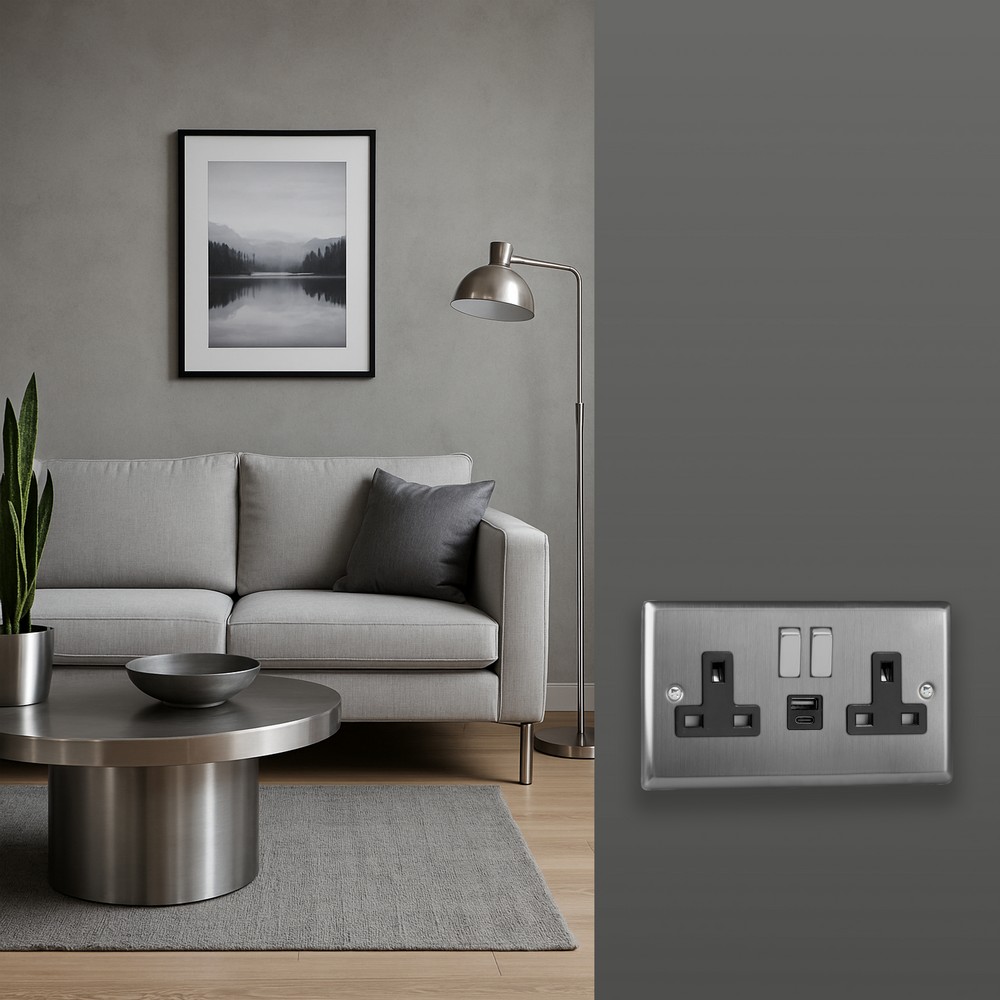

With its clean, understated style, Brushed Steel brings effortless sophistication to any room, and is a finish chosen by designers for its versatility. Black or white inserts and rockers are available, or choose matching brushed steel rockers.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 21st October 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
