Data sheet: XDEKR1W.BB

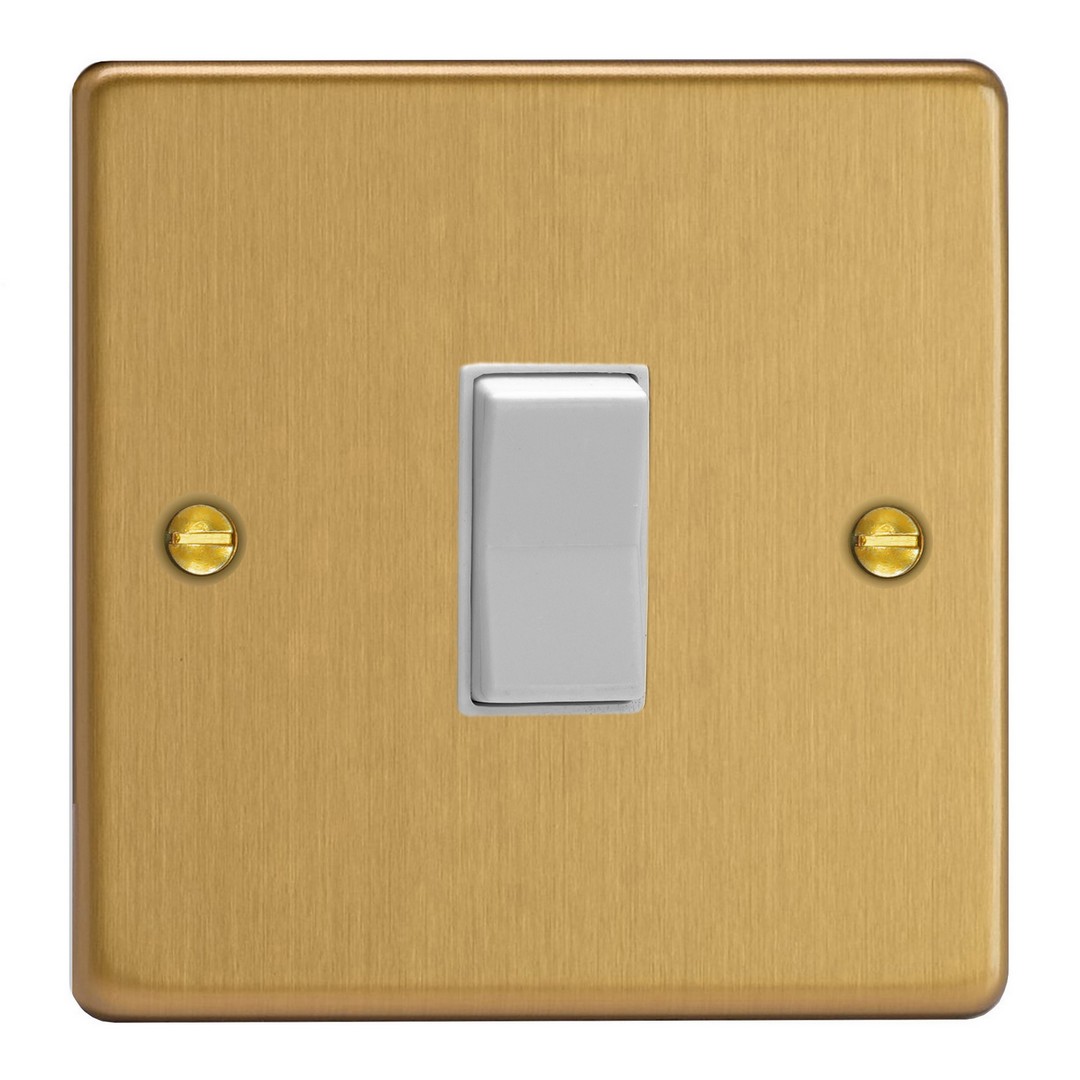

1-Gang 10A Centre-Off Retractive Switch, Essential Brushed Brass (XDEKR1W.BB)

Data sheet

XDEKR1W.BB 1-Gang 10A Centre-Off Retractive Switch

Name: 1-Gang 10A Centre-Off Retractive Switch
Brand: VARILIGHT
SKU: XDEKR1W.BB

Single Centre-Off Retractive Switch

Range Essential Finish Brushed Brass

Product features

Push up or down and it springs back to the centre, ready for the next press
For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
Install a V-Pro Micro Dual Push Control In-Line Dimmer Pack behind the switch for up and down dimming with nothing on the wall but the switch itself.
10A rated
Low-profile faceplate, just 4mm deep with brass screws, fits a 25mm back box

Product

Product code: XDEKR1W.BB
Category: Rocker Switches
Range: Essential
Finish: Brushed Brass
Insert / knob colour: White Rocker
Barcode: 5021575017571

Size and fitting

Dimensions: 86x86x23mm
Faceplate depth: 4mm
Fixing centres: 60.3mm
Depth from mounting face: 18.4mm
Recommended back box depth: 25mm
Net weight: 116g
Gross weight: 118g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 10A
Maximum current rating: 10A
Terminal (Live): 3.3mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 60669-1
Commodity code: 85365007

Declaration of Conformity

Essential collection

The Essential Collection is the go-to range for unbeatable value. Its sleek, low-profile faceplate features clean lines that add a modern, refined touch to any space, while the visible fixing screws create a simple yet practical aesthetic. The Essential Collection delivers on both affordability and quality, making it the perfect solution for any interior.

Brushed Brass finish

The Brushed Brass finish combines vintage style with a modern twist to suit both a traditional or modern decor. It is offered with either black or white inserts and features matching brass fixing screws.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
