Data Sheet

Product Code: XSKR1W

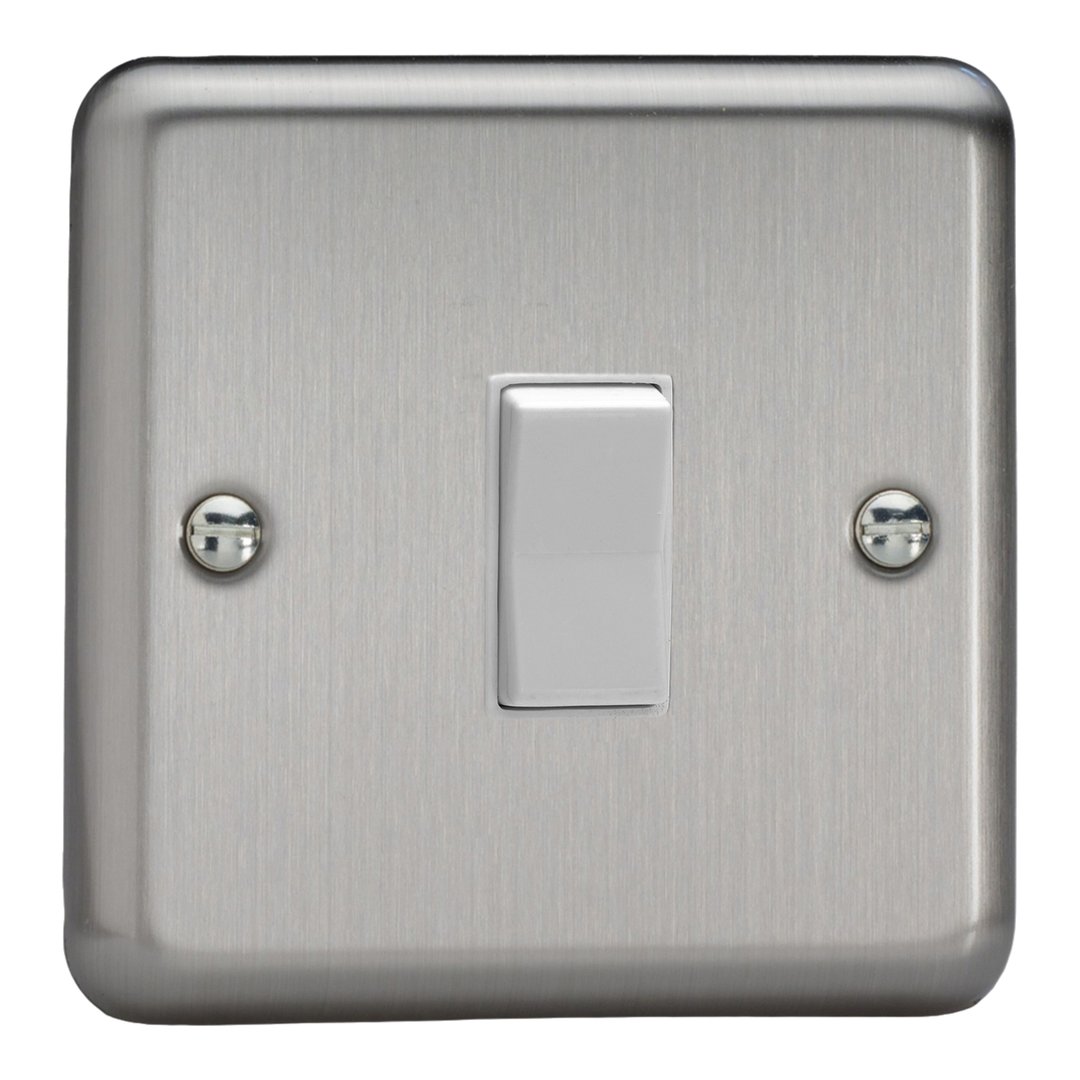

Product Description: 1-Gang 10A Centre-Off Retractive Switch

Range: Value

Finish: Matt Chrome

Product Category: Rocker Switches

Insert/Knob Colour: White Rocker

Barcode: 5021575022841

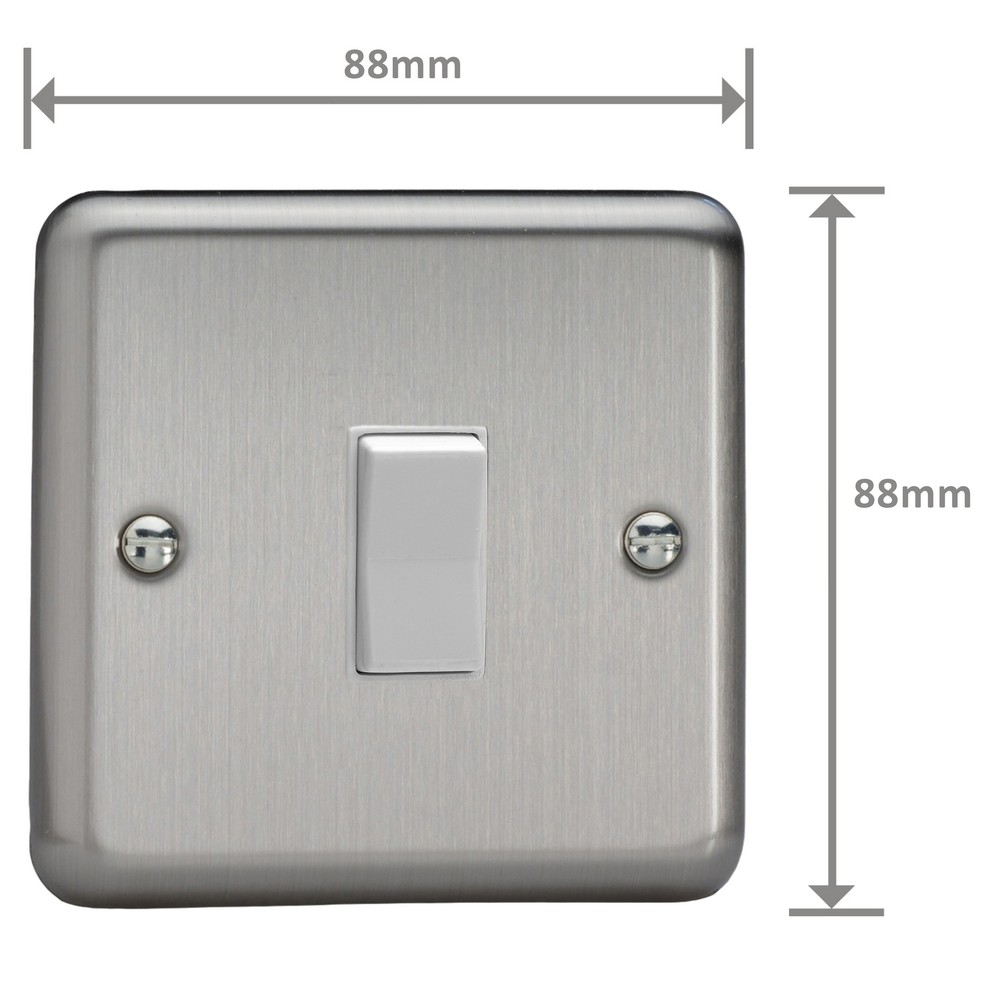

Dimensions: 88x88x25mm

Faceplate Depth: 7mm

Net Weight: 96g

Gross Weight: 98g

Fixing Centres: 60.3mm

Depth from Mounting Face: 10.8mm

Recommended Back Box Depth: 16mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 10A

Maximum Current Rating: 10A

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  Retractive, push to make switch

  For use with blinds, bells and applications where a momentary electric signal is required

  Curved edge faceplate

  Pair with our V-Pro Micro Dual Push Control In-Line Dimmer Pack to enable intelligent up & down dimming functionality via a sleek, minimalist interface.

Value Collection
The Value Range is a practical take on a raised profile faceplate, offering trusted VARILIGHT quality at an accessible price. Designed for outstanding value, each plate is produced to our exacting standards, combining durability with timeless simplicity.

Matt Chrome Finish
Matt Chrome offers unbeatable value for those seeking a beautiful decorative finish at a great price point. Choose between black, white or matching metal rockers. Varilight decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
