Data Sheet

Product Code: XDYBR1IS.PD

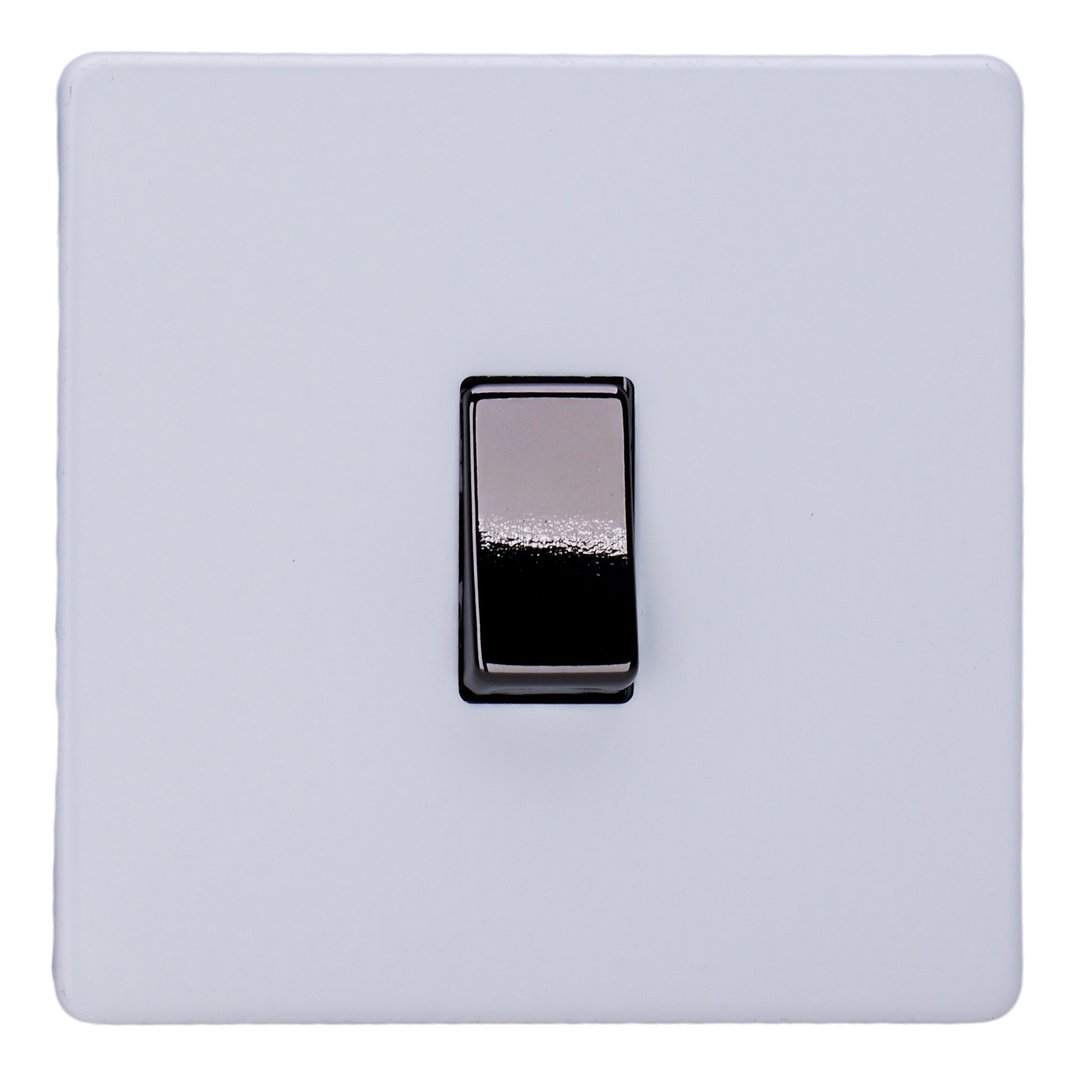

Product Description: 1-Gang 10A Retractive Switch

Range: Screwless

Finish: Primed

Product Category: Rocker Switches

Insert/Knob Colour: Iridium Rocker

Barcode: 5021575034776

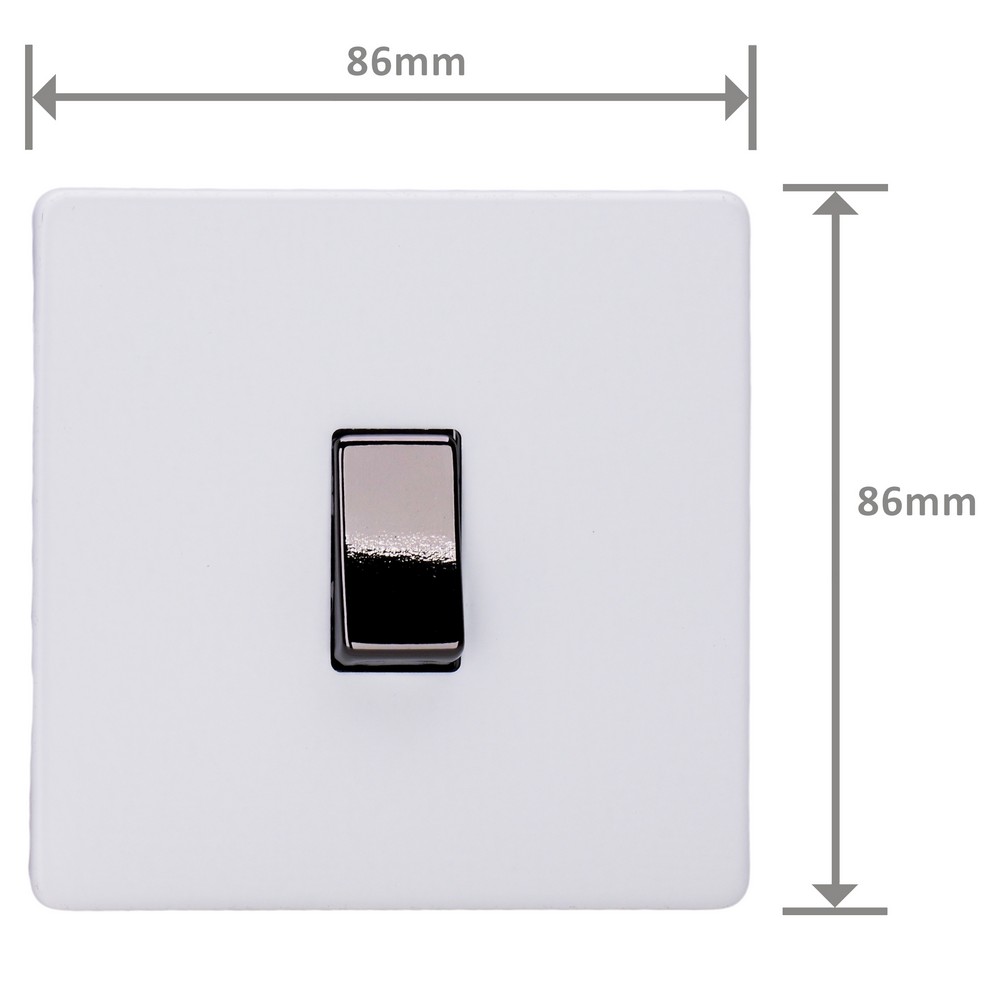

Dimensions: 86x86x23mm

Faceplate Depth: 4mm

Net Weight: 116g

Gross Weight: 118g

Fixing Centres: 60.3mm

Depth from Mounting Face: 18.4mm

Recommended Back Box Depth: 25mm

Operating Voltage: 230v 50Hz

Maximum Load Rating: 10A

Maximum Current Rating: 10A

Terminal (Live) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Terminal (Earth) Diameter: 3.3mm; Capacity: 3 x 1.5mm²

Intended Applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any Decorative products, or install on damp plaster.

Safety Advice: Product Must Be Earthed.

Applicable Safety Standard: BS EN 60669-1

Commodity Code: 85365007

Declaration of Conformity

Product Features

  Retractive, push to make switch

  For use with blinds, bells and applications where a momentary electric signal is required

  Sleek, low-profile screwless faceplate

  Pair with our V-Pro Micro Push Control In-Line Dimmer Pack to enable intelligent dimming functionality with a sleek, minimalist interface.

Screwless Collection
Screwless Low Profile: minimalist design with clip-on faceplates and hidden fixings for a smooth, modern look. The Screwless Metal faceplates are expertly manufactured in the UK to the highest standard.

Primed Finish
Primed metal faceplates are supplied ready to paint, so that customers can choose colours to coordinate perfectly with their decor, creating a completely unique product that stands out from the crowd. Varilight Decorative wiring accessories are British made and covered by the Varilight lifetime guarantee.
