Data sheet: XYKR1W.RP

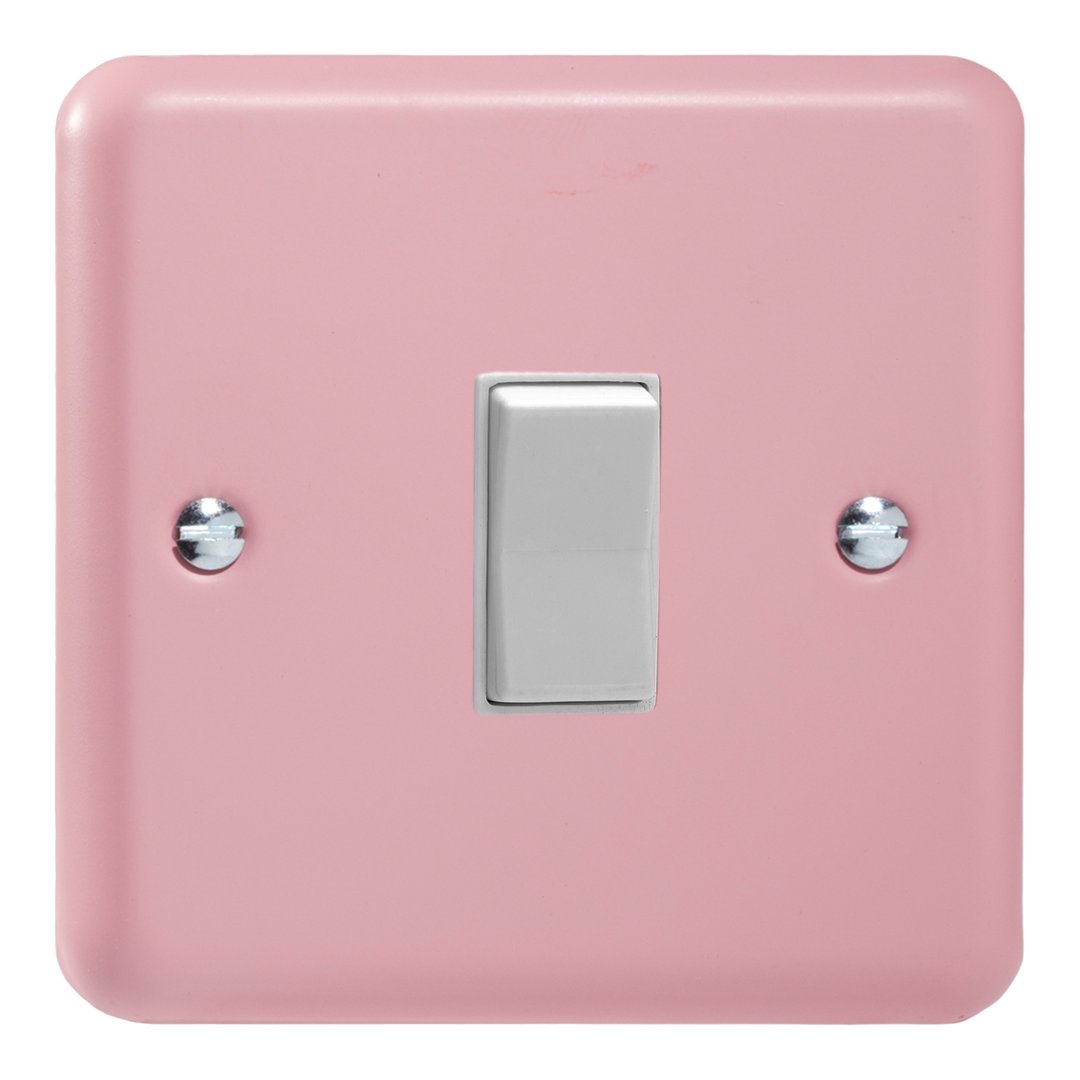

1-Gang 10A Centre-Off Retractive Switch, Lily Rose Pink (XYKR1W.RP)

Data sheet

XYKR1W.RP 1-Gang 10A Centre-Off Retractive Switch

Name: 1-Gang 10A Centre-Off Retractive Switch
Brand: VARILIGHT
SKU: XYKR1W.RP

Single Centre-Off Retractive Switch

Range Lily Finish Rose Pink

Product features

Push up or down and it springs back to the centre, ready for the next press
For blinds, doorbells and anything that needs a momentary signal rather than a permanent on
Install a V-Pro Micro Dual Push Control In-Line Dimmer Pack behind the switch for up and down dimming with nothing on the wall but the switch itself.
10A rated
Rounded-edge faceplate, 7mm deep with chrome screws, fits a 16mm back box

Product

Product code: XYKR1W.RP
Category: Rocker Switches
Range: Lily
Finish: Rose Pink
Insert / knob colour: White Rocker
Barcode: 5021575033892

Size and fitting

Dimensions: 88x88x25mm
Faceplate depth: 7mm
Fixing centres: 60.3mm
Depth from mounting face: 10.8mm
Recommended back box depth: 16mm
Net weight: 96g
Gross weight: 98g

Electrical

Operating voltage: 230V 50Hz
Maximum load rating: 10A
Maximum current rating: 10A
Terminal (Live): 3.3mm, capacity 3 x 1.5mm²
Terminal (Earth): 3.3mm, capacity 3 x 1.5mm²

Safety and compliance

Intended applications: Indoor Use Only. Domestic electrical circuits. Do not use masking tape on any decorative products, or install on damp plaster.
Safety advice: Product Must Be Earthed.
Applicable safety standard: BS EN 60669-1
Commodity code: 85365007

Declaration of Conformity

Lily collection

Add a splash of colour with The Lily range to brighten up any interior. The soft rounded edge of the metal faceplate, combined with a pastel or primary colour, presents a modern take on a retro style.

Rose Pink finish

Playful, blush-toned Rose Pink turns a light switch into a little moment of joy. A favourite for bedrooms and nurseries, paired with white inserts and chrome screws.

All information is subject to change without notice. Errors and omissions excepted. Images are for illustrative purposes only. Individual features and colours may vary. Refer to date of issue to identify latest version.
Date of issue: 11th November 2026. © Doyle & Tratt Products Ltd, Carylls Lea, Faygate, West Sussex, RH12 4SJ, United Kingdom. All rights reserved.
